Creating an archive policy using SMB/CIFS

The Move data to a remote server using SMB/CIFS archive method connects to a share on the target server with Server Message Block protocol. SMB/CIFS is mainly used on Microsoft Windows Networks.

When deployed from the Azure Marketplace, you can use Azure File storage shares in your for Backup and Archive Policies. This is very useful as the quota for the files storage can be changed dynamically, so the cumulative size of the audit trails is not limited to the OS disk size. You can set up this share as a normal SMB shares in your Backup and Archive policies. The parameters for the policy can be obtained from the Azure portal.

CIFS VFS: Unexpected SMB signature
Status code returned 0xc000000d NT_STATUS_INVALID_PARAMETER
CIFS VFS: Send error in SessSetup = -22
CIFS VFS: cifs_mount failed w/return code = -22
CIFS VFS: Server requires packet signing to be enabled in /proc/fs/cifs/SecurityFlags.
CIFS VFS: cifs_mount failed w/return code = -95
CIFS VFS: Server requires packet signing to be enabled in /proc/fs/cifs/SecurityFlags.
CIFS VFS: cifs_mount failed w/return code = -95

1. Navigate to Policies > Backup & Archive/Cleanup and click in the Archive/Cleanup policies section to create a new archive policy.

2. Enter a name for the archive policy.

3. Enter the time when the archive process should start into the Start time field in HH:MM format (for example 23:00).

   You can add the start time for additional archive processes.

   Caution: When specifying an additional start time, ensure that the previous archive process finishes before the new archive process starts.

4. To archive the data collected on SPS more than once a day, click . You can schedule multiple archive times.

   NOTE: In case an archive process is not finished before the next one would start, the next archive process waits for the previous process to be completed.

5. Fill the Delete data from SPS after field. Data older than this value is archived to the external server.

   NOTE: The archived data is deleted from SPS.

6. Select Move data to a remote server using SMB/CIFS from the Before deleting data from PSM radio buttons.

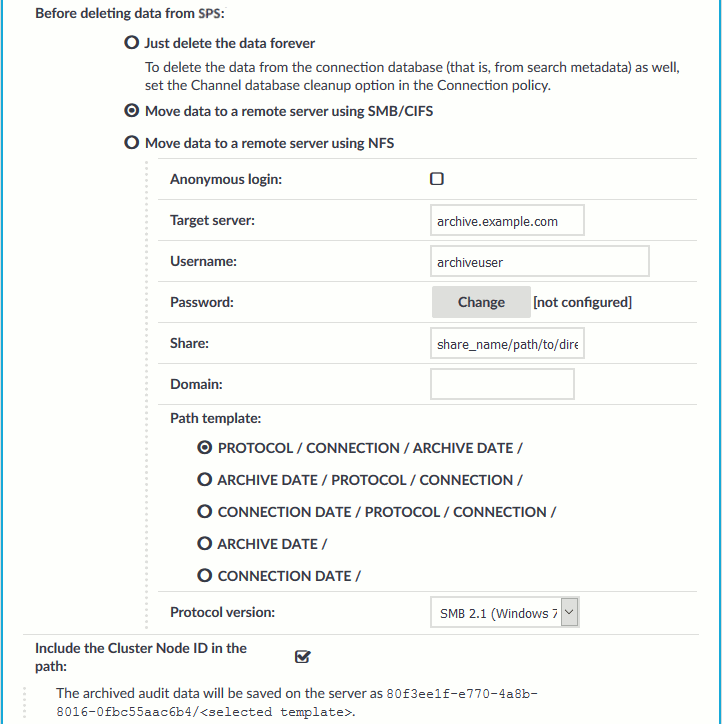

   Figure 20: Policies > Backup & Archive/Cleanup — Configuring cleanup and archiving



7. Enter the username used to log on to the remote server into the Username field, or select the Anonymous login option.

   Usernames can contain space.

8. Enter the password corresponding to the username into the Password field.

   NOTE: One Identity Safeguard for Privileged Sessions (SPS) accepts passwords that are not longer than 150 characters. The following special characters can be used: !"#$%&'()*+,-./:;<=>?@[\]^-`{|}

9. Enter the name and directory path of the share into the Share field. Use the following format:

   share_name/path/to/directory

   You can use backslashes and forward slashes as well.

   SPS saves all data into this directory, automatically creating the subdirectories. Archives of audit-trails are stored in the data, configuration backups in the config subdirectory.

10. Enter the domain name of the target server into the Domain field.

11. Select which SMB protocol to use when SPS connects to the server in the Protocol version field. Servers are usually backwards compatible with earlier protocol versions (for example, a server that supports version 2.1 supports versions 2.0 and 1.0 as well).

12. SPS organizes the audit trails into directories based on the date or the protocol. The subdirectories are created directly into the archive directory. Select one of the following directory structures:

    • Protocol/Connection/Archive Date/

    • Archive Date/Connection/Protocol/

    • Connection Date/Protocol/Connection/

    • Archive Date/

    • Connection Date/

    For example, the Protocol/Connection/Archive Date template will have create subdirectories for the audited protocols (that is, ssh, rdp, telnet, vnc), for the name of the connection policy, and finally, for the date (YEAR-MONTH-DAY in YYYY-MM-DD format).

    NOTE: Connection Date refers to the time the connection started, while Archive Date to the time it was archived. The difference between the two dates depends on the retention time set for the archiving policy.

13. When your SPS instance is a node in a cluster, select Include the Cluster Node ID in the path. This ensures that the ID of the node is included in the path of the relevant directory, which is required to prevent cluster nodes from archiving data to the same location, and so overwriting each other's data and resulting in data loss. In addition, having the node's ID in the directory name also enables easy identification.

    Caution: Hazard of data loss Unchecking Include the Cluster Node ID in the path when your SPS is a node in a cluster can result in data loss if you have configured configuration synchronization across your cluster nodes.

14. To receive e-mail notifications, select the Send notification on errors only or the Send notification on all events option. Notifications are sent to the administrator e-mail address set on the Management tab, and include the list of the files that were backed up.

    NOTE: This e-mail notification is different from the one set on the Alerting & Monitoring tab. This notification is sent to the administrator's e-mail address, while the alerts are sent to the alert e-mail address (see Configuring system monitoring on SPS).

15. Click .

16. To assign the archive policy to the connection you want to archive, see Archiving or cleaning up the collected data.
