One Identity Safeguard for Privileged Passwords 7.0.1 LTS - Administration Guide

Introduction System requirements and versions Using API and PowerShell tools Using the virtual appliance and web management console Cloud deployment considerations Setting up Safeguard for Privileged Passwords for the first time Using the web client Home Privileged access requests Appliance Management
Appliance Backup and Retention Certificates Cluster Enable or Disable Services External Integration Real-Time Reports Safeguard Access Appliance Management Settings
Asset Management
Account Automation Accounts Assets Partitions Discovery Profiles Tags Registered Connectors Custom platforms
Security Policy Management
Access Request Activity Account Groups Application to Application Cloud Assistant Asset Groups Entitlements Linked Accounts User Groups Security Policy Settings
User Management Reports Disaster recovery and clusters Administrator permissions Preparing systems for management Troubleshooting Frequently asked questions Appendix A: Safeguard ports Appendix B: SPP and SPS join guidance Appendix C: Regular Expressions About us

About cluster patching

The following information provides insight into how Safeguard for Privileged Passwords processes access requests during the cluster patching process. It also describes what happens if a cluster member loses power or network connectivity during the patching process.

Service guarantees

During a cluster upgrade, the cluster is split logically into the current version (side A) and the upgrade version (side B). Access request workflow is only enabled on one side at a time. Audit logs run on both sides and merge when the cluster patch completes. Initially, access request workflow is only enabled on side A, and replicas in PatchPending state can perform access requests. As appliances upgrade and move to side B, the access workflow migrates to side B when side B has a majority of the appliances. At this point in the upgrade process, replicas in PatchPending state can no longer perform access requests; however, all of the upgraded cluster members can perform access requests. There is a small window where access request workflow is unavailable as the data migrates from one side to the other.

Failure scenarios

If the primary appliance loses power or loses network connectivity during the upgrade process, it will try to resume the upgrade on restart.

If a replica is disconnected or loses power during an upgrade process, the replica will most likely go into quarantine mode. The primary appliance will skip that appliance and remove it from the cluster. This replica will need to be reset, upgraded, and then re-enrolled into the cluster manually to recover.

Configuration for password and SSH key check out

The policy may be configured such that a password or SSH key reset is required before the password or SSH key can be checked out again. If that is the case, the following can be temporarily configured prior to cluster patching and access request to allow for password or SSH key check out when a password or SSH key has not been reset.

  • The policy can be set to allow multiple accesses.
  • The policy can be set to not require a password or SSH key change at check in.
  • Emergency requests can be allowed so the user does not have to wait for the password or SSH key to be reset.

Using a backup to restore a clustered appliance

In a clustered environment, the objective of a cluster backup is to preserve and allow the restoration of all operational data, including access request workflow, users/accounts, audit logs, and so on. All appliances in a cluster (primary and replicas) can be backed up. However, a backup should only be restored to an appliance in the worst-case scenario where no appliance can be restored using the failover operation.

When a backup is restored to an appliance, the restore on the primary clears the primary's cluster configuration but does not change the replicas' cluster configuration. To avoid issues:

  1. If possible, unjoin the replicas from the cluster prior to a backup restore.

  2. If the primary has been set to encrypt the cluster backups with a password or GPG key, you must have the password or GPG private key to complete the upload and restore operation. For more information, see Backup protection settings.

  3. Upload and restore the backup on the appliance that will be the primary.
  4. If you did not unjoin the replicas prior to the backup restore, perform a cluster reset on each replica so they become standalones then join the replicas back into the cluster.

The appliance is restored as a stand-alone primary appliance in Read-only mode with no replicas. However, all the access request workflow, user/account, and audit log data that existed when the backup was taken is retained. This primary appliance can then be activated and replicas can be joined to recreate a cluster.

To take a backup of a physical appliance

  1. Log in to the appliance as an Appliance Administrator.
  2. Go to Safeguard Backup and Restore:
    • web client: Navigate to Backup and Retention > Safeguard Backup and Restore.

  3. As needed, you can run a backup, set a schedule for the backup, and encrypt the backup for a cluster from the primary. For more information, see Backup and Restore.

To restore a physical appliance from a backup

An Appliance Administrator can restore backups as far back as Safeguard for Privileged Passwords version 6.0.0.12276. Only the data is restored; the running version is not changed.

You cannot restore a backup from a version newer than the one running on the appliance. The restore will fail and a message like the following displays: Restore failed because backup version [version] is newer then the one currently running [version].

The backup version and the running version display in the Activity Center logs that are generated when Safeguard starts, completes, or fails a restore.

NOTE: If you want to use a backup file taken on a different appliance, that backup file must first be downloaded on the appliance where the backup was taken. The downloaded backup file will then need to be uploaded to the appliance that wants to use it before you can use the Restore option.

  1. Log in to the appliance to be restored as an Appliance Administrator.
  2. Go to Safeguard Backup and Restore:
    • web client: Navigate to Backup and Retention > Safeguard Backup and Restore.

  3. Select the backup to be used and click Restore. If a problematic condition is detected, Warning for Restore of Backup displays along with details in the Restore Warnings, Warning X of X message. Click Cancel to stop the restore process and address the warning or click Continue to move to the next warning (if any) or complete the process.

  4. If the backup is protected by a password, the Protected Backup Password dialog displays. Type in the password in the Enter Backup Password text box. For more information, see Backup protection settings.

  5. When the Restore dialog displays, enter the word Restore and click OK. For more information, see Restore a backup.

The appliance is restored as a stand-alone primary appliance in Read-only mode with no replicas.

To rebuild a cluster

  1. Log in to the primary appliance as an Appliance Administrator.
  2. Activate the Read-only primary appliance.
    1. Go to Cluster Management:
      • web client: Navigate to Cluster > Cluster Management.
    2. Select the node to be activated from the cluster view (left pane).
    3. Click Activate.

    4. Confirm the activate operation.

    For more information, see Activating a read-only appliance.

  3. One at a time, enroll the replica appliances to rebuild your cluster.
    1. Go to Cluster Management:
      • web client: Navigate to Cluster > Cluster Management.

    2. Click Add Replica to join a replica appliance to the cluster.

    Once the enroll operation completes, repeat to add your appliances back into the cluster as replicas.

    NOTE: Enrolling a replica can take up to 24 hours depending on the amount of data to be replicated and your network.

    For more information, see Enrolling replicas into a cluster.

Resetting a cluster that has lost consensus

Resetting the cluster configuration allows you to recover a cluster that has lost consensus. If the cluster regains consensus after connectivity is restored, the primary will return to Read-Write mode and password and SSH key check and change will be reenabled. However, if it does not regain consensus, the Appliance Administrator must perform a cluster reset to force-remove nodes from the cluster.

If you are concerned about network issues, reset the cluster with only the new primary appliance. Once the cluster reset operation is complete, enroll appliances one by one to create a new cluster.

 Caution: Resetting a cluster should be your last resort. It is recommended that you restore from a backup rather than reset a cluster.
Cautions

To avoid issues, consider the following cautions.

  • Only reset the cluster if you are certain that consensus has been lost; otherwise, you could introduce a split-brain scenario. (Split-brain scenario is where a cluster gets divided into smaller clusters. Each of these smaller clusters believes it is the only active cluster and may then access the same data which could lead to data corruption.)
  • Ensure that no cluster member has Offline Workflow Mode enabled. For more information, see Offline Workflow (automatic).

To reset a cluster

  1. Go to Cluster:
    • web client: Navigate to Cluster > Cluster Management.

  2. Click the Reset Cluster button.

    The Reset Cluster dialog displays, listing the appliances (primary and replicas) in the cluster.

  3. In the Reset Cluster dialog, select the nodes to be included in the reset operation and use the Set Primary button to designate the primary appliance in the cluster.

    NOTE: Nodes must have an appliance state of Online or Online Read-only and be able to communicate to be included in the reset operation. If you select a node that is not online or not available, you will get an error and the reset operation will fail.

  4. Click Reset Cluster.

  5. In the confirmation dialog, enter the words Reset Cluster and click OK.

    When connected to the new primary appliance, the Configuring Safeguard for Privileged Passwords Appliance progress page displays, showing the steps being performed as part of the maintenance task to reset the cluster.

  6. Once the maintenance tasks have completed, click Restart.
  7. If an appliance is cluster reset as a standalone appliance, it will be placed in StandaloneReadonly mode (not online) and will require activation to avoid a split-brain scenario. For more information, see Activating a read-only appliance.

Once reset, the cluster only contains the appliances that were included in the reset operation.

Performing a factory reset

As an Appliance Administrator, you can use the Factory Reset feature to reset a Safeguard for Privileged Passwords Appliance to recover from major problems or to clear the data and configuration settings on the appliance. A factory reset of a physical appliance may be initiated from:

  • The web client
  • The Recovery Kiosk
  • The Support Kiosk
  • Using the API

A Safeguard for Privileged Passwords virtual appliance is reset by the recovery steps to redeploy and not a factory reset. For more information, see Virtual appliance backup and recovery.

Caution: Care should be taken when performing a factory reset against a physical appliance, because this operation removes all data and audit history, returning it to its original state when it first came from the factory. Performing a factory reset will NOT reset the BMC/IPMI interface or the IP address. However, the BMC/IPMI interface will need to be reenabled after the reset has completed (for more information, see Lights Out Management (BMC)). The appliance must go through configuration again as if it had just come from the factory. For more information, see Setting up Safeguard for Privileged Passwords for the first time.

In addition, performing a factory reset may change the default SSL certificate and default SSH host key.

The appliance resets to the current Long Term Support (LTS) version. For example, if the appliance is running version 6.6 (feature release) or 6.0.6 LTS (maintenance Long Term Support release) and then factory reset, the appliance will reset down to 6.0 LTS and you will have to patch up to your desired version. For more information, see Long Term Support (LTS) and Feature Releases.

Factory reset on a clustered appliance

Performing a factory reset on a clustered hardware appliance will not automatically remove the appliance from a cluster. The recommended best practice is to unjoin an appliance from the cluster before performing a factory reset on the appliance. After the unjoin and factory reset, the appliance must be configured again. For more information, see Setting up Safeguard for Privileged Passwords for the first time.

To perform a factory reset from the web client

  1. Go to Factory Reset on hardware (not virtual machine):
    • Navigate to Appliance Management > Appliance > Factory Reset.
  2. Click Factory Reset.

  3. In the Factory Reset confirmation dialog, enter the words Factory Reset and click Factory Reset.

    The appliance will go into Maintenance mode to revert the appliance. If the appliance was in a cluster, you may need to unjoin the factory reset appliance. The factory reset appliance must be configured again. For more information, see Setting up Safeguard for Privileged Passwords for the first time. In addition, when you log in to the appliance, you will be prompted to add your Safeguard for Privileged Passwords licenses.

To perform a factory reset from the Recovery Kiosk

CAUTION: As part of the factory reset process, you will be performing a challenge response operation. To avoid invalidating the challenge response, do NOT navigate away from the page or refresh.

If the challenge response operation is invalidated, try restarting the process to generate a new challenge response. If that fails, contact One Identity Support for assistance.

  1. To perform a hardware factory reset, go to the Recovery Kiosk. For more information, see Recovery Kiosk (Serial Kiosk).

  2. Select Factory Reset.

  3. Press the right arrow.

  4. At id, enter your email or name and press the Tab key (or down arrow).

  5. At Get Challenge, press the Enter key. Safeguard for Privileged Passwords produces a challenge. (If the challenge is not shown, maximize Putty.)

  6. Copy and paste the challenge into a text document and send it to One Identity Support. A challenge response is only good for 48 hours.

    Do not navigate away from the page or refresh during a challenge response operation. Doing so will invalidate the challenge response and you will need to restart the process.

  7. When you get the response from One Identity Support, copy and paste the response into the kiosk screen and select Factory Reset. The response is only valid for 24 hours from when it was generated by One Identity.

  8. Once the factory reset is completed the appliance will need to be reconfigured.

See the following Knowledge Base Article for details on using the MGMT network interface for factory reset: KB 232766: What are the steps to perform a factory reset from the recovery kiosk or MGMT network interface on physical devices?

To perform a factory reset from the Support Kiosk

CAUTION: As part of the factory reset process, you will be performing a challenge response operation. To avoid invalidating the challenge response, do NOT navigate away from the page or refresh.

If the challenge response operation is invalidated, try restarting the process to generate a new challenge response. If that fails, contact One Identity Support for assistance.

  1. To perform a hardware factory reset, on the web management console, click Support Kiosk. For more information, see Support Kiosk.
  2. Select Factory Reset. (This option is not available if you are attached to the console of a virtual machine. The options is only available for hardware.)

  3. Complete the challenge/response process:

    1. In Full Name or Email, enter your name or email to receive the challenge question.
    2. Click Get Challenge.

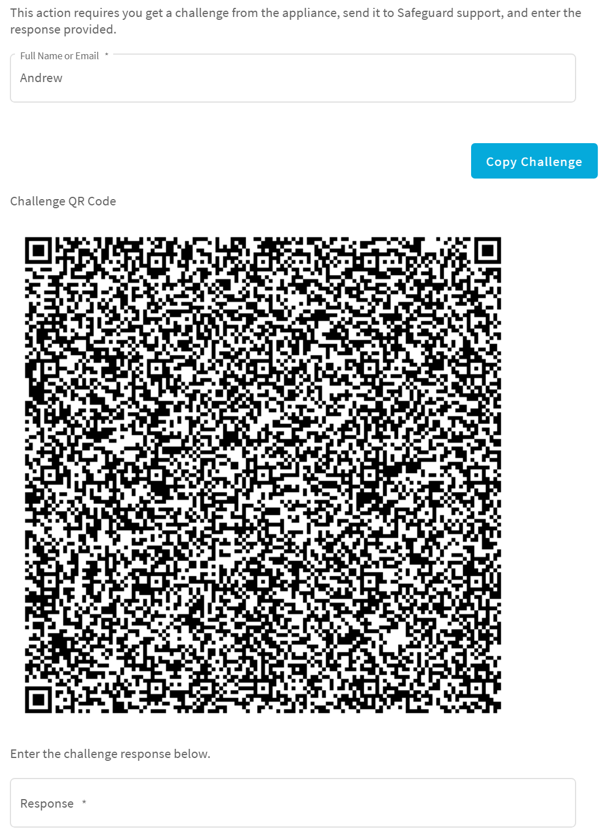

    3. To get the challenge response, perform one of the following (see the illustration that follows).
      • Click Copy Challenge. The challenge is copied to the clipboard. Send that challenge to Safeguard support. Support will send back a challenge response that is good for 48 hours. Do not refresh your screen.

      • Screenshot the QR code and send it to Support. Support will send back a challenge response that is good for 48 hours.

        Do not navigate away from the page or refresh during a challenge response operation. Doing so will invalidate the challenge response and you will need to restart the process.

      • Use a QR code reader on your phone to get the challenge response.

  4. When you get the response from One Identity Support, copy and paste the response into the kiosk screen and select Factory Reset.
