The following describes how to modify the network configuration of IPMI from the console of One Identity Safeguard for Privileged Sessions (SPS).
SPS is accessible using the IPMI interface only if the IPMI interface is physically connected to the network. For details on connecting the IPMI interface, see "Installing the SPS hardware" in the Installation Guide.
IPMI searches for available network interfaces during boot. Make sure that IPMI is connected to the network through the dedicated Ethernet interface before SPS is powered on.
|Caution: SECURITY HAZARD!
The IPMI interface, like all out-of-band management interfaces, has known vulnerabilities that One Identity cannot fix or have an effect on. To avoid security hazards, One Identity recommends that you only connect the IPMI interface to well-protected, separated management networks with restricted accessibility. Failing to do so may result in an unauthorized access to all data stored on the SPS appliance. Data on the appliance can be unencrypted or encrypted, and can include sensitive information, for example, passwords, decryption keys, private keys, and so on.
For more information, see Best Practices for managing servers with IPMI features enabled in Datacenters.
The administrator of SPS must be authorized and able to access the IPMI interface for support and troubleshooting purposes in case vendor support is needed.
The following ports are used by the IPMI interface:
Port 623 (UDP): IPMI (cannot be changed)
Port 5123 (UDP): floppy (cannot be changed)
Port 5901 (TCP): video display (configurable)
Port 5900 (TCP): HID (configurable)
Port 5120 (TCP): CD (configurable)
Port 80 (TCP): HTTP (configurable)
To modify the network configuration of IPMI from the console of SPS
Use the local console (or SSH) to log in to SPS as root.
Choose Shells > Boot shell.
Check the network configuration of the interface:
# ipmitool lan print
This guide assumes that channel 1 is used for LAN. If your setup differs, adjust the following commands accordingly.
Configure the interface. You can use DHCP or configure a static IP address manually.
Use an IPv4 address.
To use DHCP, enter the following command:
# ipmitool lan set 1 ipsrc dhcp
To use static IP, enter the following command:
# ipmitool lan set 1 ipsrc static
Set the IP address:
# ipmitool lan set 1 ipaddr <IPMI-IP>
Set the netmask:
# ipmitool lan set 1 netmask <IPMI-netmask>
Set the IP address of the default gateway:
# ipmitool lan set 1 defgw ipaddr <gateway-IP>
Configure IPMI to use the dedicated Ethernet interface.
On the N1000, T1, T4, and T10 appliances, issue the following command:
# ipmitool raw 0x30 0x70 0xc 1 0
On the 1000d and 10000 appliances, issue the following command:
# ipmitool raw 0x30 0x70 0xc 1 1 0
Verify the network configuration of IPMI:
# ipmitool lan print 1
Use a browser to connect to the reported network address.
Change the default password:
Log in to the IPMI web interface using the default login credentials (username: ADMIN, password: ADMIN or changeme, depending on your hardware).
The login credentials are case sensitive.
Navigate to Configure > Users.
Select ADMIN, and choose Modify User.
Change the password, and save the changes with Modify.
To configure IPMI from the BIOS when configuring your One Identity Safeguard for Privileged Sessions (SPS) physical appliance for the first time, complete the following steps.
To apply the procedure outlined here, you will need physical access to a monitor and keyboard.
To configure the IPMI interface from the BIOS
Press the DEL button when the POST screen comes up while the appliance is booting.

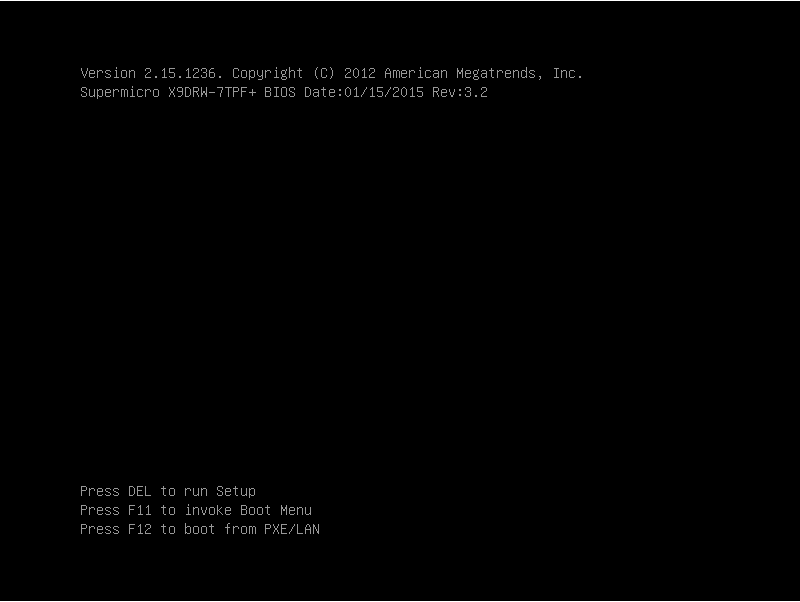

Figure 112: POST screen during booting
In the BIOS, navigate to the IPMI page.
On the IPMI page, select BMC Network Configuration, and press Enter.

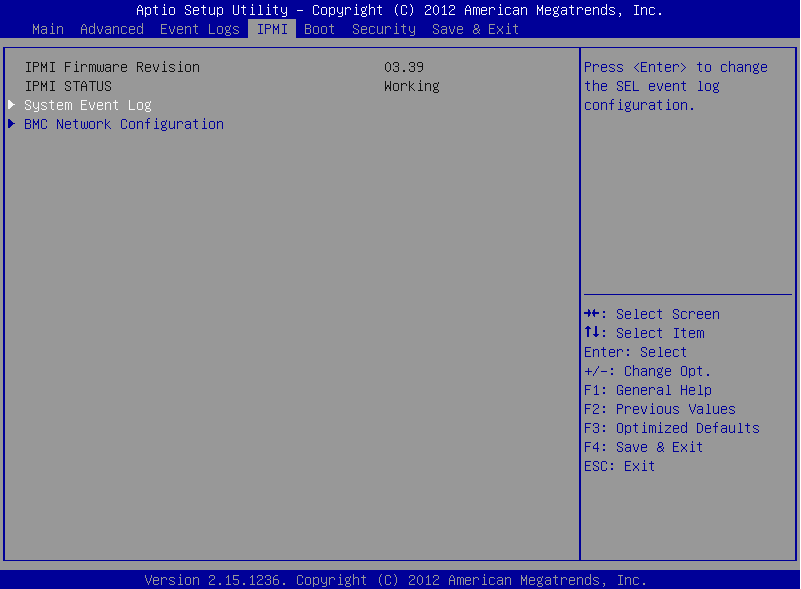

Figure 113: IPMI page > BMC Network Configuration option
On the BMC Network Configuration page, select Update IPMI LAN Configuration, press Enter, and select Yes.

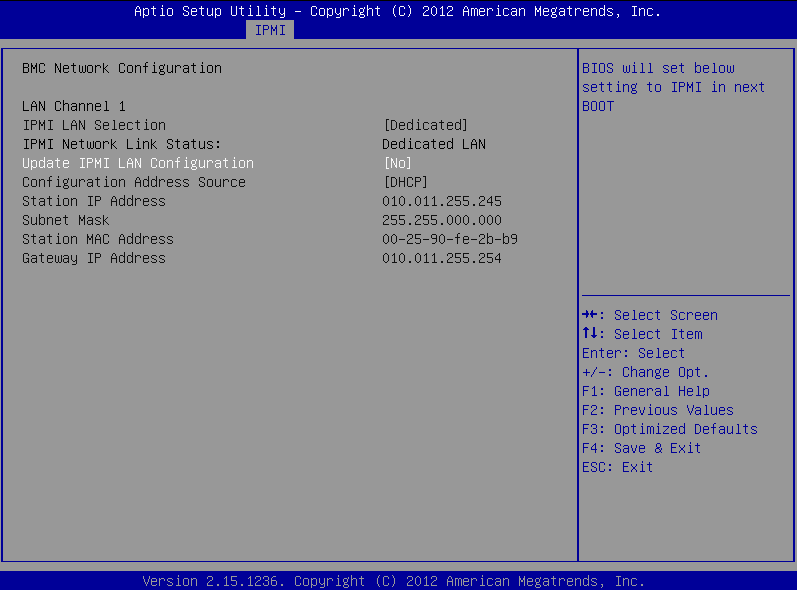

Figure 114: BMC Network Configuration page > Update IPMI LAN Configuration
Stay on the BMC Network Configuration page, select Configuration Address Source, press Enter, and select Static.
Figure 115: BMC Network Configuration page > Configuration Address Source
Still on the BMC Network Configuration page, configure the Station IP Address, Subnet Mask, and Gateway IP Address individually.

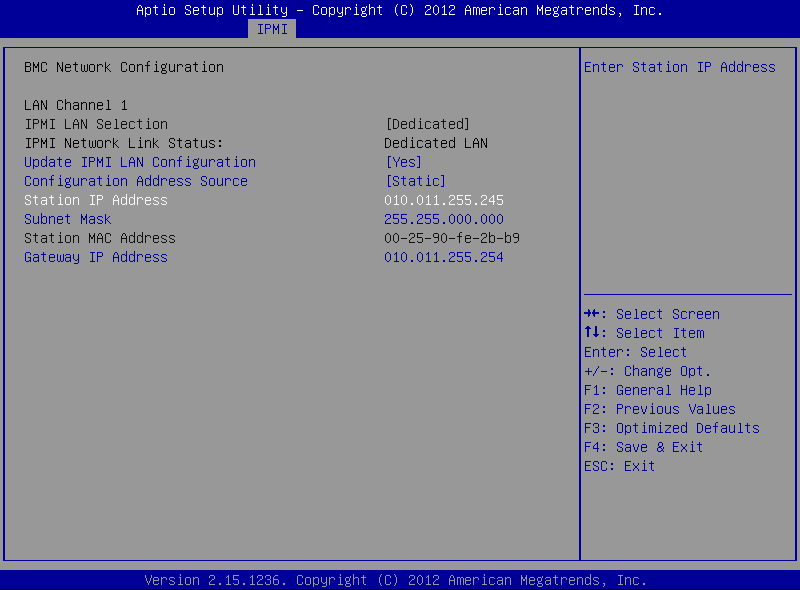

Figure 116: BMC Network Configuration page > Station IP Address, Subnet Mask, Gateway IP Address
Press F4 to save the settings, and exit from the BIOS.
About a minute later, you will be able to log in on the IPMI web interface.
One Identity Safeguard for Privileged Sessions (SPS) uses a number of certificates for different tasks that can be managed from the Basic Settings > Management > SSL certificates menu.

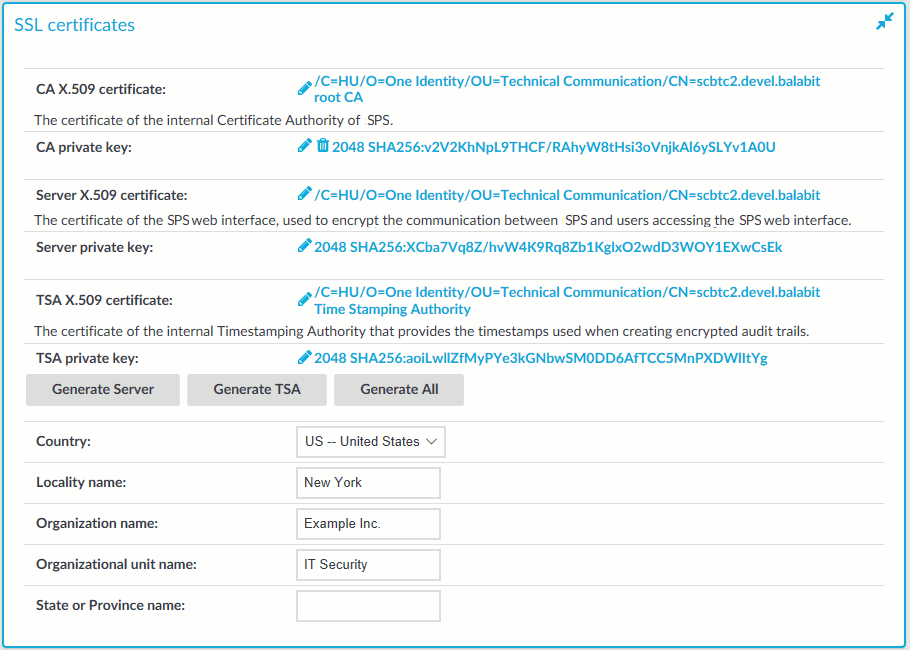

Figure 117: Basic Settings > Management > SSL certificates — Changing the web certificate of SPS
The following certificates can be modified here:
CA certificate: The certificate of the internal Certificate Authority of SPS.
Server certificate: The certificate of the SPS web interface, used to encrypt the communication between SPS and the administrators.
If this certificate is changed, the browser of SPS users will display a warning stating that the certificate of the site has changed.
TSA certificate: The certificate of the internal Timestamping Authority that provides the timestamps used when creating encrypted audit-trails.
SPS uses other certificates for different purposes that are not managed here, for example, to encrypt data stored on SPS. For details, see Encrypting audit trails.
Use every keypair or certificate only for one purpose. Do not reuse cryptographic keys or certificates (for example, do not use the certificate of the One Identity Safeguard for Privileged Sessions (SPS) webserver to encrypt audit trails, or the same keypair for signing and encrypting data).
For every certificate, the distinguished name (DN) of the X.509 certificate and the fingerprint of the private key is displayed. To display the entire certificate click on the DN. To display the public part of the private key, click on the fingerprint. It is not possible to download the private key itself from the SPS web interface, but the public part of the key can be downloaded in different formats (for example PEM, DER, or OpenSSH). Also, the X.509 certificate can be downloaded in PEM and DER formats.
During the initial configuration, SPS creates a self-signed CA certificate, and uses this CA to issue the certificate of the web interface (see Server certificate) and the internal Timestamping Authority (TSA certificate).
There are two methods to manage certificates of SPS:
Recommended: Generate certificates using your own PKI solution and upload them to SPS.
Generate a CA certificate and two other certificates signed with this CA using your PKI solution and upload them to SPS. For the Server and TSA certificates, upload the private key as well. One Identity recommends using 2048-bit RSA keys (or stronger), and to use certificates that have the appropriate keyUsage or extendedKeyUsage fields set (for example, extendedKeyUsage=serverAuth for the SPS web server certificate).
For details on uploading certificates and keys created with an external PKI, complete Uploading external certificates to One Identity Safeguard for Privileged Sessions (SPS).
The Server and the TSA certificates must be issued by the same Certificate Authority.
Use the certificates generated on SPS. In case you want to generate new certificates and keys for SPS using its self-signed CA certificate, or generate a new self-signed CA certificate, complete Generating certificates for One Identity Safeguard for Privileged Sessions (SPS).
Generate certificates using your own PKI solution and upload them to SPS whenever possible. Certificates generated on SPS cannot be revoked, and can become a security risk if they are somehow compromised.
Create a new certificate for the One Identity Safeguard for Privileged Sessions (SPS) webserver or the Timestamping Authority using the internal CA of SPS, or create a new, self-signed CA certificate for the internal Certificate Authority of SPS.
One Identity recommends using 2048-bit RSA keys (or stronger).
To create a new certificate for the SPS webserver
Navigate to Basic Settings > Management > SSL certificates.
Fill the fields of the new certificate:
Country: Select the country where SPS is located (for example HU - Hungary).
Locality name: The city where SPS is located (for example Budapest).
Organization name: The company who owns SPS (for example Example Inc.).
Organization unit name: The division of the company who owns SPS (for example IT Security Department).
State or Province name: The state or province where SPS is located.
Select the certificate you want to generate.
To create a new certificate for the SPS web interface, select Generate Server.
To create a new certificate for the Timestamping Authority, select Generate TSA.
To create a new certificate for the internal Certificate Authority of SPS, select Generate All. Note that in this case new certificates are created automatically for the server and TSA certificates as well.
When generating new certificates, the server and TSA certificates are signed using the certificate of the CA. If you have uploaded an external CA certificate along with its private key, it will be used to create the new server and TSA certificates. If you have uploaded an external CA certificate without its private key, use your external PKI solution to generate certificates and upload them to SPS.
Generating a new certificate automatically deletes the earlier certificate.
