One Identity Safeguard for Privileged Sessions 7.5

One Identity Safeguard for Privileged Sessions (SPS) 7.5 includes a dedicated out-of-band management interface conforming to the Intelligent Platform Management Interface (IPMI) v2.0 standards. The IPMI allows system administrators to monitor the system health of SPS and to manage the computer events remotely, independently of the operating system of SPS. SPS is accessible using the IPMI only if the IPMI is physically connected to the network.

NOTE: IPMI supports only 100 Mbps Full-Duplex speed.

Note that the IPMI supports only 100 Mbps Full-Duplex speed.

For details on connecting the IPMI, see Installing the SPS hardware in the Installation Guide.
For details on configuring the IPMI, see Configuring the IPMI from the console.
For details on using the IPMI to remotely monitor and manage SPS, see the following document:

For Safeguard Sessions Appliance 4000, see the X12 H12 BMC User's Manual

Basic information about the IPMI is available also on the SPS web interface on the Basic Settings > High Availability page. The following information is displayed:

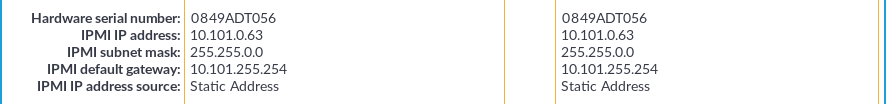

Figure 144: Basic Settings > High Availability — Information about the IPMI SPS

Hardware serial number: The unique serial number of the appliance.
IPMI IP address: The IP address of the IPMI.
IPMI subnet mask: The subnet mask of the IPMI.
IPMI default gateway: The address of the default gateway configured for the IPMI.
IPMI IP address source: Shows how the IPMI receives its IP address: dynamically from a DHCP server, or it uses a fixed static address.

Configuring the IPMI from the console

This section describes how you can modify the network configuration of IPMI from the console of One Identity Safeguard for Privileged Sessions (SPS).

Prerequisites

SPS is accessible using the IPMI only if the IPMI is physically connected to the network. For details on connecting the IPMI, see Installing the SPS hardware in the Installation Guide.

Caution:

IPMI searches for available network interfaces during boot. Make sure that IPMI is connected to the network through the dedicated Ethernet interface before SPS is powered on.

Caution: SECURITY HAZARD!

The IPMI, like all out-of-band management interfaces, has known vulnerabilities that One Identity cannot fix or have an effect on. To avoid security hazards, One Identity recommends that you only connect the IPMI to well-protected, separated management networks with restricted accessibility. Failing to do so may result in an unauthorized access to all data stored on the SPS appliance. Data on the appliance can be unencrypted or encrypted, and can include sensitive information, for example, passwords, decryption keys, private keys, and so on.

For more information, see Best Practices for managing servers with IPMI features enabled in Datacenters.

NOTE: The administrator of SPS must be authorized and able to access the IPMI for support and troubleshooting purposes in case vendor support is needed.

The following ports are used by the IPMI:

Port 22 (TCP): SSH (configurable)
Port 80 (TCP): Web (configurable)
Port 161 (UDP, TCP): SNMP (configurable)
Port 443 (TCP): Web SSL (configurable)
Port 623 (UDP): Virtual Media (configurable)
Port 5900 (TCP): IKVM Server (configurable)
Port 5985 (TCP): Wsman (configurable)

The SSH encrypted connection (port 22) works with the following properties:

Supported:	Safeguard Sessions Appliance 3000	Safeguard Sessions Appliance 3500
Ciphers	aes128-ctr, aes256-ctr	3des-cbc, aes128-ctr, aes128-cbc, aes256-ctr, aes256-cbc
KEX algorithm	curve25519-sha256, ecdh-sha2-nistp256, curve25519-sha256@libssh.org, ecdh-sha2-nistp384, diffie-hellman-group1-sha1, ecdh-sha2-nistp521, diffie-hellman-group14-sha1	curve25519-sha256, ecdh-sha2-nistp256, curve25519-sha256@libssh.org, ecdh-sha2-nistp384, diffie-hellman-group1-sha1, ecdh-sha2-nistp521, diffie-hellman-group14-sha1
MACs	hmac-sha1, hmac-sha2-256, hmac-sha1-96, hmac-sha2-512	hmac-md5, hmac-sha2-256, hmac-sha1, hmac-sha2-512, hmac-sha1-96
HostKey algorithms	ssh-rsa, ssh-dss	ssh-rsa, ssh-dss
Compression	enabled	enabled

SSL-encrypted connections work with the following properties:

Supported:	Safeguard Sessions Appliance 3000	Safeguard Sessions Appliance 3500
TLSv1.2	enabled	enabled
TLS Fallback SCSV	supported	supported
Heartbleed	not vulnerable	not vulnerable
Server Ciphers	Preferred TLSv1.2 256 bits ECDHE-RSA-AES256-GCM-SHA384 Curve P-256 DHE 256 Accepted TLSv1.2 256 bits ECDHE-RSA-AES256-SHA384 Curve P-256 DHE 256 Accepted TLSv1.2 256 bits DHE-RSA-AES256-GCM-SHA384 DHE 2048 bits Accepted TLSv1.2 256 bits DHE-RSA-AES256-SHA256 DHE 2048 bits Accepted TLSv1.2 256 bits AES256-GCM-SHA384 Accepted TLSv1.2 256 bits AES256-SHA256 Accepted TLSv1.2 128 bits ECDHE-RSA-AES128-GCM-SHA256 Curve P-256 DHE 256 Accepted TLSv1.2 128 bits ECDHE-RSA-AES128-SHA256 Curve P-256 DHE 256 Accepted TLSv1.2 128 bits DHE-RSA-AES128-GCM-SHA256 DHE 2048 bits Accepted TLSv1.2 128 bits DHE-RSA-AES128-SHA256 DHE 2048 bits Accepted TLSv1.2 128 bits AES128-GCM-SHA256 Accepted TLSv1.2 128 bits AES128-SHA256	Preferred TLSv1.2 256 bits ECDHE-RSA-AES256-GCM-SHA384 Curve P-256 DHE 256 Accepted TLSv1.2 256 bits ECDHE-RSA-AES256-SHA384 Curve P-256 DHE 256 Accepted TLSv1.2 256 bits DHE-RSA-AES256-GCM-SHA384 DHE 2048 bits Accepted TLSv1.2 256 bits DHE-RSA-AES256-SHA256 DHE 2048 bits Accepted TLSv1.2 256 bits AES256-GCM-SHA384 Accepted TLSv1.2 256 bits AES256-SHA256 Accepted TLSv1.2 128 bits ECDHE-RSA-AES128-GCM-SHA256 Curve P-256 DHE 256 Accepted TLSv1.2 128 bits ECDHE-RSA-AES128-SHA256 Curve P-256 DHE 256 Accepted TLSv1.2 128 bits DHE-RSA-AES128-GCM-SHA256 DHE 2048 bits Accepted TLSv1.2 128 bits DHE-RSA-AES128-SHA256 DHE 2048 bits Accepted TLSv1.2 128 bits AES128-GCM-SHA256 Accepted TLSv1.2 128 bits AES128-SHA256
Server Key Exchange Groups	TLSv1.2 128 bits secp256r1 (NIST P-256)	TLSv1.2 128 bits secp256r1 (NIST P-256)
Server Signature Algorithms	TLSv1.2 Server accepts all signature algorithms.	TLSv1.2 Server accepts all signature algorithms.

To modify the network configuration of IPMI from the console of SPS

Use the local console (or SSH) to log in to SPS as root.
Choose Shells > Boot shell.
Check the network configuration of the interface:

# ipmitool lan print

This guide assumes that channel 1 is used for LAN. If your setup differs, adjust the following commands accordingly.
Configure the interface. You can use DHCP or configure a static IP address manually.

Use an IPv4 address.
- To use DHCP, enter the following command:

  # ipmitool lan set 1 ipsrc dhcp
- To use static IP, enter the following command:

  # ipmitool lan set 1 ipsrc static

  Set the IP address:

  # ipmitool lan set 1 ipaddr <IPMI-IP>

  Set the netmask:

  # ipmitool lan set 1 netmask <IPMI-netmask>

  Set the IP address of the default gateway:

  # ipmitool lan set 1 defgw ipaddr <gateway-IP>
Verify the network configuration of IPMI:

# ipmitool lan print 1

Use a browser to connect to the reported network address.
Change the default password:
1. Log in to the IPMI web interface using the default login credentials (username: ADMIN, password: ADMIN or changeme, depending on your hardware).

  NOTE: The login credentials are case sensitive.
2. Navigate to Configure > Users.
3. Select ADMIN, and choose Modify User.
4. Change the password, and save the changes with Modify.

Configuring the IPMI from the BIOS

To configure IPMI from the BIOS when configuring your One Identity Safeguard for Privileged Sessions (SPS) physical appliance for the first time, complete the following steps.

Prerequisites

To apply the procedure outlined here, you will need physical access to a monitor and keyboard.

To configure the IPMI from the BIOS

Press the DEL button when the POST screen comes up while the appliance is booting.

Figure 145: POST screen during booting
In the BIOS, navigate to the IPMI page.
On the IPMI page, select BMC Network Configuration, and press Enter.

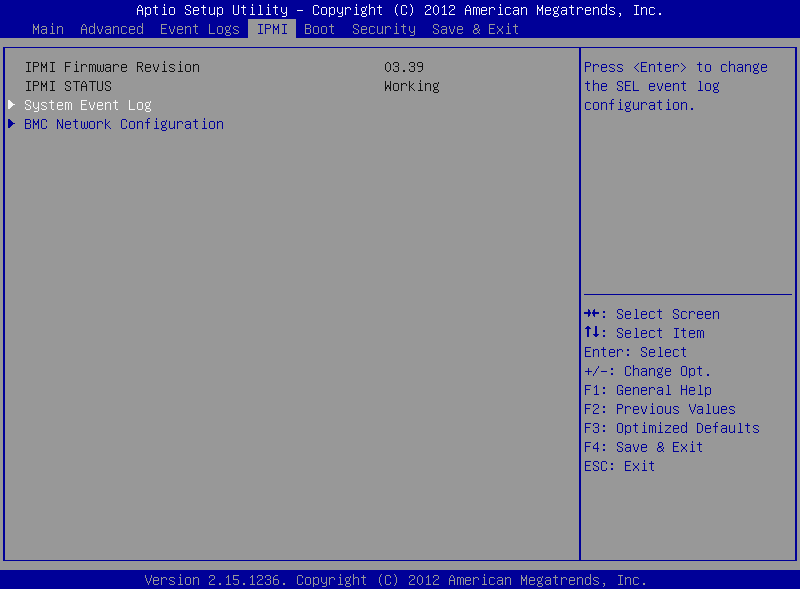

Figure 146: IPMI page > BMC Network Configuration option
On the BMC Network Configuration page, select Update IPMI LAN Configuration, press Enter, and select Yes.

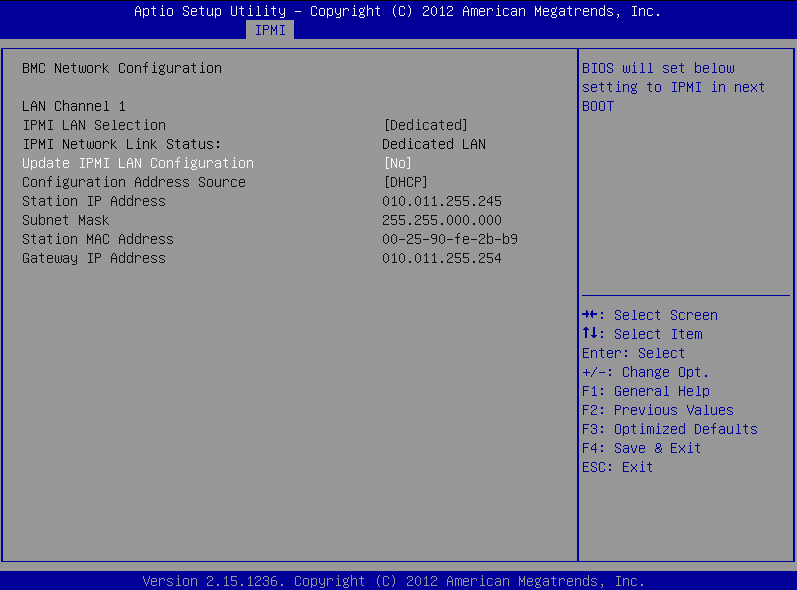

Figure 147: BMC Network Configuration page > Update IPMI LAN Configuration
Stay on the BMC Network Configuration page, select Configuration Address Source, press Enter, and select Static.

Figure 148: BMC Network Configuration page > Configuration Address Source
Still on the BMC Network Configuration page, configure the Station IP Address, Subnet Mask, and Gateway IP Address individually.

Figure 149: BMC Network Configuration page > Station IP Address, Subnet Mask, Gateway IP Address
Press F4 to save the settings, and exit from the BIOS.

About a minute later, you will be able to log in on the IPMI web interface.
