Creating and editing user lists

User lists are white- or blacklists of usernames that allow fine-control over who can access a connection or a channel.

Caution:

User Lists are white- or blacklists of usernames that determine who can access the server remotely. However, this cannot prevent a user from accessing the server from a local terminal.

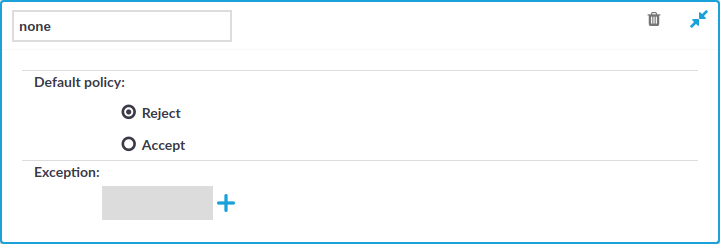

Figure 179: Policies > User Lists — Configuring user lists

To create a new user list or edit an existing one

  1. Navigate to the User Lists tab of the Policies menu and click to create a new user list. Enter a name for the list User List field (for example serveradmins).

    Caution:

    Usernames, the names of user lists, and the names of usergroups are case sensitive.

  2. Click to display the list of users.

  3. Select the default policy of the user list. Select Reject for a whitelist, that is, to allow access only to the members of the list. Select Accept for a blacklist, that is, to allow access to everyone except the members of the list.

  4. Click and enter a username into the displayed field. Repeat this step until all required usernames are listed.

    Caution:

    Usernames, the names of user lists, and the names of usergroups are case sensitive.

  5. Click to save the list.

  6. To actually restrict access to a channel based on the user list created in the previous steps:

    • Navigate to the Channel Policies tab of the type of connection you want to control and click to display the details of the policy.

    • Click in the Group section to add a new group to the policy and enter the name of the group. Repeat this step to add other groups.

      Caution:

      Usernames, the names of user lists, and the names of usergroups are case sensitive.

      NOTE: When listing more groups, users of any of the listed groups can access the channel. For details, see Creating and editing channel policies.

      When listing both a whitelist and blacklist in the Group section and a username appears on both lists, the user will be able to access the channel.

    • Click .

Authenticating users to an LDAP server

You can use the LDAP policy to set the details of the LDAP server you wish to use to:

  • authenticate gateway users (available in SSH and Telnet as Authentication Policy)

  • query gateway groups (available for RDP, Telnet, SSH, and ICA)

  • query remote groups (available for RDP, Telnet, SSH, ICA, and HTTP)

NOTE: This feature is not available for Virtual Network Computing (VNC) connections.

Prerequisites

Make sure that the response timeout of the LDAP/Active Directory server is set to a minimum of 120 seconds.

NOTE: Consider the following:

  • In RDP (including RDG) connections, you can use the LDAP policy for group membership check only, you cannot use it as the authentication backend. However, you can use a trusted AD domain for authentication and LDAP for group membership check.

    In this case, LDAP will only use the username without the domain name to verify the group membership.

  • One Identity Safeguard for Privileged Sessions (SPS) treats user and group names in a case insensitive manner if the matching rule for the attribute in question is case insensitive in the LDAP database.

To configure an LDAP policy for a connection

  1. Navigate to Policies > LDAP Servers and click to create a new LDAP policy.

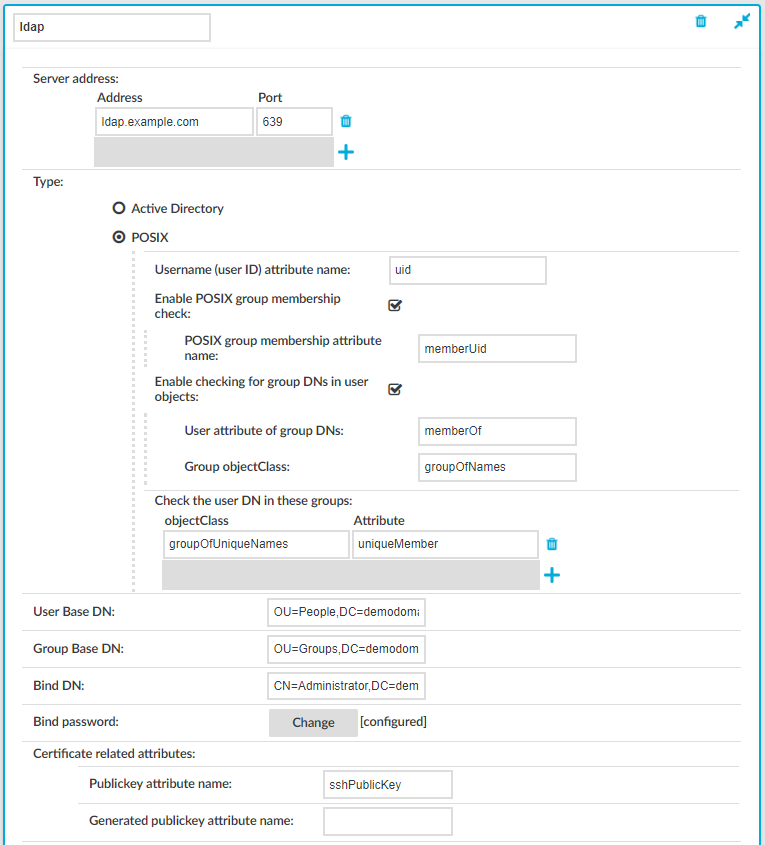

    Figure 180: Policies > LDAP Servers — Configuring LDAP Server policies

  2. Enter a name for the policy (for example ldapservers).

  3. Select the type of your LDAP server in the Type field. Select:

    • Active Directory to connect to Microsoft Active Directory servers.

      You can enable nested groups. Select Enable AD group membership check, then Enable nested groups.

      Caution:

      Nested groups can slow down the query and cause the connection to timeout if the LDAP tree is very large. In this case, disable the Enable nested groups option.

      To also check group membership based on group DNs in a user attribute, select Enable checking for group DNs in user objects and enter the name of the user attribute, for example, memberOf in the User attribute of group DNs field.

      Caution:

      If you have too many groups, using this option significantly slows down logging in to the SPS web interface.

      Use this option only if you have an LDAP schema where the user groups can only be determined from a user attribute that contains the group DNs.

      To check for group membership based on user DNs in group attributes, use the Check the user DN in these groups options.

      For more information, see Active Directory LDAP backend.

    • POSIX to connect to servers that use the POSIX LDAP scheme.

      If your LDAP server uses a custom POSIX LDAP scheme, you might need to set which LDAP attributes store the username, or the attributes that set group memberships. For example, if your LDAP scheme does not use the uid attribute to store the usernames, set the Username (user ID) attribute name option.

      In addition to the primary group membership checking, you can allow checking for supplementary group memberships by selecting Enable POSIX group membership check and specifying the POSIX group membership attribute name field.

      To also check group membership based on group Distinguished Names (DNs) in a user attribute, select Enable checking for group DNs in user objects. Then, enter the name of the user attribute (for example, memberOf) in the User attribute of group DNs field, and objectClass (for example, groupOfNames) in the Group objectClass field.

      Caution:

      If you have too many groups, using this option significantly slows down logging in to the SPS web interface.

      Use this option only if you have an LDAP schema where the user groups can only be determined from a user attribute that contains the group DNs.

      To check for group membership based on user DNs in group attributes, use the Check the user DN in these groups option.

      For more information, see POSIX LDAP backend.

      For an overview about LDAP user and group resolution in SPS, see Overview.

  4. Enter the IP address/hostname and the port of the LDAP server in the respective text boxes.

    Consider the following when specifying the address information:

    • If you want to encrypt the communication between SPS and the LDAP server, use the following port numbers:

      • For TLS, specify 636 as the port number.

      • For STARTTLS, specify 389 as the port number.

    • Use an IPv4 adress or a hostname.

    • To add multiple servers, click and enter the address of the next server. If a server is unreachable, SPS will try to connect to the next server in the list in failover fashion.

    • When you configure the location of the LDAP server, that is, the IP address or hostname and the port number, you can use a Service record (SRV record), which is a type of information record in the DNS that maps the name of a service to the DNS name of the server. SRV records have the following format: _ldap._tcp.<SITE_NAME>._sites.dc._msdcs.<DOMAIN.NAME> in the Address field. SPS looks up of the SRV record during committing the configuration change.

      For more information on SRV records, see the relevant Microsoft documentation.

    • Caution:

      If you connect to the LDAP server over a TLS-encrypted connection with certificate verification, you must fill the Address field with a name or IP address, which must be present in the certificate.

  5. In the User Base DN field, enter the name of the DN to be used as the base of queries regarding users (for example: OU=People,DC=demodomain,DC=exampleinc).

    NOTE: This field is mandatory. You can use the same value for the User Base DN and the Group Base DN settings.

    To speed up LDAP operations, specify a sufficiently narrow base for the LDAP subtrees where users and groups are stored.

  6. In the Group Base DN field, enter the name of the DN to be used as the base of queries regarding groups (for example: OU=Groups,DC=demodomain,DC=exampleinc).

    NOTE: This field is mandatory. You can use the same value for the User Base DN and the Group Base DN settings.

    To speed up LDAP operations, specify a sufficiently narrow base for the LDAP subtrees where users and groups are stored.

  7. In the Bind DN field, enter the Distinguished Name that SPS must use to bind to the LDAP directory (for example: CN=Administrator,DC=demodomain,DC=exampleinc).

    NOTE: SPS accepts both pre Windows 2000-style and Windows 2003-style account names, or User Principal Names (UPNs). For example, administrator@example.com is also accepted.

  8. To configure or change the password to use when binding to the LDAP server, click Change and enter the password. Click Update. Click Commit.

    NOTE: SPS accepts passwords that are not longer than 150 characters and supports the following characters:

    • Letters A-Z, a-z

    • Numbers 0-9

    • The space character

    • Special characters: !"#$%&'()*+,-./:;<>=?@[]\^-`{}_|

  1. Skip this step if you use passwords to authenticate the users.

    • If you use public-key authentication and receive the public key of the users from the LDAP database, enter the name of the LDAP attribute that stores the public keys of the users into the Publickey attribute name field. For details on using public-key authentication with the LDAP database, see Configuring public-key authentication on One Identity Safeguard for Privileged Sessions (SPS).

    • If you use X.509 certificate for authentication and receive the certificates of the users from the LDAP database, enter the name of the LDAP attribute that stores the certificates of the users into the Certificate attribute name field.

  2. Skip this step if you use passwords to authenticate the users.

    • If you use public-key authentication and want SPS to generate server-side encryption keys on-the-fly and store them in a separate attribute on the LDAP server, enter the name of the attribute into the Generated publickey attribute name field.

    • If you use certificate authentication and want SPS to generate server-side certificates on-the-fly and store them in a separate attribute on the LDAP server, enter the name of the attribute into the Generated certificate attribute name field.

  1. If you want to encrypt the communication between SPS and the LDAP server, in Encryption, select the TLS or the STARTTLS option and complete the following steps:

    Figure 181: Policies > LDAP Servers — Configuring encryption

    NOTE: TLS-encrypted connection to Microsoft Active Directory is supported only on Windows 2003 Server and newer platforms. Windows 2000 Server is not supported.

      Verify the certificate of the server

    • If you want SPS to verify the certificate of the server, select Only accept certificates authenticated by the Trust Store and select a trust store in the Trust Store field.

      SPS will use the selected trust store to verify the certificate of the server, and reject the connections if the verification fails.

      Caution:

      SPS checks if the certificate revocation list (CRL) has expired and that the CRL has been signed by the same certificate authority (CA).

      Caution:

      If you connect to the LDAP server over a TLS-encrypted connection with certificate verification, you must fill the Address field with a name or IP address, which must be present in the certificate.

      Authenticate as client

    • If the LDAP server requires mutual authentication, that is, it expects a certificate from SPS, enable Authenticate as client. Generate and sign a certificate for SPS, then click in the Client X.509 certificate field to upload the certificate. After that, click in the Client key field and upload the private key corresponding to the certificate.

    TIP: One Identity recommends using 2048-bit RSA keys (or stronger).

  1. To commit the changes, click .

  2. Click Test to test the connection.

    NOTE: Testing TLS and STARTTLS-encrypted connections is not supported.

Audit policies

An audit trail is a file storing the recorded activities of the administrators. Audit trails are not created automatically for every connection: auditing must be enabled manually in the channel policy used in the connection. The available default channel policies enable auditing for the most common channels. Audit trails are automatically compressed, and can be encrypted, timestamped, and signed as well. Audit trails can be replayed using the Safeguard Desktop Player application (for details, see Safeguard Desktop Player User Guide), or directly in your browser (for details, see Replaying audit trails in your browser).

TIP: By default, every connection uses the built-in default audit policy. Unless you use a custom audit policy, modifying the default audit policy will affect every audited channel of the connections passing through One Identity Safeguard for Privileged Sessions (SPS).

Caution:

In RDP connections, if the client uses the Windows login screen to authenticate on the server, the password of the client is visible in the audit trail. To avoid displaying the password when replaying the audit trail, encrypt the upstream traffic in the audit trail using a separate certificate from the downstream traffic.

For more information, see "Encrypting audit trails" in the Administration Guide.

Encrypting audit trails

To prevent unauthorized access to the audit trail files, One Identity Safeguard for Privileged Sessions (SPS) can encrypt:

  • The entire trail.

  • The entire trail, and the upstream part with an additional (set of) certificate(s).

  • Only the upstream part.

With upstream encryption, the passwords are visible only with the private key of the certificate used for encrypting the upstream traffic.

NOTE: Even if the upstream traffic is encrypted with a separate certificate, only one audit trail file is created for a session.

Encrypting the upstream part has the following limitations:

  • During indexing, command detection does not work without the upstream encryption keys.

TIP: For more information on uploading certificates for indexing and replaying audit trails, see:

Encrypting audit trails requires one or more X.509 certificate in PEM format that uses an RSA key, depending on the configuration.

NOTE: Certificates are used as a container and delivery mechanism. For encryption and decryption, only the keys are used.

TIP: One Identity recommends using 2048-bit RSA keys (or stronger).

Use every keypair or certificate only for one purpose. Do not reuse cryptographic keys or certificates (for example, do not use the certificate of the One Identity Safeguard for Privileged Sessions (SPS) webserver to encrypt audit trails, or the same keypair for signing and encrypting data).

The following encryption options are available:

  • Encrypt with a single certificate. This is the most simple approach: SPS uses one certificate to encrypt the audit trails, and anyone who has the private key of that certificate can replay the audit trails. If that key is lost, there is no way to open the audit trails.

  • Encrypt separately with multiple certificates.SPS uses two or more certificates separately to encrypt the audit trails, and anyone who has the private key of one of the encryption certificates can replay the audit trails.

  • Encrypt jointly with two certificates.SPS uses two certificates together (a certificate-pair) to encrypt the audit trails. The private keys of both encryption certificates are needed to replay the audit trails. This is a kind of "four-eyes in auditing".

You can combine the different encryption methods. For example, you can encrypt the audit trails with multiple certificate-pairs, and replay the trails only if the private keys of a certificate-pair are available. This is true for encrypting the upstream traffic as well. At the extreme, you will need four private keys to fully replay an audit trail: two to open the normal traffic, and two more to display the upstream traffic.

Note that SPS itself cannot create the certificates used to encrypt the audit trails.

TIP: If two certificates are displayed in a row, they are a certificate-pair and you need the private key of both to replay the audit trails. If two certificates are displayed in separate rows, you need the one of the private keys to replay the audit trails. If there are multiple rows containing two certificates, you need the private keys of the certificate(s) listed in any of the rows.

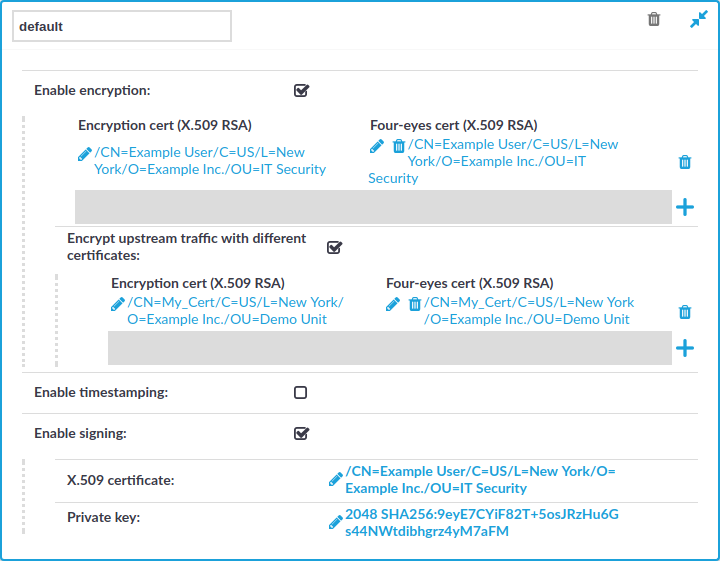

Figure 182: Policies > Audit Policies — Encrypting audit trails: joint encryption with a certificate pair

Each audit policy can have up to 8 lines of certificate pairs.

To encrypt audit trails

  1. Navigate to Policies > Audit Policies and select the audit policy you will use in your connections.

    TIP: By default, every connection uses the built-in default audit policy. Unless you use a custom audit policy, modifying the default audit policy will affect every audited channel of the connections passing through One Identity Safeguard for Privileged Sessions (SPS).

  2. Select the Enable encryption option.

  3. To upload a certificate for encrypting the entire trail:

    1. Click the icon under the Encryption cert (X.509 RSA) 4-eyes cert (X.509 RSA) row.

    2. Click on the left icon and upload a certificate to SPS. This certificate will be used to encrypt the audit trails, and it must not include the private key.

      NOTE: To replay the audit trails, you need the private key of the certificate on the computer running the Safeguard Desktop Player application.

    3. (Optional) To encrypt the audit trails jointly with another certificate, click on the right icon and upload a certificate to SPS. Note that the private key of both certificates will be required to replay the audit trails.

    4. Repeat these steps to encrypt the audit trails separately with additional certificates.

  4. To upload a certificate for encrypting the upstream traffic:

    1. Select Encrypt upstream traffic with different certificates.

    2. Click the icon under the Encryption cert (X.509 RSA) 4-eyes cert (X.509 RSA) row.

    3. Click on the left icon and upload a certificate to SPS. This certificate will be used to encrypt the audit trails, and it must not include the private key.

      NOTE: To replay the upstream part of the audit trails, you need the private key of the certificate on the computer running the Safeguard Desktop Player application.

    4. (Optional) To encrypt the audit trails jointly with another certificate, click on the right icon and upload a certificate to SPS. Note that the private key of both certificates will be required to replay the audit trails.

    5. Repeat these steps to encrypt the upstream separately with additional certificates.

  5. Click .
