Working with the Designer

Selecting a dynamic entry

Some foreign key relationships are identified dynamically in One Identity Manager. There are two steps to selecting a dynamic foreign key.

  1. Specify the table in which the object should be identified.

  2. Select the actual object.

Figure 20: Selecting dynamic entries

To specify a dynamic entry:

  1. Click next to the field.

  2. Under Table, select in the table in which to identify the object.

  3. Select the actual object from the next list.

  4. Click OK.

Setting a date

As well as manually entering a date, you can copy a date into the input field from the control. Open the control using the [...] button beside a date input field.

Figure 21: Control for setting a date

The title bar of the control repeats the name of the corresponding input field.

To select a date:

  1. Today's date is identified by a colored border. Click Today to select today's date.

    - OR -

    Select the date using the calendar.

    1. Select the month and year using the arrow beside the Month year control or click the Month year control.

    2. Select the day by clicking in the calendar.

  2. Click OK.

Editing login hours

This control is used, for example, to configure the daily login hours for a user account.

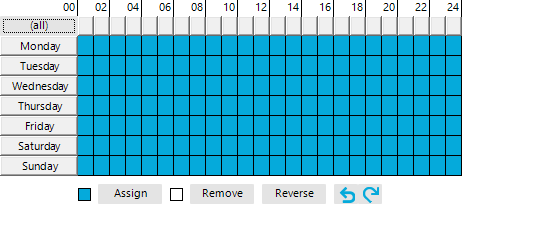

Figure 22: Login time control

The calendar shows a 7-day week, each box represents one hour. The configured login times are shown in color, respectively. If a box is filled, login is allowed. If the box is empty, login is denied.

To specify login times

  • Select a time period with the mouse or keyboard.

  • Select Assign to enable login in the selected period.

  • Select Remove to deny login in the selected period.

  • Select Reverse to invert the selected period.

  • Use the arrow keys to reset or repeat a selection.

Layout of object relations

This control element shows the relations between the One Identity Manager database objects (Parent/ChildRelation).

  • Only the assigned elements are displayed in the Remove assignments pane.

    You can remove assigned elements here.

  • In the Add assignments pane, you can see all the elements.

    Make new assignments or remove existing ones here. If allowed, you can use a filter to further restrict the selection of elements you want to show.

To activate or deactivate an assignment

  • Use the control's context menu.

    - OR -

  • Double-click an entry.

Figure 23: Displaying assignments in the control element

Table 28: Meaning of icons in the control element
Icon Meaning

Object is assigned to the selected base object.

Object is not assigned to an object.

Object is assigned to another object.

NOTE: In the list, assigned elements come before unassigned elements.

Table 29: Control element context menu items
Entry Meaning

Assign

Assign object to the selected base object.

Remove

Remove assignment of object to base object.

Assign child objects

In a hierarchical structure, assign the selected object and its child objects to the base object.

Remove child objects

In a hierarchical structure, remove the assignments of the selected object and its child object to the base object.

Assign all objects

Assign all existing objects to the base object.

Remove all assignments

Remove all assignments to the base object.

Search

Opens the search dialog.

Go to object

Go to the selected object.

Go to assigned object

Go to this object's assigned base object.

Show objects already assigned to other objects.

Objects that are assigned to other objects are shown in the Add assignments pane.

Hide objects already assigned to other objects.

Objects that are assigned to other objects are hidden in the Add assignments pane.
