Identity Manager 9.0 LTS - User Guide for One Identity Manager Tools User Interface

Use the slider to set a value within a defined range. The value appears next to the slider and can be displayed in full with the tooltip. The color indicates how critical the value is assessed to be.

Figure 13: Slider

Entering scripts

This input field is used in the editors when the input data needs to have a specified syntax (for example SQL, XML, or VB.Net). It has an advanced edit mode that provides additional actions.

To switch to advanced mode

Press Ctrl + Alt + Enter or click the button at the bottom right.

Figure 14: Directly entering a database query

Table 22: Meaning of icon in advanced edit mode
Icon	Meaning
	Quits advanced edit mode.
	Undoes last change.
	Redoes last change.
	Cuts selected code.
	Copies selected code into clipboard.
	Inserts code from clipboard.
	Deletes selected code.
	Decreases insert.
	Increases insert.
	Automatic text formatting.
	Formats text selection automatically.
	Shows/hides line numbers.
	Inserts comments.
	Removes comments.
	Inserts or removes line numbers.
	Inserts or removes automatic line breaks.
	Shows or hides spaces and tabs.
	Searches within code.
	Inserts code snippet.
	Shows list of objects properties.
	Shows auto completion list.
	Shows list with parameter information.
	Shows additional information.

Table 23: Shortcut for editing scripts
Shortcut	Description
Ctrl + C	Copy to clipboard.
Ctl + Ins	Copy to clipboard.
Ctrl + X	Cut and copy to clipboard.
Shift + Del	Cut and copy to clipboard.
Ctrl + L	Cut row and copy to clipboard.
Ctrl + V	Paste from clipboard.
Shift + Ins	Paste from clipboard.
Ctrl + Y	Redo action.
Ctrl + Shift + Z	Redo action.
Ctrl + Z	Undo action.
Backspace	Remove character behind cursor.
Shift + Backspace	Remove character behind cursor.
Ctrl + Backspace	Remove word behind cursor.
Del	Delete character in front of cursor.
Ctrl + Shift + L	Delete row.
Ctrl + Del	Delete to end of next word.
Data	Insert line break.
Shift + Return.	Insert soft line break.
Ctrl + Return	Insert row above.
Ctrl + Shift + Return	Insert row below.
Ctrl + Space	Auto-complete.
Ctrl + Space + Space	Show list with parameter information.
Tab	Insert indent/tab.
Shift + Tab	Remove indent/tab.
Ctrl + U	Change marked characters to lowercase.
Ctrl + Shift + U	Change marked characters to uppercase.
Ins	Toggle insert mode.
Ctrl + T	Swap characters in front and behind cursor.
Ctrl + Shift + T	Swap words in front and behind cursor.
Shift + Alt + T	Swap row with previous row.
Alt + PgUp	Move row up.
Alt + PgDn	Move row down.
PgUp	Move up
PgDn	Move down.
Left arrow	Move left.
Right arrow	Move right.
Ctrl + Left arrow	Move to previous word.
Ctrl + Right arrow	Move to next word.
Home	Move to start of line.
End	Move to end of line.
Ctrl + Home	Move to start of script.
Ctrl + End	Move to end of script.
PgDn	Move up a page.
PgUp	Move down a page.
Ctrl + PgUp	Move to visible start.
Ctrl + PgDn	Move to visible end.
Ctrl + ]	Move to next bracket. (not possible on German keyboard)
Ctrl + Down arrow	Scroll down.
Ctrl + Up arrow	Scroll up
Ctrl + F	Open search dialog.
F3	Search next.
Ctrl + F3	Search forward.
Shift + F3	Search backward.
Ctrl + Shift + F3	Find previous.
Ctrl + H	Replace.
Ctrl + I	Search forward incrementally.
Ctrl + Shift + I	Search backward incrementally.
Ctrl + Shift + Num-	Reduce code block selection.
Ctrl + Shift + Num+	Extend code block selection.
Esc	Remove selection.
Shift + Down arrow	Extend selection down.
Shift + Up arrow	Extend selection up.
Shift + Left arrow	Extend selection left.
Shift + Right arrow	Extend selection right.
Ctrl + Shift + Left arrow	Extend selection to previous word.
Ctrl + Shift + Right arrow	Extend selection to next word.
Shift + Home	Extend selection to start of line.
Shift + End	Extend selection to end of line.
Shift + Alt + Home	Extend selection to start of script.
Ctrl + Shift + End	Extend selection to end of script.
Shift + PgUp	Extend selection by one page up.
Shift + PgDn	Extend selection by one page down.
Ctrl + Shift + PgUp	Extend selection to visible start.
Ctrl + Shift + PgDn	Extend selection to visible end.
Ctrl + A	Select all.
Ctrl + Shift + W	Select word.
Ctrl + Shift + ]	Select up to the next bracket. (not possible on German keyboard)
Shift + Alt + Down arrow	Extend selected block down.
Shift + Alt + Up arrow	Extend selected block up.
Shift + Alt + Left arrow	Extend selected block left.
Shift + Alt + Right arrow	Extend selected block right.
Ctrl + Shift + Alt + Left arrow	Extend selected block by one word to the left.
Ctrl + Shift + Alt + Right arrow	Extend selected block by one word to the right.
Ctrl + mouse wheel	Adjust text size.

There is additional help provided for creating script code.

Syntax highlighting

The input fields support syntax highlighting depending on the syntax type.

Auto-completion

You can use auto-completion when you write script code. The amount of scripted code to enter is reduced by displaying the names of properties or functions that can be used. To use auto-completion, use the shortcut Ctrl + SPACE in the relevant positions within the input fields. The contents of the list is determined by the key words in the code.

Entering code snippets

One Identity Manager provides code snippets for you to use as templates. You can insert code snippets using the following options:

Using the icon
1. Select the icon.
2. Select the code snippet.
Using a shortcut
1. Press F2.
2. Select the code snippet.
Using an aliases
1. Enter an alias.
2. Use Tab to insert the code snippet.

  NOTE: Be aware of case sensitivity when you enter the alias.

NOTE: If you select a code snippet directly using a shortcut or the icon, a short description and the shortcut name are displayed in a tooltip.

Inputting values using dollar ($) notation

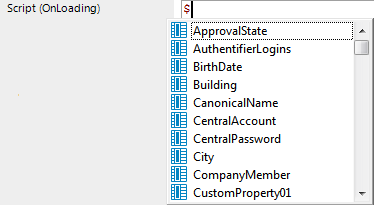

In input fields where a VB.NET term is expected, a help list opens when you enter $. All properties of the current object are displayed. You can also see a tooltip with a detailed description of the property. When you select a foreign key (FK) column, you can navigate to the columns in the relevant table using the arrow keys. To end the selection in the target column, press Enter or double-click. The complete $ notation for your selection should now be shown in the input column. To close the help list without copying any data, press Esc or leave the input field.

Figure 15: Help list for dollar notation

Table 24: Meaning of icons used in the help list for dollar notation.
Icon	Meaning
	Property of current object.
	Primary key (PK).
	Foreign key (FK).
	Dynamic foreign key
	Table
	Special properties
	Script

Table 25: Help list functions for dollar notation
Shortcut	Action
Arrow down key	Opens the help list.
Arrow up key, arrow down key	Navigate to previous or next entry.
Arrow left key, arrow right key	Navigate to the object above or below over the foreign key.
Data	Accepts the value in dollar notation.

Entering database queries

It is sometimes necessary to enter database queries. You can enter the database queries as a SQL query directly or compile the database queries with a wizard. Use the , or buttons to switch to the appropriate view.

Table 26: Meaning of the icons
Icon	Meaning
	Enter a database query as a SQL query.
	WHERE clause wizard.
	Filter designer.

Detailed information about this topic
