One Identity Safeguard for Privileged Sessions 6.9.5 - Installation Guide

One Identity Safeguard for Privileged Sessions (SPS) T1

Unit: 1

Number of disk slots: 2 (internal only)

Redundant PSU: 0

Mainboard: X8SIL-F

Chipset: Intel 3420

NIC:

  • 2x Intel® 82574L Gigabit Ethernet Controller
  • 1x Supermicro AOC-SG-i2 Dual GbE PCI-Ex4

IPMI: Nuvoton WPCM450, SMT (Latest ver.: 3.16)

CPU: 1x Intel Xeon X3430 2.4GHz Quad

RAM: 2x 4GB Samsung DDR3-1600 ECC/Unbuffered STD

HDD: 2x Seagate Constellation ES.3 1TB SATA III

RAID: Software RAID

RAID type: RAID1

Chassis (H x W x D): 43mm x 426mm x 356mm (1U)

Chassis (H x W x D): 1,7" x 16,8" x 14,0" (1U)

Chassis: SuperChassis 512-200B

Weight: 7,7 kg / 17 lbs

Wattage IDLE: 50 Watt

Wattage LOAD: 243 Watt

System MTBF (h): 42216 hours

Electrical: 100 - 240V, 60-50Hz, 4 - 2 Amp

Operating temperature: 10°C to 35°C

Non-operating temperature: -40°C to 70°C

Humidity range: 8% to 90%

Non-operating humidity: 5% to 95%

Compliant to: CE, cCSAus, FCC, VCCI-A

Link to manufacturer documentation

One Identity Safeguard for Privileged Sessions (SPS) T4

Unit: 1

Number of disk slots: 4

Redundant PSU: 1

Mainboard: X9SPU-F

Chipset: Intel C216 Express PCH

NIC

  • 2x Intel® 82574L Gigabit Ethernet Controller
  • 1x Supermicro AOC-SG-i2 Dual GbE PCI-Ex4

IPMI: Nuvoton WPCM450RA0BX, SMT (Latest ver.: 3.38)

CPU: 1x Intel Xeon E3-1275v2 3.5GHz Quad

RAM: 2x 4GB Samsung DDR3-1600 ECC/Unbuffered STD

HDD: 4x Seagate Constellation ES.3 2TB SATA III

RAID:

  • LSI MegaRAID SAS 9271-4i SGL
  • + LSI LSIiBBU09 BBU

RAID type: RAID10

Chassis (H x W x D): 43mm x 437mm x 650mm

Chassis: (H x W x D) 1,7" x 17,2" x 25,6"

Chassis: SuperChassis 815TQ-R500UB

Weight: 16,5 kg / 38 lbs

Wattage IDLE: 60 Watt

Wattage LOAD: 547 Watt

System MTBF (h): 69667 hours

Electrical: 100 - 240V, 60-50Hz, 6.2 - 2.6 Amp

Operating temperature: 10°C to 35°C

Non-operating temperature: -40°C to 70°C

Humidity range: 8% to 90%

Non-operating humidity: 5% to 95%

Compliant to: CE, cCSAus, FCC, VCCI-A

Link to manufacturer documentation

One Identity Safeguard for Privileged Sessions (SPS) T10

Unit: 2

Number of disk slots: 12

Redundant PSU: 1

Mainboard: X9DRW-7TPF+

Chipset: Intel® C602J

NIC:

  • 1x Intel® 82599 Dual Port 10G SFP+
  • 1x Intel® i350 Dual Port Gigabit Ethernet
  • 1x Supermicro AOC-SG-i2 Dual GbE PCI-Ex4

IPMI: Nuvoton WPCM450 BMC, SMT (Latest ver.: 3.39)

CPU: 2x Intel Xeon E5-2630v2 2.6GHz

RAM: 8x 4GB Samsung DDR3-1600 ECC/Unbuffered STD

HDD: 13x Seagate Constellation.2 SAS 1TB 2.5"

RAID:

RAID type: RAID50

Chassis (H x W x D): 89mm x 437mm x 684mm

Chassis (H x W x D): 3,5" x 17,2" x 26,93"

Chassis: SuperChassis 219A-R920WB

Weight: 23,6 kg / 52 lbs

Wattage IDLE: 106 Watt

Wattage LOAD: 987 Watt

System MTBF (h): 36683 hours

Electrical: 100 - 240V, 50-60Hz, 11 - 4.5 Amp

Operating temperature: 10°C to 35°C

Non-operating temperature: -40°C to 70°C

Humidity range: 8% to 90%

Non-operating humidity: 5% to 95%

Compliant to: CE, cCSAus, FCC, VCCI-A

Link to manufacturer documentation

One Identity Safeguard for Privileged Sessions (SPS) Appliance 3000

Unit: 1 U

Drive Bays: 8 x 2.5

Redundant PSU: Yes

NIC: 4 x 1GBase-T Ethernet ports

IPMI: version 2.0

CPU: Intel Xeon E3-1275 v6 3.80GHz

Memory: 2x 16GB

HDD: 4x 2TB

RAID: LSI MegaRAID SAS 9361-4i

RAID Type: RAID 5

Usable Storage: 6TB

Chassis (W x H x D): 17.2" x 1.7" x 23.5" (437 x 43 x 650 mm)

Weight: 35 lbs (15.9kg)

Wattage IDLE / LOAD: N/A

Electrical: 500W Redundant AC-DC Power Supplies

Operating Temperature: 5°C to 35°C (41°F to 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity Range: 8% to 90% (non-condensing)

Non-operating Humidity: 5% to 95% (non-condensing)

Compliant to: CE, cCSAus, FCC, VCCI-A

Link to manufacturer documentation

List of appliance ports

  1. Redundant power supplies

  2. Serial port

  3. 2x USB ports

  4. 2x USB ports

  5. 2x RJ45 GbE Ethernet ports

  6. VGA port

  7. 4 x 1GBase-T Ethernet ports

  8. Dedicated IPMI LAN port

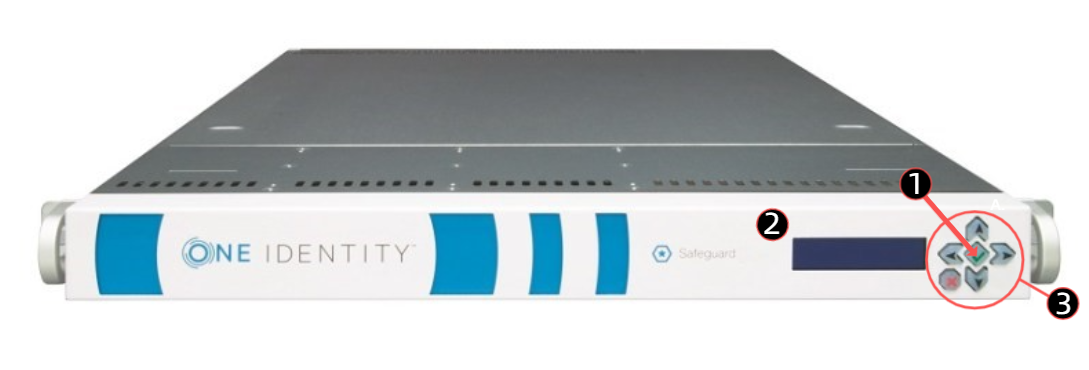

Front view of the appliance

  1. Power On/Off

  2. No information is displayed on this LCD screen. If it lights up when the power is turned on, the device is working properly.

  3. These buttons (with the exception of the Power button) have no function and are for display only on this device. If they light up when the power is turned on, the device is working properly.
