Identity Manager 8.2.1 - Target System Synchronization Reference Guide

Target system synchronization with the Synchronization Editor Working with the Synchronization Editor Basics of target system synchronization Setting up synchronization
Starting the Synchronization Editor Creating a synchronization project Configuring synchronization
Setting up mappings Setting up synchronization workflows Connecting systems Editing the scope Using variables and variable sets Setting up start up configurations Setting up base objects
Overview of schema classes Customizing the synchronization configuration Checking the consistency of the synchronization configuration Activating the synchronization project Defining start up sequences
Running synchronization Synchronization analysis Setting up synchronization with default connectors Updating existing synchronization projects Script library for synchronization projects Additional information for experts Troubleshooting errors when connecting target systems Configuration parameters for target system synchronization Configuration file examples

Mapping editor

The schema property mappingClosed is edited with the mapping editor. The mapping editor is divided into two schema view and two rule views. Each mapping editor view has its own toolbar.

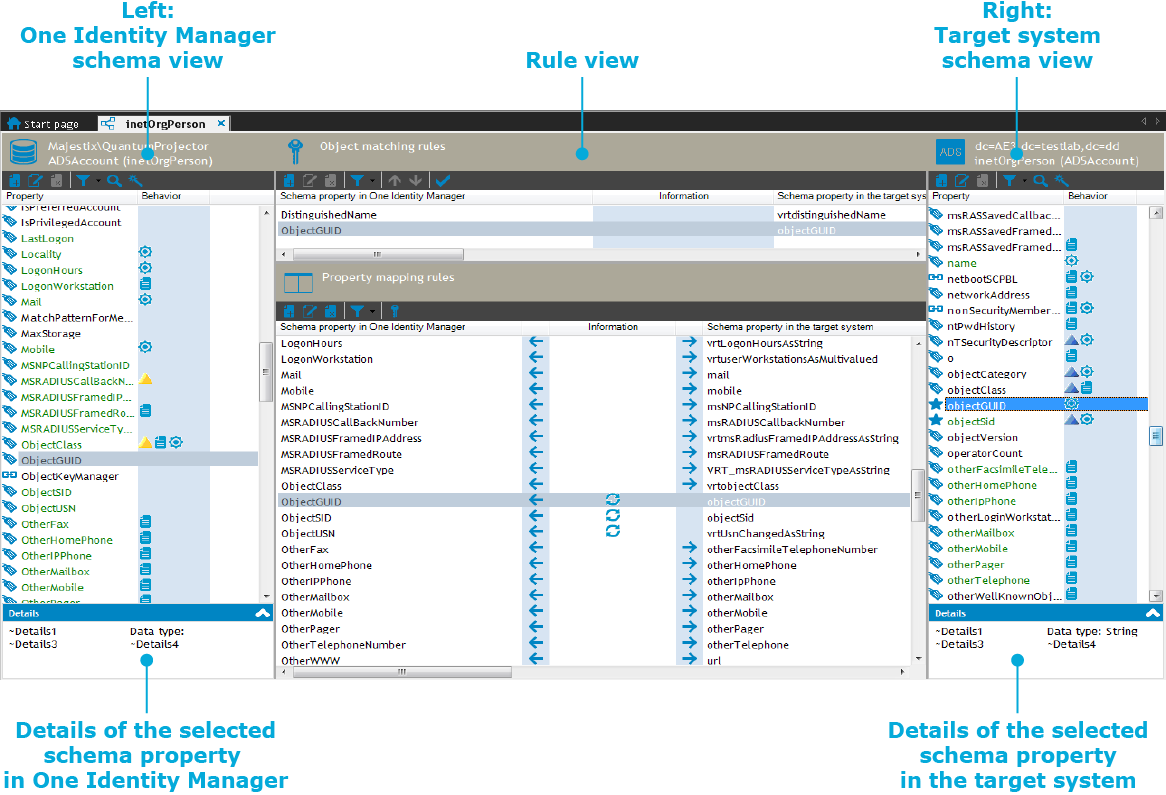

Figure 15: Views in the mapping editor

TIP:

To display mapped schema properties of a shelfClosed

  • Select a property mapping rule or an object mapping rule in the shelf view.

    All the schema properties mapped by this shelf are displayed.

    - OR -

  • Select the schema property in the schema view.

    All the property mapping and object mapping rules mapped by this schema property are marked.

Table 32: Meaning of icons in the navigation view
Icon Meaning
Create a new mapping.
Edit mapping.
Delete mapping.
Table 33: Meaning of icons in the schema tool bar
Icon Meaning
Add schema property.
Edit selected schema property.
Delete selected schema property.
FilterClosed schema properties.
Search schema properties.
Filter schema properties with similar names in other schema respectively.
Table 34: Meaning of icons in the rule tool bar
Icon Meaning
Add rule.
Edit selected rule.
Delete selected rule.
Filter rules.
Transform selected property mapping rule into an object matching rule.
Sorts object matching rule.
Tests object matching rule.
Create new rules with help of the mapping wizard.
Table 35: Meaning of icons in the schema view
Icon Meaning
The schema property is a unique key.
The schema property references another schema property.
Schema propertyClosed with a special feature.
User-defined virtual schema property.
The schema property contains several values.
Mandatory property.
Rule based mandatory property.
The schema property is read-only.
The schema property is write-only.

The value of the schema property is calculated automatically.

Scheme property that contains the revision counterClosed.

Table 36: Meaning of icons in the rule view
Icon Meaning
Direction of synchronization: One Identity Manager.
Direction of synchronization: target system.
A condition limited use of the rule.
Mapping in the opposite direction of synchronization is permitted.
Indicates configuration errors. Mouse over the icon to display the error description.

How to create a mapping

To create a mappingClosed

  1. Select the Mappings category.
  2. Click in the navigation view.
  3. Enter the general properties of a mapping and create the required schema classes.
  4. Click OK.

How to edit a mapping

To edit the general properties of a mappingClosed

  1. Select the Mappings.
  2. Select a mapping in the navigation view.
  3. Click in the navigation view toolbar.
  4. Click Edit category.to enable the properties available for editing.
  5. Edit the mapping's properties.
  6. Click OK.

How to delete a mapping

To delete a mappingClosed

  1. Select the Mappings category.
  2. Select a mapping in the navigation view.
  3. Click in the navigation view.
  4. Confirm the security prompt with Yes.
  5. Save the changes.
