Safeguard for Privileged Passwords can be run from:
This section covers the background and steps you need to set up the hardware appliance for the first time.
In addition to this guide, the One Identity Safeguard for Privileged Passwords package contents includes the following:
(2) Country Specific Power cables*
Rails
Short Rail Bracket Sets
Rail Screws
5 foot Ethernet cable
6 foot Serial Cable
USB to 2.0 Serial Cable
Port Blockers
*The included power cords are approved by use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location. The power cord is for AC mains installation only.
If any items are missing from your package, contact Support at: https://support.oneidentity.com
The following diagrams show the front and back panels on the One Identity Safeguard for Privileged Passwords 4000 Appliance, 3000 Appliance and 2000 Appliance.
Figure 1: Front and back panel of 4000 Appliance

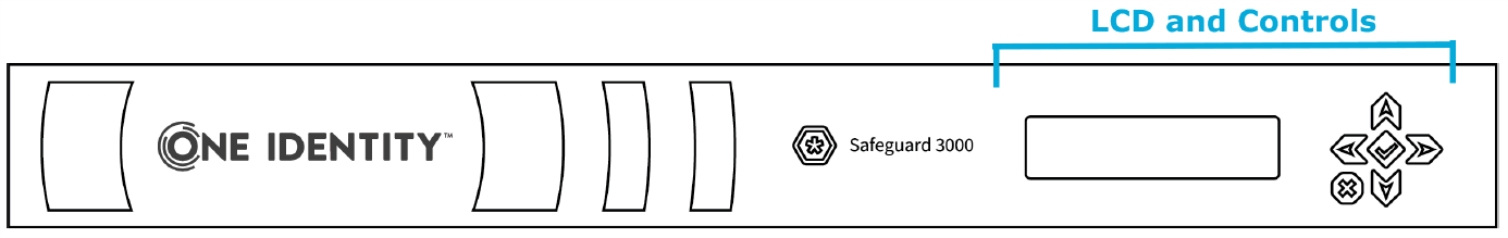

Figure 2: Front and back panel of 3000 Appliance

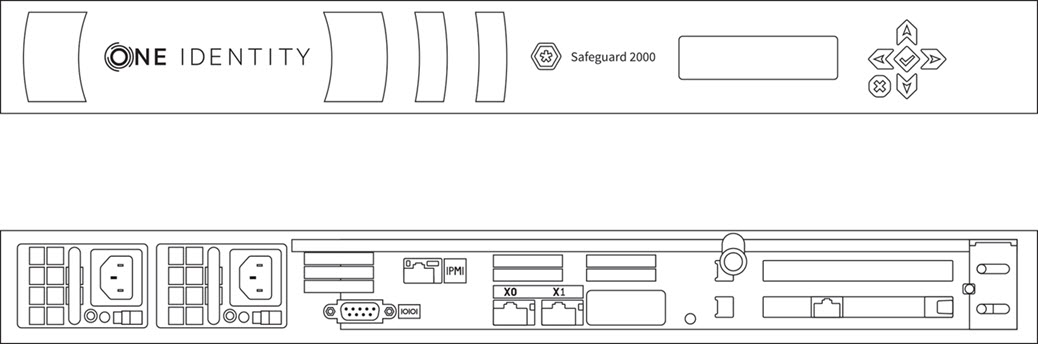

Figure 3: Front and back panel of 2000 Appliance
Input (輸入/输入):100-140 / 180-240 Vac, 50-60 Hz, 8.5-6.0 / 5.0-3.8 A
Operating Temperature (工作溫度): 5 C to 35 C
Altitude of Operation (m)…: Up to 2000 m (操作高度（m）：最高2000 m)
Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/-3-3, CISPR 32 Class A, VCCI Class A
Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)
This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his or her own expense.
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
This is a Class A Information Product, when used in residential environment, it may cause radio frequency interference, under such circumstances, the user may be requested to take appropriate countermeasures.
