Defender 6.5 - Administration Guide

Getting started Managing Defender objects in Active Directory Configuring security tokens Securing VPN access Securing Web sites Securing Windows-based computers Defender Management Portal (Web interface) Securing PAM-enabled services Delegating Defender roles, tasks, and functions Automating administrative tasks Administrative templates Integration with Active Roles Push Notifications Appendices
Appendix A: Enabling diagnostic logging Appendix B: Troubleshooting common authentication issues Appendix C: Troubleshooting DIGIPASS token issues Appendix D: Defender classes and attributes in Active Directory Appendix E: Defender Event Log messages Appendix F: Defender Client SDK Appendix G: Defender Web Service API

Step 3: Configure VPN connection on the client computer

In this step, you need to configure the authentication settings of the VPN connection you created on the VPN client computer.

To configure VPN connection

  1. Open the properties of the VPN connection you created on the VPN client computer in Step 1: Install Defender EAP Agent.
  2. In the Properties dialog box, click the Security tab.

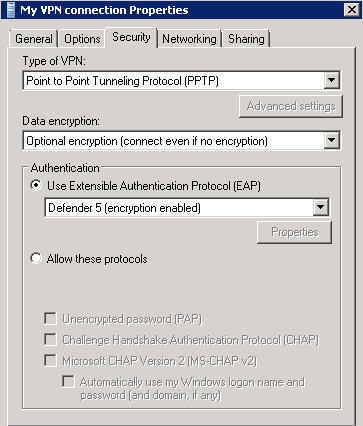

  3. Make sure that in the Authentication area you select the Use Extensible Authentication Protocol (EAP) option, and then select Defender 5 (encryption enabled) from the list below the option:





  1. Click OK to close the dialog box.

    Now when you connect through the configured VPN connection on the client computer, a Defender dialog box opens prompting you to type the response provided by your token.

Authenticating via EAP Agent

When you attempt to access information via your VPN, the Defender authentication dialog box is displayed:





In the Response field, type the response displayed on your token. Select OK. If authentication is successful, you are allowed to access the network.

Securing Web sites

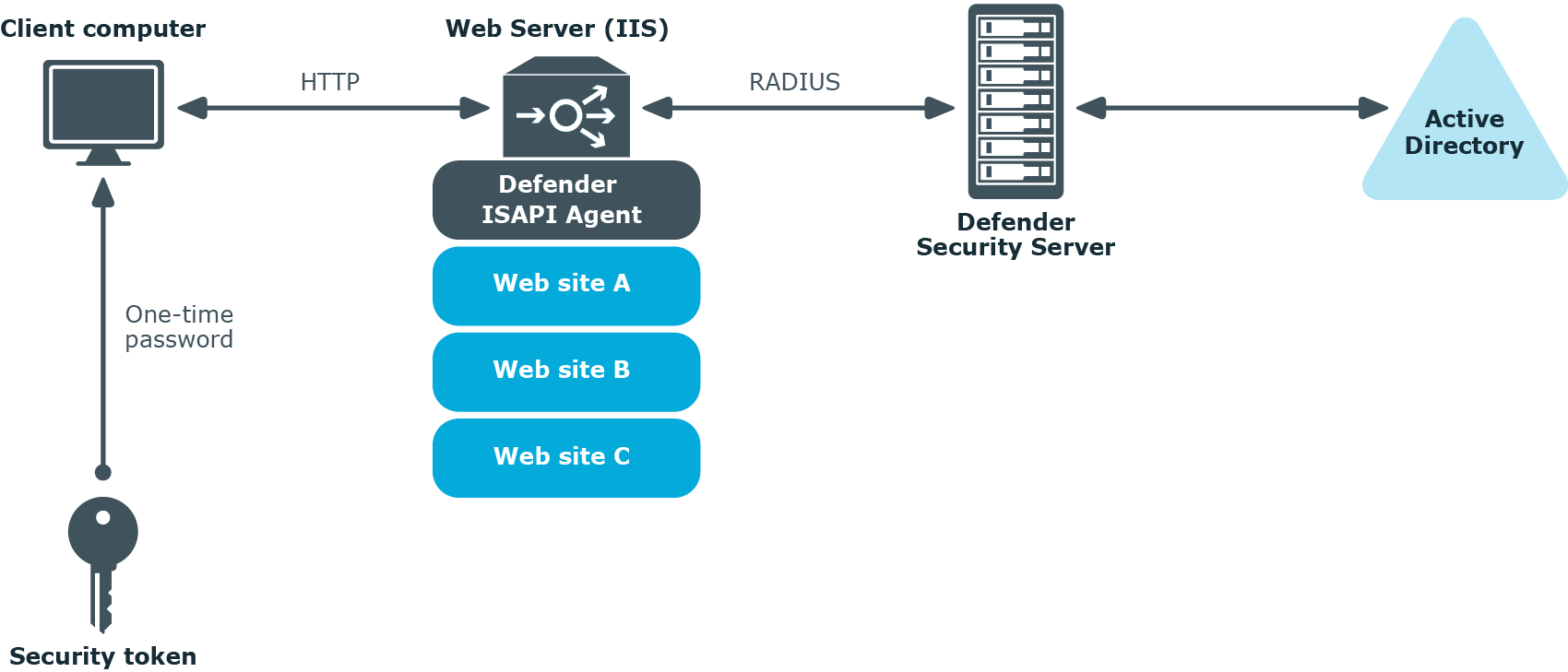

You can use Defender to secure access to websites hosted on Microsoft Web Server (IIS). For that you need to use the Defender component called the ISAPI Agent.





The ISAPI Agent acts as an ISAPI filter and requires users to authenticate via Defender in order to get access to the websites hosted on IIS.

Installing ISAPI Agent

To install ISAPI Agent

  1. Under a local administrator account, run the DefenderISAPIAgent.exe file supplied with the Defender distribution package.
  2. Follow the steps in the wizard to complete the ISAPI Agent installation.
  3. On the completion page of the wizard, select the Start Defender ISAPI Agent Configuration tool check box to configure the agent.

    For more information about available configuration settings, see Configuring ISAPI Agent.
