Identity Manager 8.2.1 - Administration Guide for Connecting to Microsoft Exchange

Managing Microsoft Exchange environments Synchronizing a Microsoft Exchange environment
Setting up initial synchronization with Microsoft Exchange Customizing the synchronization configuration Running synchronization Tasks following synchronization Troubleshooting Ignoring data error in synchronization
Basic data for managing a Microsoft Exchange environment Microsoft Exchange structure Microsoft Exchange mailboxes Microsoft Exchange mail users and Microsoft Exchange mail contacts Microsoft Exchange mail-enabled distribution groups Microsoft Exchange dynamic distribution groups Microsoft Exchange mail-enabled public folders Extensions for supporting Exchange hybrid environments Error handling Configuration parameters for managing a Microsoft Exchange environment Default project template for Microsoft Exchange Processing methods of Microsoft Exchange system objects Microsoft Exchange connector settings

Adding Microsoft Exchange mail-enabled distribution groups to Microsoft Exchange dynamic distribution groups

As from Microsoft Exchange Server 2010, you can add dynamic distribution groups to mail-enabled distribution groups.

To add a dynamic distribution groups to mail-enabled distribution groups

  1. In the Manager, select the Active Directory > Exchange system administration > <Organization> > Recipient configuration > Dynamic distribution groups category.

  2. Select the dynamic distribution group in the result list and run the Assign distribution groups task.

  3. In the Add assignments pane, assign the distribution groups.

    TIP: In the Remove assignments pane, you can remove distribution groups assignments.

    To remove an assignment

    • Select the distribution group and double-click .

  4. Save the changes.
Related topics

Microsoft Exchange mail-enabled public folders

Mail-enabled public folders are loaded into the One Identity Manager database by synchronization and cannot be edited in One Identity Manager.

To display mail-enabled public folders

  1. In the Manager, select the Active Directory > Exchange system administration > <Organization> > Recipient configuration > Mail-enabled public folders category.

  2. Select the mail-enabled distribution group in the result list.

  3. Select the Change main data task.

To display mail acceptance for mail-enabled public folders

  1. In the Manager, select the Active Directory > Exchange system administration > <Organization> > Recipient configuration > Mail-enabled public folders category.

  2. Select the mail-enabled distribution group in the result list.

  3. Select the Assign mail acceptance task to display recipients whose messages are accepted.

    - OR -

    Select the Assign mail rejection task to display recipients whose messages are rejected.

To display the sent permission for a mail-enabled public folder

  1. In the Manager, select the Active Directory > Exchange system administration > <Organization> > Recipient configuration > Mail-enabled public folders category.

  2. Select the mail-enabled distribution group in the result list.

  3. Select the Assign send permissions task.

Table 40: Mail-enabled public folder main data
Property Description

Exchange organization

Name of the organization.

Public Folder

Connected public folder.

Name

Name of the mail-enabled public folder.

Alias

Unique alias for further identification of the mail-enabled public folder.

Display name

Display name of the mail-enabled public folder.

Simple display

Simple display name for systems that cannot interpret all the characters of normal display names.

Domain

Active Directory domain of the mail-enabled public folder.

Container

Active Directory container of the mail-enabled public folder.

Proxy addresses

Other email addresses for the mail-enabled public folder.

Email address

Email address of the mail-enabled public folder.

Alternative recipient

Alternative recipient to which messages from this mail-enabled public folder are forwarded.

Do not display in address list

Specifies whether the mail-enabled public folder is visible in address books. Set this option if you want to prevent the mail-enabled public folder from being displayed in address books. This option applies to all address books.

Max. send size [KB]

Maximum size of message in KB that a mail-enabled public folder can send. The Microsoft Exchange organization global settings in the Exchange System Manager come into effect for message delivery if there are no limitations.

Max. send size [KB]

Maximum size of message in KB that a mail-enabled public folder can receive. The Microsoft Exchange organization global settings in the Exchange System Manager come into effect for message delivery if there are no limitations.

Send and forward

Specifies whether to send and forward messages. If this option is set, messages are sent to alternative recipients and mailbox owners.

Extensions for supporting Exchange hybrid environments

NOTE: The following modules must be installed to support Exchange hybrid:

  • Active Directory Module

  • Microsoft Exchange Module

  • Azure Active Directory Module

  • Exchange Online Module

  • Exchange Hybrid Module

NOTE: You cannot move mailboxes between local Microsoft Exchange and Exchange Online with One Identity Manager. Microsoft offers migration scenarios for moving mailboxes. For detailed information, see your Microsoft documentation.

One Identity Manager support creating, editing, and deleting of remote mailboxes in Exchange hybrid. Remote mailboxes are mailboxes that are declared in the local Microsoft Exchange environment but were added in an Exchange Online environment.

There are the following different types of remote mailboxes:

  • Remote mailbox

  • Remote room mailbox

  • Remote equipment mailbox

  • Remote shared mailbox

These mailboxes can be added to distribution lists or be given sending limits in the local Microsoft Exchange environment, for example.

The synchronization server running the Microsoft Exchange connector is responsible for synchronizing remote mailboxes. The other target system involved (Active Directory, Microsoft Exchange, Azure Active Directory, and Exchange Online) must be synchronized in order to access remote mailboxes.

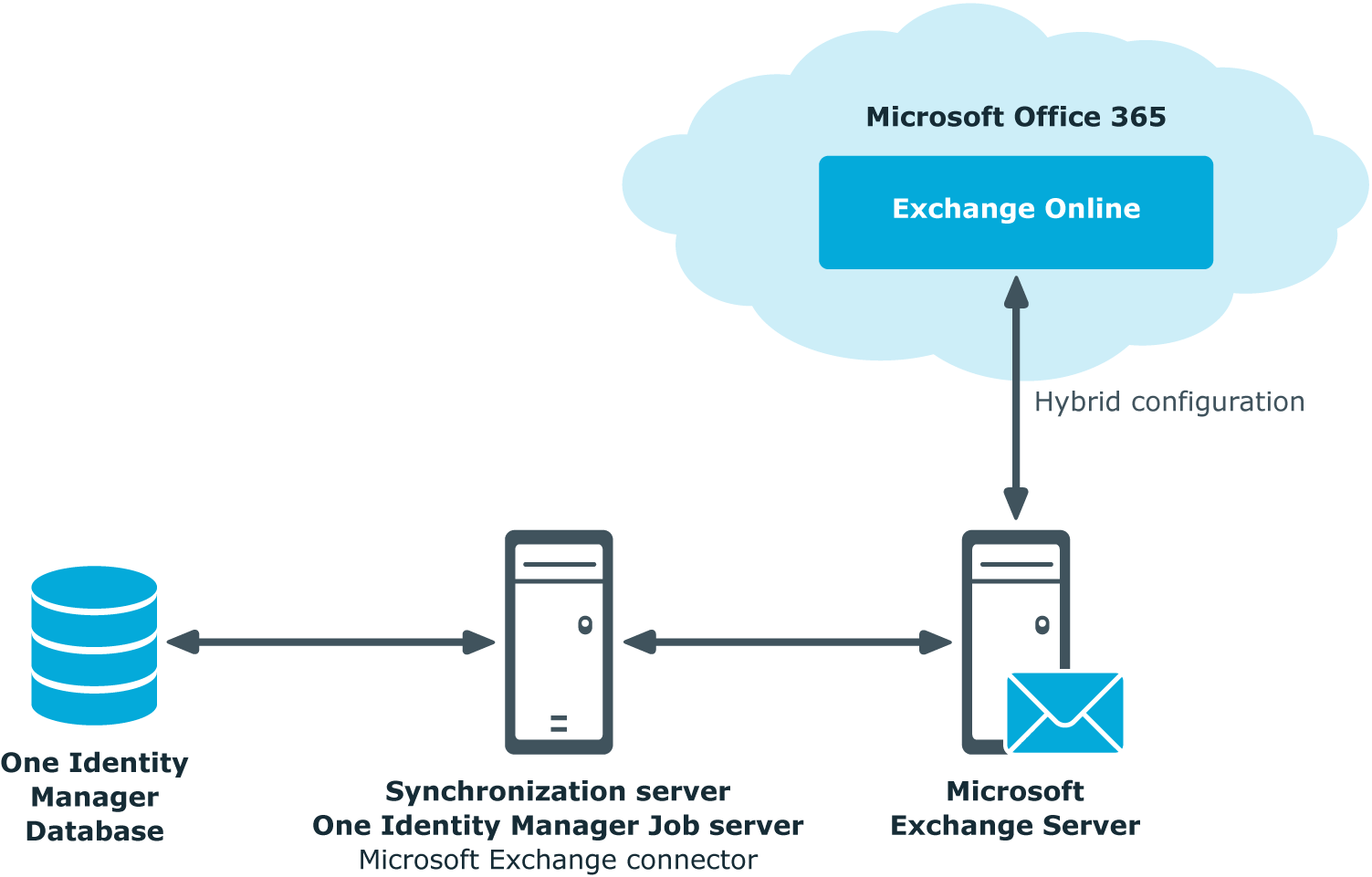

Figure 2: Architecture for synchronization

Detailed information about this topic

Advice for synchronizing remote mailboxes

Take the following into account when synchronizing Exchange hybrid remote mailboxes:

  • The mapping for remote mailboxes is part of the Microsoft Exchange project template. Remote mailboxes are synchronized using the Microsoft Exchange connector.

  • If an Exchange hybrid environment already exists but there is no Exchange hybrid module installed, a warning appears when you synchronize. Install the Exchange hybrid module and create a new synchronization project.

  • The following order for is recommended for synchronizing the target systems.

    1. Azure Active Directory

    2. Local Active Directory (in parallel with Azure Active Directory possible)

    3. Exchange Online

    4. Local Microsoft Exchange (if possible, according to Exchange Online)

  • In One Identity Manager, the connection must be defined between the local Microsoft Exchange organization (EX0Organization) and the corresponding Azure Active Directory tenant (AADOrganization).

    This connection is normally created automatically when the synchronization project is created for local Microsoft Exchange. This assumes that Azure Active Directory was already loaded in to the One Identity Manager at the time. You can establish this link manually at any time.

    To declare the Azure Active Directory tenant in a Microsoft Exchange organization

    1. In the Manager, select the Active Directory > Exchange system administration category.

    2. Select the organization from the result list.

    3. Select the Change main data task.

    4. On the Hybrid configuration tab, under Azure Active Directory tenant, select the Azure Active Directory tenant to which your local Microsoft Exchange is connected.

    5. Save the changes.

Related topics
