The membership tree shows the direct and indirect assignments to a base object. It also shows the source of the indirectly assigned objects. This means that the object was assigned to a base object through a dynamic role, for example, or through inheritance.
-
Only the assigned elements are displayed in the Remove assignments pane. You can remove the assignments here.
-
Under Add assignments you can see all the elements.
Make new assignments or remove existing ones here. If allowed, you can use a filter to further restrict the selection of elements you want to show.
NOTE: Objects marked for deletion and outstanding objects are struck through on the overview form.
To activate or deactivate an assignment
-
Use the control's context menu.
- OR -
-
Double-click an entry.

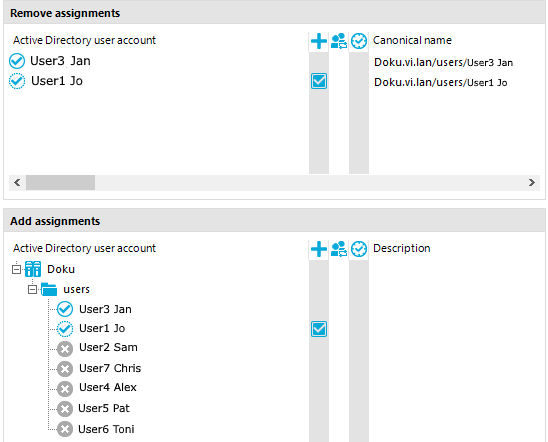

Figure 24: Displaying assignments
Icon | Meaning |
---|---|
|
Object is assigned directly to the selected base object. |
|
Object is assigned indirectly to the selected base object. |
|
Object is assigned directly and indirectly to the selected base object. |
|
Object is not assigned to a base object. |
|
Inheritance interruption. Only when objects are assigned in hierarchical structures. |
|
Indirect assignment. |
|
Assignment through dynamic roles. |
|
Assignment not yet effective. The DBQueue Processor has not yet calculated the assignment. |
|
The change in value is planned for a specific date and time. |
NOTE: The list displays assigned elements before unassigned elements.
Entry | Meaning |
---|---|
Assign |
Directly assign the selected object to the base object. |
Remove |
Remove the assignment of the selected object to the base object. |
Assign child objects |
In a hierarchical structure, assign the selected object and its child objects to the base object. |
Remove child objects |
In a hierarchical structure, remove the assignments of the selected object and its child object to the base object. |
Assign all objects |
Directly assign all existing objects to the base object. |
Remove all assignments |
Remove all direct assignments to the base object. |
Search |
Opens the search dialog. |
Go to object |
Go to the selected object. |
Extended properties |
Switches to the detailed form for the selected object, where you can make additional assignments. A prerequisite for this is that the selected object is assigned and this assignment has been saved. |
NOTE: Use the Search function to search the entire assignment tree for the occurrence of specific texts. The search sequence does not follow the displayed hierarchical structure of the tree, but instead the internal structures of the control element. As such, the search seems to jump through the tree at random. All records are searched to find the requested object.
