Safeguard for Privileged Passwords can be run from:
- The One Identity Safeguard for Privileged Passwords
- A virtual machine
- The cloud
This section covers the background and steps you need to set up the hardware appliance for the first time.
Hardware appliance
Package contents
Front and back panels
Operating conditions and regulatory compliance
Setting up the hardware appliance
Lights Out Management (BMC)
Warnings and precautions
Standardized warning statements for AC systems
Virtual machine
Using the virtual appliance and web management console
Setting up the virtual appliance
Support Kiosk
Virtual appliance backup and recovery
Completing the appliance setup
Cloud deployments
Cloud deployment considerations
AWS deployment
Azure deployment
OCI deployment
Virtual appliance backup and recovery
System requirements and versions
Hardware appliance
Hardware appliance
Package contents
In addition to this guide, the One Identity Safeguard for Privileged Passwords package contents includes the following:
- Safeguard for Privileged Passwords appliance
-
(2) Country Specific Power cables*
-
Rails
-
Short Rail Bracket Sets
-
Rail Screws
-
5 foot Ethernet cable
-
6 foot Serial Cable
-
USB to 2.0 Serial Cable
-
Port Blockers
*The included power cords are approved by use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location. The power cord is for AC mains installation only.
If any items are missing from your package, contact Support at: https://support.oneidentity.com
Front and back panels

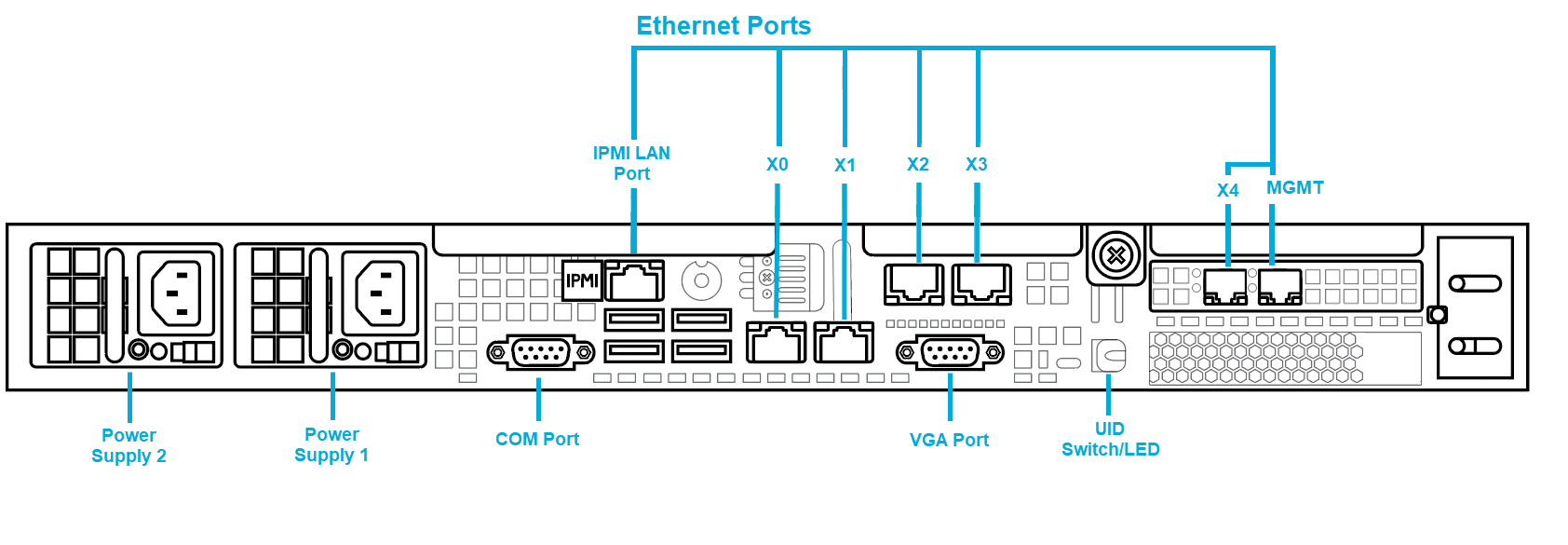

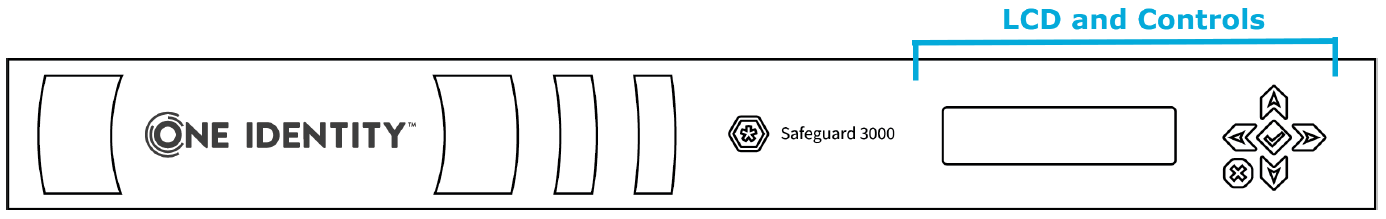

The following diagrams show the front and back panels on the One Identity Safeguard for Privileged Passwords
Figure 1: Front and back panel of 4000 Appliance
Figure 2: Front and back panel of 3000 Appliance
Figure 3: Front and back panel of 2000 Appliance
Operating conditions and regulatory compliance
Operating conditions (運行條件)
Input (輸入/输入):100-140 / 180-240 Vac, 50-60 Hz, 8.5-6.0 / 5.0-3.8 A
Operating Temperature (工作溫度): 5 C to 35 C
Altitude of Operation (m)…: Up to 2000 m (操作高度（m）：最高2000 m)
Regulatory compliance
Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/-3-3, CISPR 32 Class A, VCCI Class A
Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)
Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe)
FCC warning
This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his or her own expense.
CE Mark warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
VCCI warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
Taiwan BSMI Class A Warning Statement
This is a Class A Information Product, when used in residential environment, it may cause radio frequency interference, under such circumstances, the user may be requested to take appropriate countermeasures.
