When creating a group in the IBM i database, the following LDAP attributes must be defined:
-
objectclass
-
os400-profile
-
os400-groupmember (this is not mandatory but if omitted, a user profile will be created instead)
Mandatory IBM i group attributes
Property mapping rules
-
CanonicalName ← vrtEntryCanonicalName
vrtEntryCanonicalName is a virtual property, set to the canonical name of the object in the connector.
Sample value:
AS4001.MYCOMPANY.COM/ACCOUNTS/GROUP123
-
cn ←→ os400-profile
On the IBM i system, os400-profile is the group ID.
Sample value:
USERGRP
-
DistinguishedName ← vrtEntryDN
vrtEntryDN is a virtual property, set to the DN of the object in the connector.
Sample value:
os400-profile=GROUP123,CN=ACCOUNTS,OS400-SYS=AS4001.MYCOMPANY.COM
-
ObjectClass ←→ objectClass
The objectClass attribute (multi-valued) on the IBM i system. Select the Ignore case sensitivity check box.
Sample value:
TOP;OS400-USRPRF
-
StructuralObjectClass ← vrtStructuralObjectClass
vrtStructuralObjectClass on the IBM i system defines the single object class for the object type.
Sample value:
OS400-USRPRF
-
vrtParentDN → vrtEntryParentDN
Create a fixed value property variable on the One Identity Manager side called vrtParentDN equal to a fixed string with the value $GroupLocation$. Map this to vrtEntryParentDN on the IBM i side.
Sample value:
CN=ACCOUNTS,OS400-SYS=AS4001.MYCOMPANY.COM
-
vrtRDN → vrtEntryRDN
Create a virtual attribute on the One Identity Manager side equal to the CN value. Then map this to vrtEntryRDN on the IBM i side.
Sample value:
os400-profile=GROUP123
-
UID_LDAPContainer ← vrtEmpty
This is a workaround needed to support group mappings. Create a new fixed value variable on the IBM i side of type String with no value called vrtEmpty. Map this to UID_LDAPContainer. This generates a property mapping rule conflict.
To resolve the conflict
-
In the Property Mapping Rule Conflict Wizard, highlight Select this option if you do not want to change anything and click OK.
-
-
vrtMember ←→ os400-groupmember
Synchronizing this attribute on the IBM i will manage the group memberships for the user.
-
Create a new virtual entry on the One Identity Manager side of type Members of M:N schema types with the name vrtMember. Select the Ignore case and Enable relative component handling check boxes.
-
Add an entry for LDAPAccountInLDAPGroup(all). Set the left box to UID_LDAPGroup and the right box to UID_LDAPAccount. Set the Primary Key Property to DistinguishedName.
-
Create a new mapping rule of type Multi-reference mapping rule. Set the rule name to Member and the mapping direction to Both directions. Set the One Identity Manager schema property to vrtMember and the IBM i schema property to os400-groupmember.
-
-
UID_LDPDomain ← vrtIdentDomain
Create a fixed-value property variable on the IBM i side called vrtIdentDomain that is set to the value $IdentDomain$. Map this to UID_LDPDomain. This will cause a conflict and the Property Mapping Rule Conflict Wizard opens automatically.
To resolve the conflict
-
In the Property Mapping Rule Conflict Wizard, select the first option and click OK.
-
On the Select an element page, select Ident_Domain and click OK.
-
Confirm the security prompt with OK.
-
On the Edit property page:
-
Clear Save unresolvable keys.
-
Select Handle failure to resolve as error.
-
-
To close the Property Mapping Rule Conflict Wizard, click OK.
Sample value:
AS400_001
-
Related topics
Object matching rules
-
DistinguishedName (primary rule) vrtEntryDN
vrtEntryDN is a virtual property, set to the DN of the object in the connector. This forms a unique ID to distinguish individual user objects on the IBM i system.
To convert this mapping into an object matching rule
-
Select the property mapping rule in the rule window.
-
Click
in the rule view toolbar.
A message appears.
-
Click Yes to convert the property mapping rule into an object matching rule and save a copy of the property mapping rule.
Sample value:
os400-profile=GROUP123,CN=ACCOUNTS,OS400-SYS=AS4001.MYCOMPANY.COM
-
Related topics
Sample group mapping

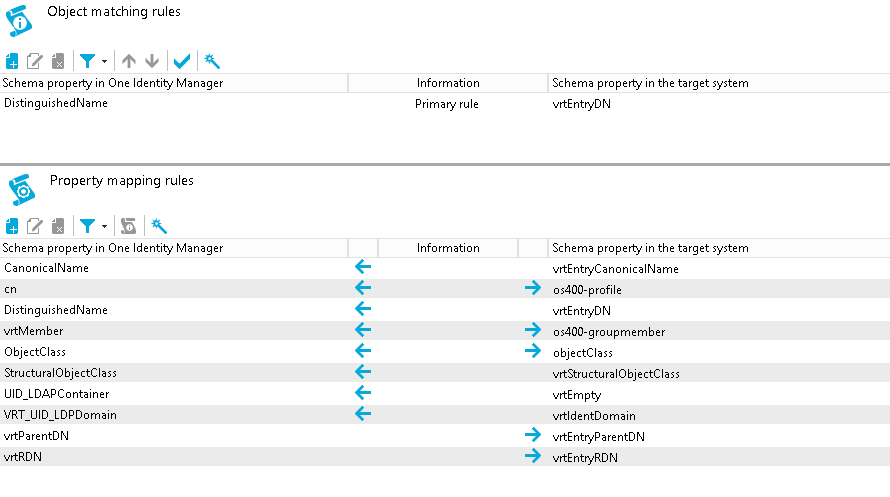

The following figure shows the group mapping in operation.
