Active Roles and supported Azure environments

Active Roles supports 3 different Azure environment configurations: Non-federated, Synchronized Identity, and Federated.

Non-federated

In a non-federated environment, the on-premises domains are not registered in Azure AD, and neither Azure AD Connect nor any third-party synchronization tools are configured in the domain for synchronization. In non-federated environments, the changes made in Active Roles are immediately replicated to Azure or Microsoft 365 using Graph API calls or cmdlet calls. Azure users or guest users are typically created with the onmicrosoft.com UPN suffix.

Example: Non-federated environment configuration

A non-federated environment may have the following settings:

  • On-premises domain: test.local

  • Azure AD Domain: ARSAzure.onmicrosoft.com

  • Azure AD Connect is not configured for synchronization.

The on-premises domain is not registered in Azure. The Azure user is created in Active Roles with the ID of user001@test.local and in Azure as user001@ARSAzure.onmicrosoft.com. The user is created in Azure simultaneously when it is created in Active Roles using a Graph API call.

NOTE: One Identity recommends using Non-federated environments for testing purposes only, and does not recommend setting them up as a live production environment.

Synchronized identity

In a Synchronized identity environment, the on-premises domain is optionally registered in Azure AD, while Azure AD Connect is configured to synchronize the local AD objects to Azure. Azure users or guest users are typically created either with the selected on-premises domain or with the onmicrosoft.com UPN suffix.

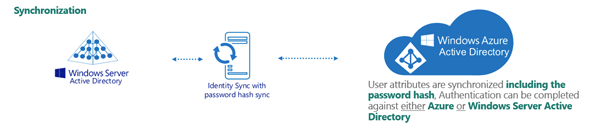

Figure 265: Synchronized identity configuration

Synchronized Identity configuration

Example: Synchronized identity configuration

A synchronized identity environment may have the following settings:

  • On-premises domain: test.local

  • Azure AD Domain: rd4.qsftdemo.com

  • Azure AD Connect is configured for synchronization.

The on-premises domain is optionally registered in Azure. The Azure user is created in Active Roles with the ID of user001@test.local and in Azure as user001@rd4.qsftdemo.com.

Federated

In a federated environment, the on-premises domain is always registered in Azure AD, while Azure AD Connect and Active Directory Federation Services (ADFS) are configured to facilitate synchronization. Azure users and guest users are typically created with the onmicrosoft.com UPN suffix of the selected on-premises domain.

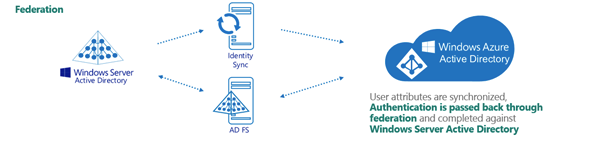

Figure 266: Federated configuration

Federated environment configuration

Example: Federated configuration

A federated configuration may have the following settings:

  • On-premises domain: rd4.qsftdemo.com

  • Azure AD Domain: rd4.qsftdemo.com

  • Azure AD Connect and ADFS are configured for synchronization.

The on-premises domain is registered and verified in Azure. The Azure user is created in Active Roles and Azure AD with the same ID of user001@rd4.qsftdemo.com.

Azure object management supported in various Azure environments

This section provides information about the supported Azure object operations and methods in various Azure environments using the Active Roles Web Interface. Active Roles supports Non-federated, Federated and Synchronized Identity environments.

You can select the Azure environment configuration type in the Active Roles Configuration Center when creating the Azure tenant, as described in Configuring a new Azure tenant and consenting Active Roles as an Azure application. You can modify the configuration type later by changing the Azure properties of the tenant.

Active Roles identifies the environment based on the Azure tenant type and applies the changes accordingly.

Azure object management in a Non-Federated environment

A Non-federated environment is typically used for testing purposes. In a Non-federated environment, most of the Azure properties can be modified, with the exception of attributes that uniquely identify the object (such as UserPrincipalName and ObjectId).

The following table provides information about the operations and methods of operation that can be performed on Azure objects in a Non-federated environment.

Table 123: Supported Azure configurations comparison chart
Object Operation Non-Federated : Method

User

Create Using Graph API
Read Using Graph API and Exchange Online cmdlets
Update Using Graph API and Exchange Online cmdlets
Delete Using Graph API

Guest User

Create Using Graph API
Read Using Graph API
Update Using Graph API
Delete Using Graph API

Security Group

Create Using Graph API
Read Using Graph API
Update Using Graph API
Delete Using Graph API

Mail Enabled Security Group

Create Using Exchange Online cmdlets
Read Using Graph API
Update Using Graph API
Delete Using Graph API

Distribution Group

Create Using Exchange Online cmdlets
Read Using Graph API
Update Using Graph API
Delete Using Graph API

Native Microsoft 365 Group (Cloud-only)

Create

 Using Graph API

Read

 Using Graph API

Update

 Using Graph API

Delete

 Using Graph API

Contacts

Create Using Exchange Online cmdlets
Read Using Graph API
Update Using Exchange Online cmdlets
Delete Using Graph API

NOTE: Active Roles provides cloud-only support only for Native Microsoft 365 Groups management.

Azure object management in Federated and Synchronized Identity environments

Synchronization methods are applicable only in Synchronized and Federated environments and AAD Connect is used to perform the synchronization. Azure non-federated environment does not require synchronization and the direct Graph API calls are used to make the Azure or Microsoft 365 object management.

The following table provides information about the operations and methods of operation that can be performed on Azure objects in Federated and Synchronized Identity environments.

Table 124: Supported Azure configurations comparison chart
Object Operation

Commands

Tabs

 Federated/Synchronized : Method
User Create Created by Graph API
Read Using Graph API and Exchange Online cmdlets
Update Azure properties

Identity

Synced using AAD Connect

Settings

Using Graph API

Job Info

Synced using AAD Connect

Contact Info

Synced using AAD Connect

Licenses

Using Graph API

O365 Admin Roles

Using Graph API

OneDrive

Created by OneDrive Policy using PowerShell commands

Exchange Online properties

Mail Flow Settings

Using Exchange Online cmdlets

Delegation

Using Exchange Online cmdlets

E-mail Address

Synced using AAD Connect

Mailbox Features

Using Exchange Online cmdlets

Mailbox Settings

Using Exchange Online cmdlets

Delete Using Graph API

Guest Users

Create

Invite Guest

Created by Graph API

Read

 Using Graph API

Update

Azure properties

Identity

Synced using AAD Connect

Settings

Using Graph API

Job Info

Synced using AAD Connect

Contact Info

Synced using AAD Connect

Licenses

Using Graph API

O365 Admin Roles

Using Graph API

Exchange Online properties

Mail Flow Settings

Using Exchange Online cmdlets

Delegation

Using Exchange Online cmdlets

E-mail Address

Synced using AAD Connect

Mailbox Features

Using Exchange Online cmdlets

Mailbox Settings

Using Exchange Online cmdlets

Delete

Using Graph API

Security Group Create

  • Created in Azure.

  • Back synchronized to Active Roles.

  • Synced using AAD Connect.

Read Using Graph API
Update Synced using AAD Connect
Delete Using Graph API
Mail Enabled Security Group Create

  • Created in Azure.

  • Back synchronized to Active Roles.

  • Synced using AAD Connect.

Read Using Graph API
Update Synced using AAD Connect
Delete Using Graph API
Distribution Group Create

  • Created in Azure.

  • Back synchronized to Active Roles.

  • Synced using AAD Connect.

Read Using Graph API
Update Synced using AAD Connect
Delete Using Graph API

Native Microsoft 365 Group (Cloud-only)

Create

Using Graph API

Read

Using Graph API

Update

Using Graph API

Delete

Using Graph API

Contacts Create Synced using AAD Connect
Read Using Graph API
Update Synced using AAD Connect
Delete Using Graph API

NOTE:

  • Active Roles provides cloud-only support only for Native Microsoft 365 Group management.

  • "Synced using AAD Connect" in the table means that the object operation is initially performed on the on-premises object. Once the Microsoft Azure AD Connect synchronization cycle is completed, the object is updated in Azure AD or Microsoft 365.

  • For more information on how to perform back synchronization, see Active Roles configuration to synchronize existing Azure AD objects to Active Roles.
