Technical overview

The following illustration shows how Synchronization Service synchronizes data between connected data systems.

Figure 1: Synchronization of data between connected systems

Synchronization Service uses Capture Agents, connected data systems, connectors, connections, and sync workflows to synchronize identity data.

Synchronization Service

Synchronization Service

Synchronization Service performs data synchronization operations and include the Administration Console that provides a graphical user interface for managing connections to data systems and data synchronization operations.

Capture Agent

Synchronization Service Capture Agent allows you to synchronize user passwords between Active Directory domains managed by Synchronization Service and other connected data systems. The following diagram shows how the Password Synchronization feature of Synchronization Service works:

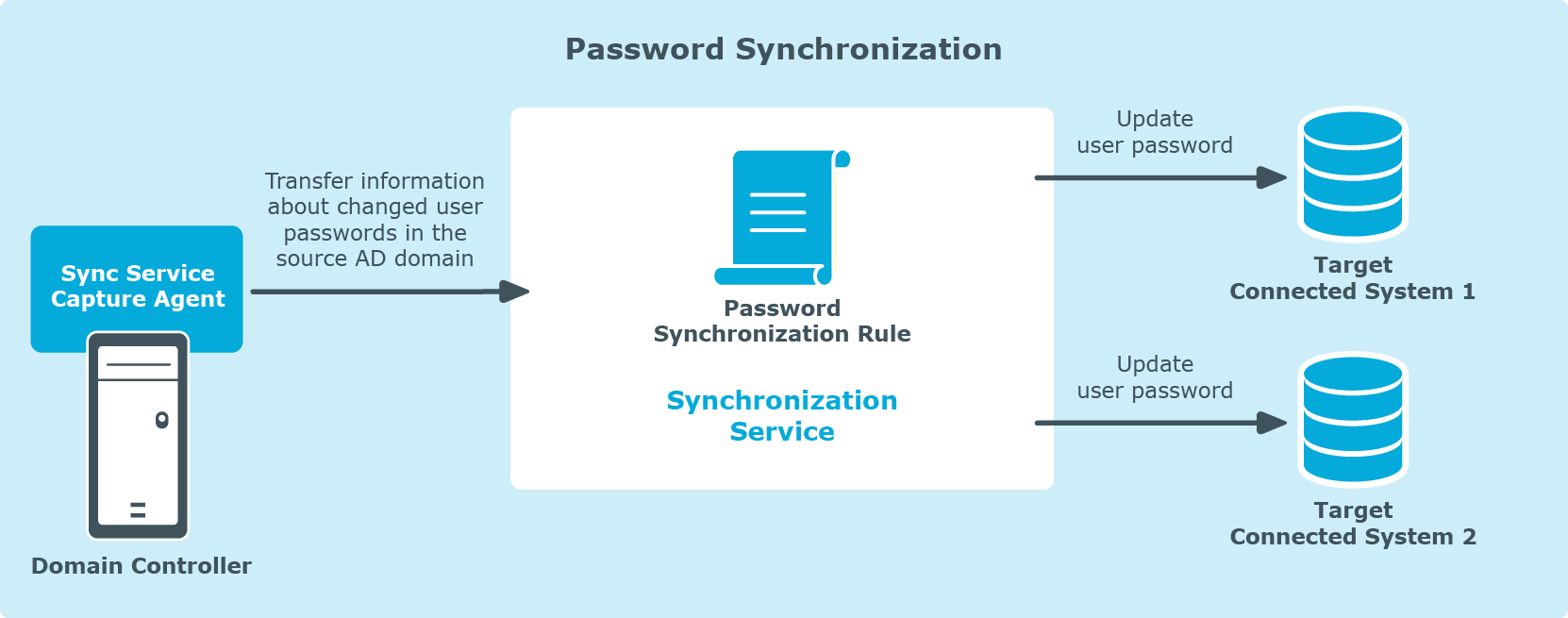

Figure 2: Password synchronization

Capture Agent tracks changes to user passwords in the source Active Directory domain and provides that information to Synchronization Service, which in turn synchronizes the changes with target connected data systems by using the password synchronization rules you specified. To synchronize passwords, you need to install Capture Agent on each domain controller in the Active Directory domain you want to use as a source for the password synchronization operations.

Connectors and connected data systems

Synchronization Service lets you synchronize identity information between a wide variety of external data systems. To synchronize identities, you must connect Synchronization Service to your data systems through special connectors. A connector enables Synchronization Service to access a specific data system and read and synchronize identity data in that system.

Out of the box, Synchronization Service supports the following data systems:

Microsoft Active Directory Domain Services
Microsoft Active Directory Lightweight Directory Services
Microsoft Exchange Server
Microsoft Skype for Business Server
Microsoft Azure Active Directory
Microsoft Office 365
Microsoft SQL Server
Microsoft SharePoint
Active Roles version 7.4.x, 7.3, 7.2, 7.1, 7.0, or 6.9
One Identity Manager version 7.0 (D1IM 7.0)
One Identity Manager version 8.1 or 8.0
Data sources accessible through an OLE DB provider
Delimited text files
Generic LDAP Directory service
MY SQL Database
OpenLDAP Directory service
Salesforce
Service now
IBM DB2 Database
IBM RACF Connector

Oracle Database connector
Oracle Database User Accounts connector
Micro Focus NetIQ Directory connector
Oracle Unified Directory connector
IBM AS/400
