One Identity Safeguard for Privileged Sessions 6.0.6 - Administration Guide

Accessing and configuring One Identity Safeguard for Privileged Sessions (SPS)

One Identity Safeguard for Privileged Sessions (SPS) has a web interface and is configured from a browser. The users of SPS can be authenticated using local, LDAP, or RADIUS databases. The privileges of users are determined by group memberships that can be managed either locally on SPS, or centrally in an LDAP database. Assigning privileges to groups is based on Access Control Lists (ACLs). It is also possible to match groups existing in the LDAP database to a set of SPS privileges. Access control in SPS is very detailed, it is possible to define exactly who can access which parts of the interface and of the stored data.

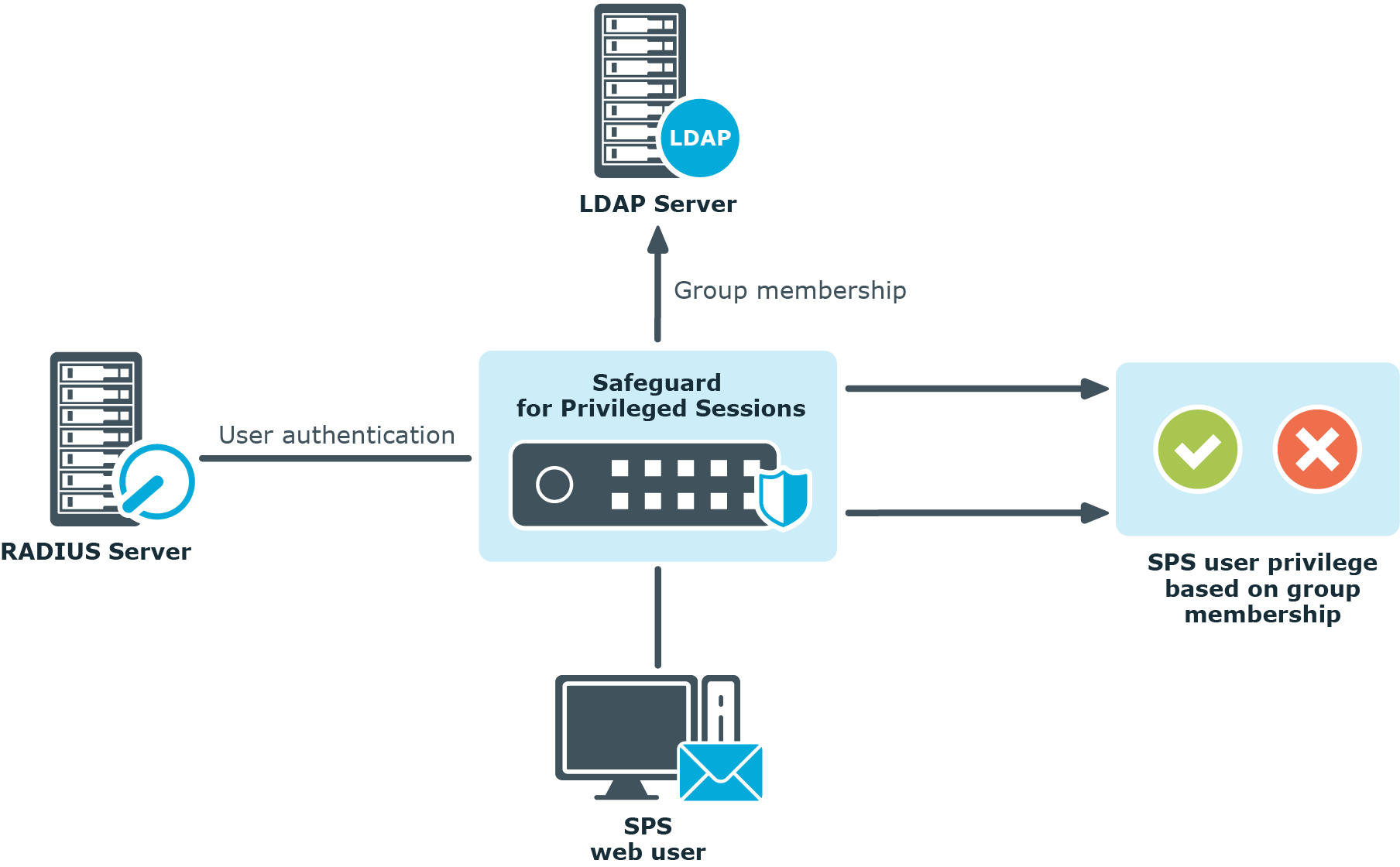

Figure 17: Authenticating the users of SPS

The Welcome Wizard and the first login

This section describes the initial steps of configuring One Identity Safeguard for Privileged Sessions (SPS). Before completing the steps in The initial connection to One Identity Safeguard for Privileged Sessions (SPS), unpack, assemble, and power on the hardware. Connect interface 1 (labelled 1 or EXT) to the local network, or directly to the computer from which SPS will be configured.

The initial connection to One Identity Safeguard for Privileged Sessions (SPS)

One Identity Safeguard for Privileged Sessions (SPS) can be connected from a client machine using web browsers and accessed from the local network.

Starting with version 3.1, SPS attempts to receive an IP address automatically via DHCP. If it fails to obtain an automatic IP address, it starts listening for HTTPS connections on the 192.168.1.1 IP address. Note that certain switch configurations and security settings can interfere with SPS receiving an IP address via DHCP. SPS accepts connections via its interface 1 (labelled 1 or EXT). For details on the network interfaces, see Network interfaces).

If SPS is listening on the 192.168.1.1 address, note that the 192.168.1.0/24 subnet must be accessible from the client. If the client machine is in a different subnet (for example, its IP address is 192.168.10.X), but in the same network segment, the easiest way is to assign an alias IP address to the client machine. Creating an alias IP on the client machine virtually puts both the client and SPS into the same subnet, so that they can communicate. To create an alias IP complete the following steps.

• For details on creating an alias IP on Microsoft Windows, see Creating an alias IP address (Microsoft Windows).

• For details on creating an alias IP on Linux, see Creating an alias IP address (Linux).

• If configuring an alias interface is not an option for some reason, you can modify the IP address of SPS. For details, see Modifying the IP address of One Identity Safeguard for Privileged Sessions (SPS).

Creating an alias IP address (Microsoft Windows)

Purpose

This procedure describes how to assign an alias IP address to a network interface on Microsoft Windows platforms.

Steps

To assign an alias IP address to a network interface on Microsoft Windows platforms

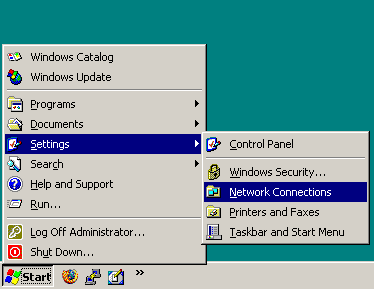

1. Navigate to Start menu > Settings > Network Connections.

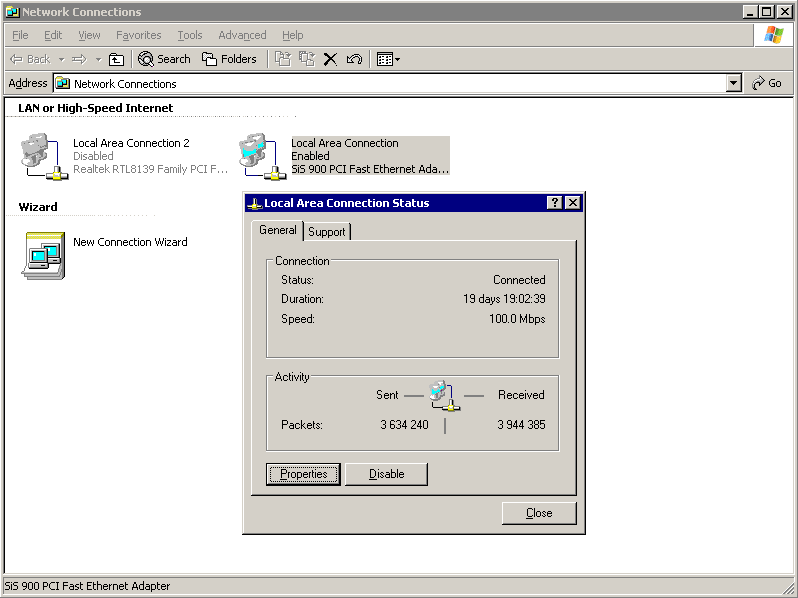

2. Double-click Local Area Connection and then click Properties.

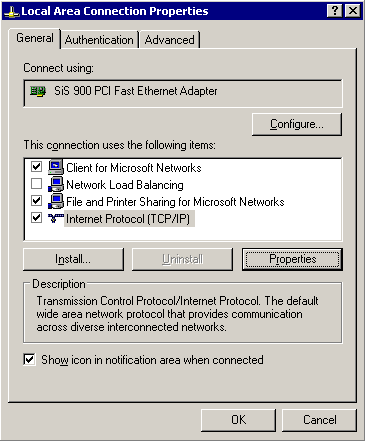

3. Select the Internet Protocol (TCP/IP) component in the list and click Properties.



4. To display the Advanced TCP/IP Settings window, click Advanced.

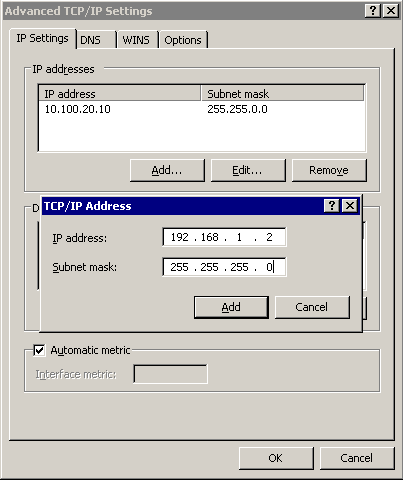

5. Select the IP Settings tab, and click Add in the IP Addresses section.



6. Enter 192.168.1.2 into the IP Address field, and enter 255.255.255.0. into the Netmask field.

   Caution: If your internal network uses the 192.168.1.0/24 IP range, it is possible that the 192.168.1.1 and 192.168.1.2 addresses are already in use. In this case, disconnect One Identity Safeguard for Privileged Sessions (SPS) from the network, and connect a computer directly to interface 1 (labelled 1 or EXT) using a standard cross-link cable.

7. To complete the procedure, click Add.
