Using a custom Authentication and Authorization plugin to authenticate on the target hosts

The following describes how to configure One Identity Safeguard for Privileged Sessions (SPS) to use an Authentication and Authorization plugin (AA plugin) before accessing the target host.

Prerequisites
  • SPS supports AA plugins in the MSSQL, RDP, SSH, and Telnet protocols.

  • In RDP, using an AA plugin together with Network Level Authentication in a Connection Policy has the same limitations as using Network Level Authentication without domain membership.

  • In RDP, using an AA plugin requires TLS-encrypted RDP connections. For details, see "Enabling TLS-encryption for RDP connections" in the Administration Guide.

To configure SPS to use an Authentication and Authorization plugin before accessing the target host

  1. If your plugin supports configuration, then you can create multiple customized configuration instances of the plugin for your site. Create an instance by completing the following steps:

    1. Navigate to Policies > AA Plugin Configurations. Select the plugin to use from the Plugin list.

    2. The Configuration textbox displays the example configuration of the plugin you selected. You can edit the configuration here if you wish to create a customized instance of the plugin.

      NOTE: Plugins created and issued before the release of SPS 5.1 do not support configuration. If you create a configuration for a plugin that does not support this, the affected connection will stop with an error message.

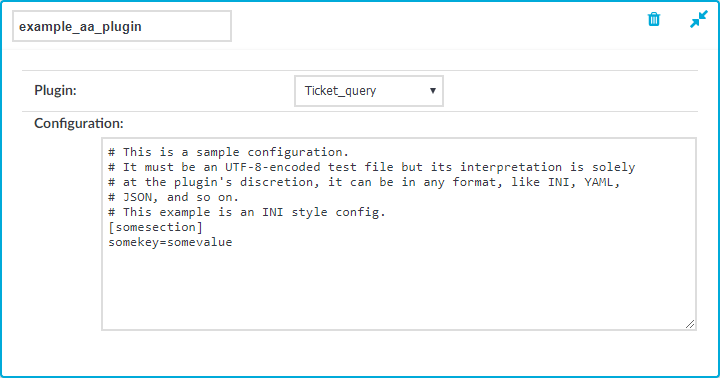

      Figure 342: Policies > AA Plugin Configurations — Creating a customized plugin configuration instance

  2. Navigate to the Connection policy where you want to use the plugin (for example, to RDP Control > Connections), select the plugin configuration instance to use in the AA plugin field, then click .

  3. If the plugin sets or overrides the gateway username of the connection, configure a Usermapping policy and use it in the Connection policy. For details, see "Configuring usermapping policies" in the Administration Guide.

  4. Verify that the configuration works properly: try to establish a test connection. For details, see "Performing authentication with AA plugin in Remote Desktop connections" in the Administration Guide. If the plugin is configured to store any metadata about the connection, these data will be available in the Additional metadata field of the SPS Search interface.

Performing authentication with AA plugin in terminal connections

The following describes how to establish a terminal connection (SSH, TELNET, or TN3270) to a server.

To establish a terminal connection (SSH, TELNET, or TN3270) to a server

  1. Connect to the server.

    To encode additional data as part of the username, you can use the @ as a field separator, for example:

    ssh token_id=id@user@server

    Replace id with your actual token ID.

  2. If One Identity Safeguard for Privileged Sessions (SPS) prompts you for further information (for example, a one-time password), enter the requested information.

  3. Authenticate on the server.

  4. If authentication is successful, you can access the server.

Performing authentication with AA plugin in Remote Desktop connections

The following describes how to establish a Remote Desktop (RDP) connection to a server when the AA plugin is configured.

To establish an RDP connection to a server when the AA plugin is configured

  1. Open your Remote Desktop client application.

  2. If you have to provide additional information to authenticate on the server, you must enter this information in your Remote Desktop client application into the User name field, before the regular content (for example, your username) of the field.

    To encode additional data, you can use the following special characters:

    • % as a field separator

    • ~ as the equal sign

    • ^ as a colon (for example, to specify the port number or an IPv6 IP address)

    For example, to add a token ID before your username, use the following format:

    domain\token_id~12345%Administrator

    Note how domain information is provided. If your server is in a domain, make sure that you specify the domain in this format: putting it in front, followed by a backslash (\).

  3. Connect to the server.

  4. If One Identity Safeguard for Privileged Sessions (SPS) prompts you for further information (for example, a one-time password), enter the requested information.

  5. Authenticate on the server.

  6. If authentication is successful, you can access the server.

Integrating ticketing systems

The plugin framework provided by One Identity Safeguard for Privileged Sessions (SPS) can also be used to integrate SPS to external ticketing (or issue tracking) systems, allowing you to request a ticket ID from the user before authenticating on the target server. That way, SPS can verify that the user has a valid reason to access the server — and optionally terminate the connection if he does not. Requesting a ticket ID currently supports the following protocols:

  • Remote Desktop (RDP)

  • Secure Shell (SSH)

  • TELNET

  • TN3270

Topics:
