Identity Manager 8.1.4 - Administration Guide for Connecting to Custom Target Systems

Managing custom target systems Setting up script-controlled data provisioning in a custom target system Basic data for custom target systems Setting up a custom target system Container structures in a custom target system User accounts in a custom target system Groups in a custom target system Entering permissions controls Reports about custom target systems Configuration parameters for managing custom target systems

Effectiveness of group memberships

Table 28: Configuration parameters for conditional inheritance
Configuration parameter Effect when set

QER | Structures | Inherite | GroupExclusion

Preprocessor relevant configuration parameter for controlling effectiveness of group memberships. If the parameter is set, memberships can be reduced on the basis of exclusion definitions. Changes to this parameter require the database to be recompiled.

When groups are assigned to user accounts an employee may obtain two or more groups, which are not permitted in this combination. To prevent this, you can declare mutually exclusive groups. To do this, you specify which of the two groups should apply to the user accounts if both are assigned.

It is possible to assign an excluded group at any time either directly, indirectly, or with an IT Shop request. One Identity Manager determines whether the assignment is effective.

NOTE:

  • You cannot define a pair of mutually exclusive groups. That means, the definition "Group A excludes group B" AND "Group B excludes groups A" is not permitted.
  • You must declare each group to be excluded from a group separately. Exclusion definitions cannot be inherited.
  • One Identity Manager does not check if membership of an excluded group is permitted in another group ( table).

The effectiveness of the assignments is mapped in the UNSAccountBInUNSGroupB and BaseTreeHasUNSGroupB tables by the XIsInEffect column.

Example of the effect of group memberships
  • Group A is defined with permissions for triggering requests in a target system A group B is authorized to make payments. A group C is authorized to check invoices.
  • Group A is assigned through the "Marketing" department, group B through "Finance", and group C through the "Control group" business role.

Clara Harris has a user account in this target system. She primarily belongs to the "Marketing" department. The "Control group" business role and the "Finance" department are assigned to her secondarily. Without an exclusion definition, the user account obtains all the permissions of groups A, B, and C.

By using suitable controls, you want to prevent an employee from being able to trigger a request and to pay invoices. That means, groups A, B, and C are mutually exclusive. An employee that checks invoices may not be able to make invoice payments as well. That means, groups B and C are mutually exclusive.

Table 29: Specifying excluded groups (UNSGroupBExclusion table)

Effective group

Excluded group

Group A

Group B

Group A

Group C

Group B

Table 30: Effective assignments

Employee

Member in role

Effective group

Ben King

Marketing

Group A

Jan Bloggs

Marketing, finance

Group B

Clara Harris

Marketing, finance, control group

Group C

Jenny Basset

Marketing, control group

Group A, Group C

Only the group C assignment is in effect for Clara Harris. It is published in the target system. If Clara Harris leaves the "control group" business role at a later date, group B also takes effect.

The groups A and C are in effect for Jenny Basset because the groups are not defined as mutually exclusive. That means that the employee is authorized to trigger requests and to check invoices. If this should not be allowed, define further exclusion for group C.

Table 31: Excluded groups and effective assignments

Employee

Member in role

Assigned group

Excluded group

Effective group

Jenny Basset



Marketing

Group A



Group C



Control group

Group C

Group B

Group A

Prerequisites
  • The QER | Structures | Inherite | GroupExclusion configuration parameter is set.

  • Mutually exclusive groups belong to the same target system or the same target system type.

NOTE: Groups that are mutually exclusive, are determined within a target system type independently of the target system. The features must be taken into account in the definition of exclusion.

To exclude a group

  1. In the Manager, select the Custom target systems | <target system> | Groups category.

  2. Select a group in the result list.
  3. Select the Exclude groups task.

  4. In the Add assignments pane, assign the groups that are mutually exclusive to the selected group.

    - OR -

    In the Remove assignments pane, remove the groups that are not longer mutually exclusive.

  5. Save the changes.

Group inheritance based on categories

In One Identity Manager, groups can be selectively inherited by user accounts. For this purpose, the groups and the user accounts are divided into categories. The categories can be freely selected and are specified using a mapping rule. Each category is given a specific position within the template. The template contains two tables; the user account table and the group table. Use the user account table to specify categories for target system dependent user accounts. In the group table enter your categories for the target system-dependent groups. Each table contains the Position 1 to Position 31 category positions.

Every user account can be assigned to one or more categories. Each group can also be assigned to one or more categories. The group is inherited by the user account when at least one user account category items matches an assigned group. The group is also inherited by the user account if the group or the user account is not put into categories.

NOTE: Inheritance through categories is only taken into account when groups are assigned indirectly through hierarchical roles. Categories are not taken into account when groups are directly assigned to user accounts.
Table 32: Category examples
Category item Categories for user accounts Categories for groups
1 Default user Default permissions
2 System users System user permissions
3 System administrator System administrator permissions

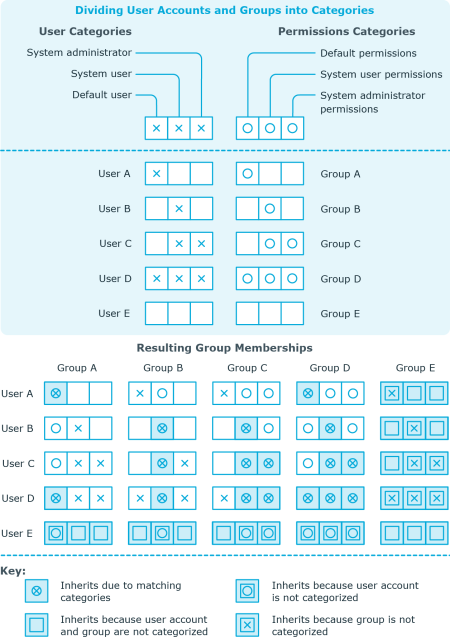

Figure 1: Example of inheriting through categories.

To use inheritance through categories

  • Define categories in the target system.
  • Assign categories to user accounts through their master data.
  • Assign categories to groups through their master data.
Related topics

Assigning extended properties

Extended properties are meta objects, such as operating codes, cost codes, or cost accounting areas that cannot be mapped directly in One Identity Manager.

To specify extended properties for a group

  1. In the Manager, select the Custom target systems | <target system> | Groups category.

  2. Select the group in the result list.

  3. Select the Assign extended properties task.

  4. In the Add assignments pane, assign extended properties.

    TIP: In the Remove assignments pane, you can remove assigned extended properties.

    To remove an assignment

    • Select the extended property and double-click .
  5. Save the changes.

For more detailed information about setting up extended properties, see the One Identity Manager Identity Management Base Module Administration Guide.

Assigning permissions controls

Use this task to assign permissions controls to groups.

To assign permissions controls to a group

  1. Select the Custom target systems | <target system> | Groups.
  2. Select the group in the result list.
  3. Select Assign permissions controls.
  4. In the Add assignments pane, double-click on the permission controls you want to assign.

    - OR -

    In the Remove assignments pane, double-click on the permissions controls you want remove.

  5. Save the changes.
Related topics
