Identity Manager 9.2 - Process Monitoring and Troubleshooting Guide

About this guide Monitoring handling of processes Support for error localization in One Identity Manager Configuring logs in One Identity Manager Application-specific configuration files

Helpful keyboard shortcuts for working with Job Queue Info

The following keyboard shortcuts are helpful for the daily work with Job Queue Info. Some of the keyboard shortcuts are available only if the logged-in user has the corresponding program functionality.

Table 2: Shortcuts in Job Queue Info

Shortcut

Usage

F5

Reload the data.

Shift + Select or Ctrl + Select

Multi-select process steps.

Ctrl + F2

Mark individual process steps with a bookmark.

F2 or Shift + F2

Switch between the marked process steps.

Ctrl + C

Copy selected data to the clipboard.

Ctrl + T

Set new start time for a process step.

Ctrl + R

Change the number of retries for a process step.

Ctrl + S

Reset start time of a process step.

Ctrl + P

Increase the priority of a process step.

Monitoring process handling

You can allow monitoring of individual processes. The process information is updated regularly. The progress of a process step is displayed in the font color.

Table 3: Job queue display - meaning of the colors
Color Meaning Progress state

Orange

This process step is being processed.

Processing

Yellow

This process step is loaded for processing.

Loaded

Green

This process step is ready for processing.

True

Blue

This process step has already been processed.

Finished

Black

This process step is not ready for processing.

False

Red

The process step being dealt with cannot be processed. You can re-enable process steps with Frozen status and therefore set them again for processing.

Frozen

Purple

The process step being dealt with cannot be processed. You can re-enable process steps with Overlimit status and therefore set them again for processing.

Overlimit

Light purple

The process step cannot be found.

Missing

To monitor information about a process

  • In the Job Queue Info, in the Job queue view or the Base objects view, select a process and select the Monitor process context menu entry.

    The process information is updated regularly.

TIP: To display the objects affected by a process step, use the Affected objects view.

To monitor the entire Job queue

  • In the Job queue view, in the context menu, select Monitor job queue.

    NOTE: The context menu entry is only available if the current user owns the JobQueue_Monitor program function.

Related topics

Details about process handling

This view gives an overview of how process steps are linked within a process. In this way, the handling sequence of individual process steps for large processes can be monitored better.

To display details of the process handling

  • In Job Queue Info, select a process and select the View > Process menu item.

    All the process steps of the selected process are displayed.

Figure 1: The process view

The process step and its properties are displayed through a special control element.

  • The process step name is displayed in the control's header.

  • The progress state of the process step is clarified by the use of a color icon ().

  • All other entries represent the parameters for this process step.

  • You can hide or show the parameter list by clicking on the icons in the header of the control element.

  • Each control element entry has a tooltip.

Table 4: Displaying process's process steps - meaning of the colors
Color Meaning Progress state

Orange

This process step is being processed.

Processing

Yellow

This process step is loaded for processing.

Loaded

Green

This process step is ready for processing.

True

Blue

This process step has already been processed.

Finished

Black

This process step is not ready for processing.

False

Red

The process step being dealt with cannot be processed. You can re-enable process steps that have Frozen or Overlimit status and therefore queue them again for processing.

Frozen/Overlimit/unknown

Details about handling process steps

In this view detailed information is displayed for each process step. The view shows the data structure for a process step at compilation time. After selecting a process step, specific information from the Job queue is mapped as well as each parameter of the selected process step with its values.

To display details of the process step handling

  • In Job Queue Info, select a process step and select the View > Process step menu.

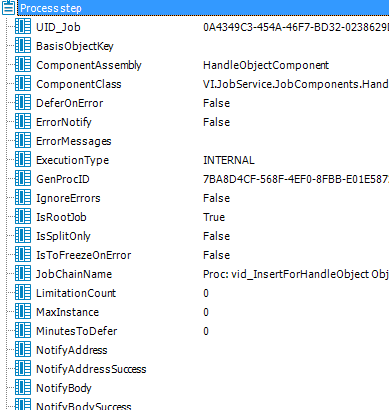

Figure 2: Process step view

Table 5: Process step view - meaning of icons
Icon Meaning

Selection of a process step and its parameters.

Displays a column from the Jobqueue table and the value.

Displays a process step parameter and the value.

TIP: You can copy the data currently selected in the view into the clipboard by pressing Ctrl + C. The data format is column name value.
