One Identity Safeguard for Privileged Sessions 6.0 LTS - Administration Guide

Generating TSA certificate with Windows Certificate Authority on Windows Server 2012

To generate a TSA certificate with Windows Certificate Authority (CA) that works with One Identity Safeguard for Privileged Sessions (SPS), generate a CSR (certificate signing request) on a computer running OpenSSL and sign it with Windows CA, then import this certificate into SPS for timestamping.

[ tsa_cert ]
extendedKeyUsage = critical,timeStamping

To generate TSA certificate with Windows Certificate Authority on Windows Server 2012

1. Create CSR using the new configuration file: openssl req -set_serial 0 -config openssl-temp.cnf -reqexts tsa_cert -new -newkey rsa:2048 -keyout timestamp.key -out timestamp.csr -nodes

2. Complete the required fields according to your environment:

   Generating a 2048 bit RSA private key
   ........................+++
   ......................................+++
   writing new private key to 'timestamp.key'
   -----
   You are about to be asked to enter information that will be incorporated
   into your certificate request.
   What you are about to enter is what is called a Distinguished Name or a DN.
   There are quite a few fields but you can leave some blank
   For some fields there will be a default value,
   If you enter '.', the field will be left blank.
   -----
   Country Name (2 letter code) [AU]:US
   State or Province Name (full name) []:New York
   Locality Name (eg, city) []:New York
   Organization Name (eg, company) [Internet Widgits Pty Ltd]:Examplecompany IT Security
   Organizational Unit Name (eg, section) []:Service Delivery
   Common Name (eg, YOUR name) []:scb35-1-i1.tohuvabohu.examplecompany
   Email Address []:vlad@examplecompany.com

3. Create and configure a time stamping web server template in the Certificate Authority, and use that to generate the TSA certificate.

   1. Start the Certification Authority Microsoft Management Console, and select the CA server.

   2. Right-click on Certificate Templates, and choose Manage.

      Figure 122: Managing certificate templates



      The Certificate Templates Console opens.

   3. Right-click the Web Server template, and choose Duplicate Template.

      Figure 123: Duplicating a Template



      The Properties of New Template window is displayed.

   4. Make the following changes to the new template:

      • On the General tab, change the Template display name to TSA.

        Figure 124: Creating the new template



      • On the Request Handling tab, enable the Allow private key to be exported option.

      • On the Extensions tab, make the following changes:

        Edit Application Policies

        Select Application Policies and click Edit below the list of extensions.

        Figure 125: Editing Application Policies



        Remove Server Authentication

        Select Server Authentication and click Remove.

        Figure 126: Removing Server Authentication



        Add Time Stamping

        Click Add, select Time Stamping and click OK.

        Figure 127: Adding Time Stamping



        Make Time Stamping critical

        Select Time Stamping and enable the Make this extension critical option, then click OK.

        Figure 128: Making Time Stamping critical



        Time Stamping and Critical extension are listed in the Description of Application Policies.

        Figure 129: Description of Application Policies



        Edit Key Usage

        Select Key usage, click Edit. Enable the Signature is proof of origin (nonrepudiation) option.

        Select Allow key exchange without key encryption (key agreement).

        Click OK.

        Figure 130: Editing Key Usage



        The following are listed in the Description of Key Usage.

        Figure 131: Description of Key Usage



      • On the Security tab, select Authenticated Users, and set Enroll to Allow.

        Figure 132: Configuring permissions for the template



   5. Click Apply. Click OK. The new TSA template is now displayed in the list of templates.

      Figure 133: The new TSA template is now displayed in the list of templates



   6. Close this window and return to the Certification Authority main screen, and select the Certificate Templates folder.

      Figure 134: Certificate Templates



      Right-click under the list, and choose New > Certificate Template to Issue.

      Figure 135: Certificate Template to Issue



      The Enable Certificate Templates window is displayed.

      Figure 136: Enable the new template



   7. Select the TSA certificate template, and choose OK. Close this window.

   8. Open the command line, and issue the following command:

      certreq -submit -attrib "CertificateTemplate:TSA" <CSR>

      Replace <CSR> with the full path of the CSR created earlier (in the second step).

   9. The Certification Authority List is displayed. Select the CA.

   10. The Save Certificate window is displayed. Choose an output folder.

       The certificate is generated to the specified folder.

4. In SPS, navigate to Basic Settings > Management > SSL certificates.

5. Click next to TSA X.509 certificate, browse for the previously generated certificate, and click Upload.

6. Click next to TSA private key, browse for the previously generated key, and click Upload.

   NOTE: If the root CA (the CA X.509 certificate field under Basic Settings > Management > SSL certificates) that is used for other certificates on SPS is different from the CA that was used to sign the TSA certificate, a warning is displayed. In this scenario, ignore this warning.

General connection settings

Connections determine if a server can be accessed from a particular client. The policies used in the connection definition can restrict the availability of the connection based on the username, time, authentication method, and so on. Channel policies (see Creating and editing channel policies) determine if a particular channel can be used within an already established connection. The policies used in the channel policy can restrict the availability of the channel based on the server and the client IP address, username, and so on. The types of policies available in a connection depend on the protocol (SSH, RDP, and so on) enabled in the connection.

One Identity Safeguard for Privileged Sessions (SPS) compares the connection policies to the parameters of the connection request one-by-one, starting with the first policy in the policy list. The first connection policy completely matching the connection request is applied to the connection.

This section describes how to configure connections, and details the general configuration options and policies that apply to every type of connection that SPS can control: HTTP, ICA, RDP, SSH, Telnet, and VNC. For a detailed list of supported protocol versions, see Supported protocols and client applications.

Protocol-specific configuration options are described in their respective sections: HTTP-specific settings, ICA-specific settings, RDP-specific settings, SSH-specific settings, Telnet-specific settings, and VNC-specific settings.

Configuring connections

The following describes how to configure connections.

To configure connections

1. Select the type of connection from the main menu.

   • To configure a HTTP connection, select HTTP Control > Connections.

   • To configure an ICA connection, select ICA Control > Connections.

   • To configure a Remote Desktop connection, select RDP Control > Connections.

   • To configure a Secure Shell connection, select SSH Control > Connections.

   • To configure a Telnet connection, select Telnet Control > Connections.

   • To configure a VNC connection, select VNC Control > Connections.

2. Click to define a new connection and enter a name that will identify the connection (for example admin_mainserver).

   TIP: It is recommended to use descriptive names that give information about the connection, for example refer to the name of the accessible server, the allowed clients, and so on.

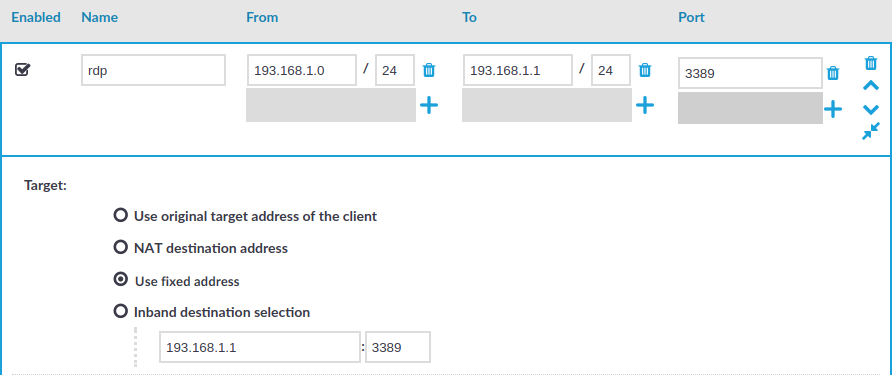

   Figure 137: <Protocol name> Control > Connections — Configuring connections





3. Enter the IP address of the client that will be permitted to access the server into the From field. Click to list additional clients.

   You can use an IPv4 or an IPv6 address. To limit the IP range to the specified address, set the prefix to 32 (IPv4) or 128 (IPv6).

   You can also enter a hostname instead of the IP address, and One Identity Safeguard for Privileged Sessions (SPS) automatically resolves the hostname to IP address. Note the following limitations:

   • SPS uses the Domain Name Servers set Basic Settings > Network > Naming > Primary DNS server and Secondary DNS server fields to resolve the hostnames.

   • If the Domain Name Server returns multiple IP addresses, SPS selects randomly from the list.

4. Enter the IP address that the clients will request into the To field.

   You can use an IPv4 or an IPv6 address. To limit the IP range to the specified address, set the prefix to 32 (IPv4) or 128 (IPv6).

   You can also enter a hostname instead of the IP address, and One Identity Safeguard for Privileged Sessions (SPS) automatically resolves the hostname to IP address. Note the following limitations:

   • SPS uses the Domain Name Servers set Basic Settings > Network > Naming > Primary DNS server and Secondary DNS server fields to resolve the hostnames.

   • If the Domain Name Server returns multiple IP addresses, SPS selects randomly from the list.

   • In non-transparent mode, enter the IP address of a SPS logical interface.

     For more information on setting up logical network interfaces on SPS, see Managing logical interfaces.

   • In transparent mode, enter the IP address of the protected server.

   Click to add additional IP addresses.

5. If the clients use a custom port to address the server instead of the default port used by the protocol, enter the port number that the clients will request into the Port field. Click to list additional port numbers.

   NOTE: SPS can handle a maximum of 15 unique ports per connection policy. If you wish to specify more than 15 custom ports, create additional connection policies.

6. Non-transparent mode: Enter the IP address and port number of the target server into the Target field. SPS will connect all incoming client-side connections to this server. For details on organizing connections in non-transparent mode, see Organizing connections in non-transparent mode.

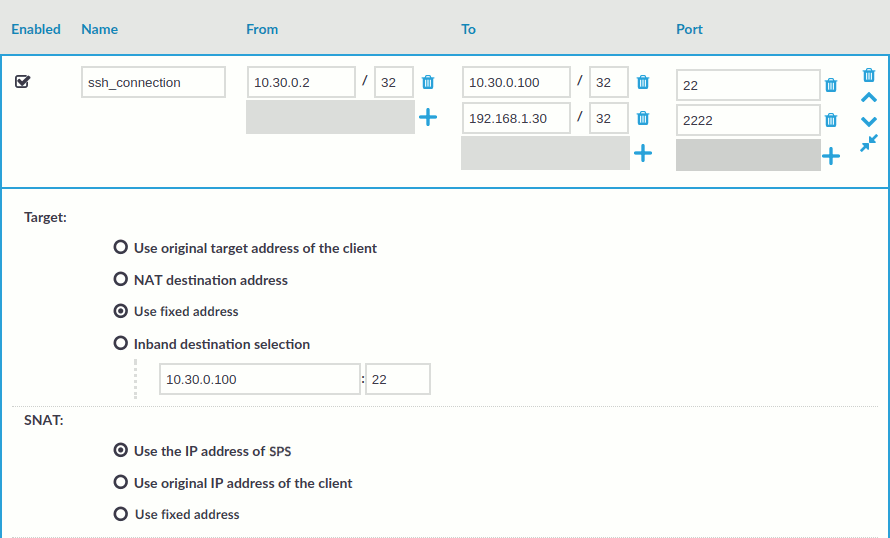

   Figure 138: <Protocol name> Control > Connections — Configuring non-transparent connections



7. Configure advanced settings if needed, like network address translation, channel policy, gateway authentication, various policies, or other settings.

8. Click to save the connection.

   TIP: To temporarily disable a connection, deselect the checkbox before the name of the connection.

9. If needed, reorder the list of the connection policies. You can move connection policies by clicking the and buttons.

   One Identity Safeguard for Privileged Sessions (SPS) compares the connection policies to the parameters of the connection request one-by-one, starting with the first policy in the policy list. The first connection policy completely matching the connection request is applied to the connection.

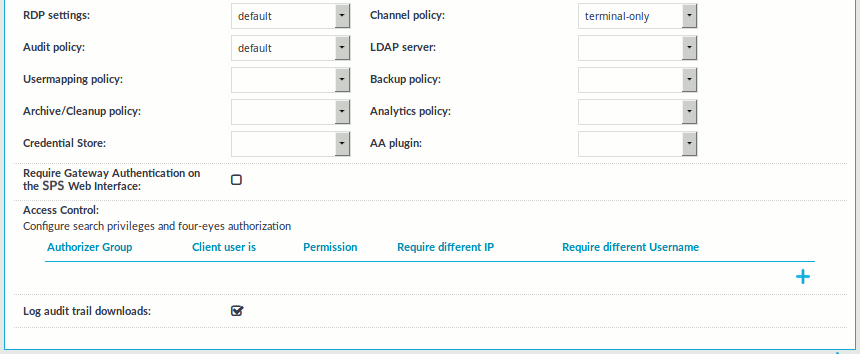

10. Depending on your needs and environment, you may want to set further settings for your connections.

    • To modify the destination or source addresses of the connections, see Modifying the destination address and Modifying the source address.

    • Select a Backup Policy and an Archiving Policy for the audit trails and indexes of the connection.

      You can find more information on creating backup and archive policies in Data and configuration backups and Archiving and cleanup.

      If you have indexed trails, the index itself is also archived:

      When using the Indexer service: Every 30 days, unless the Backup & Archive/Cleanup > Archive/Cleanup policies > Delete data from SPS after is configured to occur less frequently (more than 30 days). For example, if the Delete data from SPS after is 60 days, the index will be archived every 60 days. The content of the archived index will be the content that was available X days before the archival date, where X is the number in the Delete data from SPS after field.

      Caution: Hazard of data loss Make sure you also backup your data besides archiving (for details, see Data and configuration backups). If a system crash occurs, you can lose up to 30 days of index, since the index is only archived in every 30 days.

      NOTE: The backup and archive policies set for the connection operate only on the audit trails and indexes of the connection. General data about the connections that is displayed on the Search page is archived and backed up as part of the system-backup process of SPS.

    • If you want to timestamp, encrypt, or sign the audit trails, configure an Audit Policy to suit your needs. For details, see Audit policies.

      Caution: In RDP connections, if the client uses the Windows login screen to authenticate on the server, the password of the client is visible in the audit trail. To avoid displaying the password when replaying the audit trail, you are recommended to encrypt the upstream traffic in the audit trail using a separate certificate from the downstream traffic. For details, see "Encrypting audit trails" in the Administration Guide.

    • To require the users to authenticate themselves not only on the target server, but on SPS as well, see Configuring gateway authentication.

    • To require four-eyes authorization on the connections, with the possibility of an auditor monitoring the connection in real-time, see Configuring four-eyes authorization.

    • In the case of certain connections and scenarios (for example SSH authentication, gateway authentication, Network Level Authentication (NLA) connections), SPS can authenticate the user to an LDAP database, or retrieve the group memberships of the user. To use these features, select an LDAP Server. For details, see Authenticating users to an LDAP server.

      NOTE: To display the usergroups that can access a specific Connection Policy, open the Connection Policy, then select Show connection permissions > Show on the Connections page.

    • To limit the number of new connection requests accepted from a single client IP address per minute, enter the maximal number of accepted connections into the Connection rate limit field.

    NOTE: Protocol-specific configuration options are described in their respective sections: HTTP-specific settings, ICA-specific settings, RDP-specific settings, SSH-specific settings, Telnet-specific settings, and VNC-specific settings.

11. If your clients and servers support it, configure the connection to use strong encryption.

    • For HTTP connections, see Enabling TLS encryption in HTTP.

    • For Citrix ICA connections, use the following scenario: Client - Broker - original secure gateway - Secure Ticket Authority (STA) - SPS - Server.

    • For RDP connections, see Enabling TLS-encryption for RDP connections.

    • For SSH connections, see Creating and editing protocol-level SSH settings.

    • For Telnet connections, see Enabling TLS-encryption for Telnet connections.

    • For VNC connections, see Enabling TLS-encryption for VNC connections.

12. For graphical connections, adjust the settings of your servers for optimal performance:

    • Caution: For optimal performance and text recognition in graphical protocols, disable antialiasing on your servers. Antialiased text in the audit trails of RDP, VNC, and X11 connections is not recognized by the OCR engine of the Audit Player. The indexer service recognizes antialiased text, but its accuracy depends on the exact antialiasing settings. Disable antialiasing in order to properly index the trails of these connections. Note that antialiasing is enabled by default on Windows Vista and newer. Antialiasing is also called font smoothing. ClearType is an antialiasing technology used on Microsoft Windows, and should be disabled for optimal performance.

    • When processing RDP connections, SPS attempts to extract the username from the connection. To ensure that your users can access the target servers only when their username is recorded, see Usernames in RDP connections.

Modifying the destination address

The destination address is the address of the server where the clients finally connect to.

To modify the destination address of a connection

1. Navigate to the Connections tab storing the connection and click to display the details of the connection.

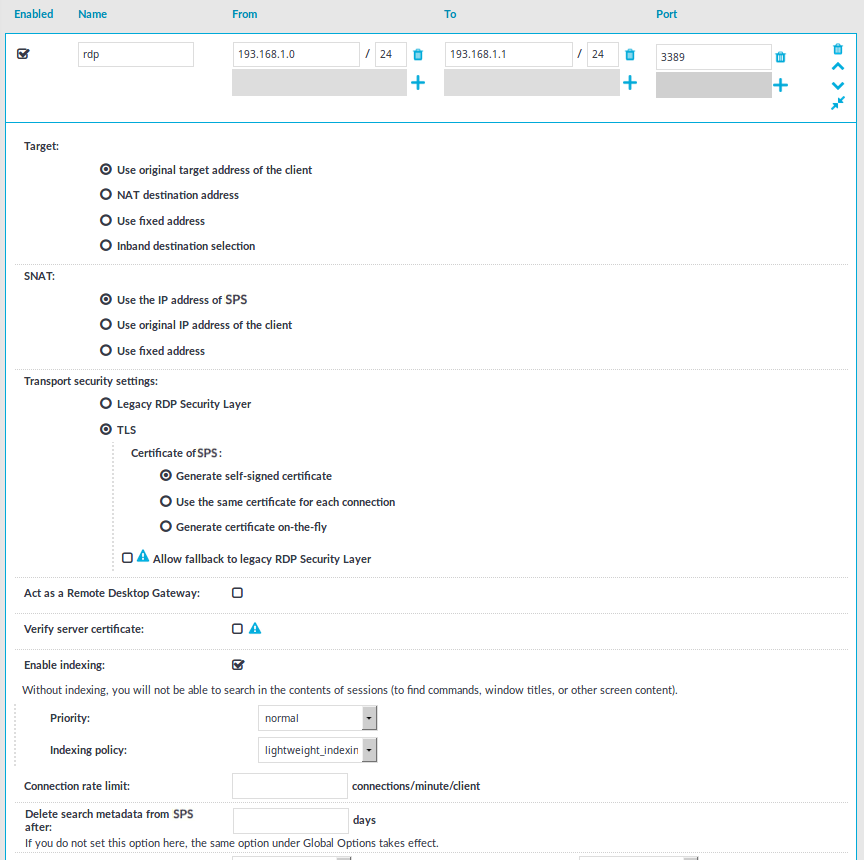

   Figure 139: <Protocol name> Control > Connections — Configuring connections



2. The Target section allows you to configure Network Address Translation (NAT) on the server side of One Identity Safeguard for Privileged Sessions (SPS). Destination NAT determines the target IP address of the server-side connection. Set the destination address as required. The following options are available:

   NOTE: It is not possible to direct the traffic to the IP addresses belonging to SPS.

   • Use the original target address of the client: Connect to the IP address targeted by the client. This is the default behavior in transparent mode. This option is not available in non-transparent mode. For HTTP connections, you can use the Use the original target address of the client option only when the Act as HTTP proxy option is disabled.

   • NAT destination address: Perform a network address translation on the target address. Enter the target address in IP address/Prefix format.

     You can also enter a hostname instead of the IP address, and One Identity Safeguard for Privileged Sessions (SPS) automatically resolves the hostname to IP address. Note the following limitations:

     • SPS uses the Domain Name Servers set Basic Settings > Network > Naming > Primary DNS server and Secondary DNS server fields to resolve the hostnames.

     • If the Domain Name Server returns multiple IP addresses, SPS selects randomly from the list.

   • Use fixed address: Enter the IP address and port number of the server. The connection will connect always to this address, redirecting the clients to the server.

     You can also enter a hostname instead of the IP address, and One Identity Safeguard for Privileged Sessions (SPS) automatically resolves the hostname to IP address. Note the following limitations:

     • SPS uses the Domain Name Servers set Basic Settings > Network > Naming > Primary DNS server and Secondary DNS server fields to resolve the hostnames.

     • If the Domain Name Server returns multiple IP addresses, SPS selects randomly from the list.

   • Inband destination selection: Extract the address of the server from the username. Note that for HTTP connections, you can use the Inband destination selection option only when the Act as HTTP proxy option is enabled. For details, see Configuring inband destination selection.

3. Click .
