Configuring password-protected Credential Stores

The following describes how to configure a local Credential Store that stores the credentials used to login to the target host. The Credential Store will be protected by custom passwords. This password must be entered every time One Identity Safeguard for Privileged Sessions (SPS) is rebooted to make the Credential Store available.

Prerequisites

NOTE:

Users accessing connections that use Credential Stores to authenticate on the target server must authenticate on One Identity Safeguard for Privileged Sessions (SPS) using gateway authentication or an AA plugin. Therefore gateway authentication or an AA plugin must be configured for these connections. For details, see "Configuring gateway authentication" in the Administration Guide and "Integrating external authentication and authorization systems" in the Administration Guide.

To configure a local Credential Store that stores the credentials used to login to the target host

  1. Navigate to Policies > Credential Stores.

  2. Click and enter a name for the Credential Store.

  3. Select Local.

  4. Select Encryption key > Password protected.

    NOTE:

    The contents of the Credential Store, as well as the passwords are included in the configuration backups of SPS. Make sure to encrypt the configuration backups.

  5. Select Master passwords and click .

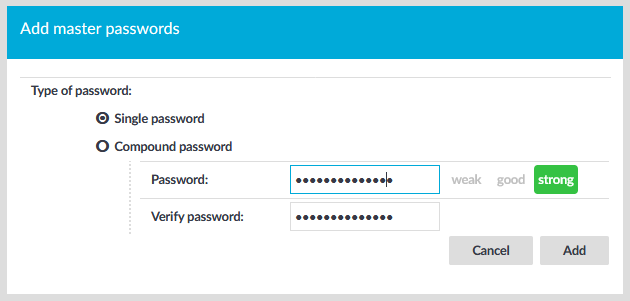

    Figure 260: Policies > Credential Stores > Local > Password protected — Set Master Password

    • To protect the Credential Store with a single password, select Single password and enter the password into the Password and Verify password fields. Anyone who knows this password and has the Unlock Credential Store privilege will be able to open the Credential Store. Password-protected Credential Stores must be unlocked on the SPS web interface or console after every SPS reboot.

    • To protect the Credential Store with multiple passwords, select Compound password, click and enter a password. Click to add additional passwords. After finishing listing every password, click Add. All of these passwords will be needed to unlock the Credential Store.

    SPS encrypts the master passwords using an aes-256-cbc cipher, and stores them in a local database.

    NOTE:

    One Identity Safeguard for Privileged Sessions (SPS) accepts passwords that are not longer than 150 characters. The following special characters can be used: !"#$%&'()*+,-./:;<=>?@[\]^-`{|}

    Figure 261: Policies > Credential Stores > Local > Password protected — Configure Credential Store

  6. Repeat the previous step to add another single or compound password. That way, different password sets can be defined for the Credential Store. For example, if a single and a compound password is configured, the chief administrator can unlock the Credential Store with a single password, and two of his subordinates can open the Credential Store together if they know one element each of the compound password.

    TIP:

    To change the password, just click to delete the old password. Then add new passwords as needed.

  1. Add credentials to the Credential Store.

    1. Click and enter the destination host and the username. For the destination host, you can use hostname, IP address, or subnet as well. To use the same credentials for every destination host, enter the 0.0.0.0/0 subnet. To use the credentials only on the hosts of a specific domain, enter *.domain. Note that:

      • Usernames are case sensitive.

      • To authenticate users of a Windows domain, enter the name of the domain into the Host field.

      Use an IPv4 address.

    2. Set the credentials. SPS will use these credentials to login to the destination host if the credential store is selected in a Connection policy. If more than one credential is specified to a host-username pair, SPS will attempt to use the credentials as the destination host requests it.

      • To add a password, click Passwords > , then enter the password corresponding to the username.

      • To upload a private key, click SSH Keys > > , then paste or upload a private key.

        NOTE:

        If the private key is protected by a passphrase, enter the passphrase. The passphrase is needed only once during the upload, it is not required for the later operation of the Credential Store.

      • To generate a keypair on SPS click SSH Keys > > , set the length and type of the key, then click Generate. After that, click the fingerprint of the key to download the public part of the keypair. There is no way to download the private key from the SPS web interface.

        NOTE:

        One Identity recommends using 2048-bit RSA keys (or stronger).

      • To upload a certificate and the corresponding private key, click X509 Keys > > , then paste or upload a certificate and the private key.

        NOTE:

        If the private key is protected by a passphrase, enter the passphrase. The passphrase is needed only once during the upload, it is not required for the later operation of the Credential Store.

      NOTE:

      One Identity Safeguard for Privileged Sessions (SPS) accepts passwords that are not longer than 150 characters. The following special characters can be used: !"#$%&'()*+,-./:;<=>?@[\]^-`{|}

    3. Repeat the previous step to add further credentials to the username as necessary.

  2. Repeat the previous step to add further hosts or usernames as necessary.

    NOTE:

    Credential Stores can be used together with usermapping policies to simplify the administration of users on the target hosts. For details, see Configuring usermapping policies.

  1. Click Commit.

  2. Navigate to the Connection policy where you want to use the Credential Store (for example, to SSH Control > Connections), select the Credential Store to use in the Credential Store field, then click Commit.

    Figure 262: Control > Connections — Select a Credential Store to use

  3. Navigate to Basic Settings > Alerting & Monitoring > Traffic related traps and enable the Decryption of a credential failed (scbCredStoreDecrpytError) and The requested credential store is closed (scbCredStoreClosed) events. That way SPS sends automatic alerts if a Credential Store needs to be unlocked.

    Caution:

    Password-protected Credential Stores must be unlocked every time after SPS is rebooted. Connections using a password-protected Credential Store will automatically fail until the Credential Store is locked.

    To unlock a Credential Store, users must have the Unlock Credential Store privilege, or editing (read and write) privileges to the particular Credential Store.

Unlocking Credential Stores

To unlock a Credential Store and make it available for use, complete the following steps.

Prerequisites

To unlock a Credential Store, users must have the Unlock Credential Store privilege, or editing (read and write) privileges to the particular Credential Store.

Steps
  1. Login to the One Identity Safeguard for Privileged Sessions (SPS) web interface.

  2. Navigate to Unlock Credential Store and select the Credential Store to unlock.

  3. Enter the password(s) for the Credential Store. For compound passwords, enter every element of the compound password in the correct order.

    NOTE:

    One Identity Safeguard for Privileged Sessions (SPS) accepts passwords that are not longer than 150 characters. The following special characters can be used: !"#$%&'()*+,-./:;<=>?@[\]^-`{|}

  4. Click Unlock.

  5. Repeat the previous steps for other Credential Stores as needed.

    NOTE:

    Alternatively, Credential Stores can be unlocked also from the SPS Console Menu.

Using a custom Credential Store plugin to authenticate on the target hosts

The following describes how to configure One Identity Safeguard for Privileged Sessions (SPS) to retrieve the credentials used to login to the target host using a custom plugin.

Prerequisites

To use a custom Credential Store plugin, you have to upload a working Credential Store plugin to SPS. This plugin is a script that can be used to access an external Credential Store or Password Manager. If you want to create such a custom Credential Store plugin, contact our Support Team or see or see the documentation about custom Credential Store plugins.

NOTE:

Users accessing connections that use Credential Stores to authenticate on the target server must authenticate on SPS using gateway authentication. Therefore, gateway authentication must be configured for these connections. For details, see "Configuring gateway authentication" in the Administration Guide.

To upload the custom Credential Store plugin you received, navigate to Basic Settings > Plugins > Upload/Update Plugins, browse for the file and click Upload.

NOTE:

It is not possible to upload or delete Credential Store plugins if SPS is in sealed mode.

Your plugin .zip file may contain an optional sample configuration file. This file serves to provide an example configuration that you can use as a basis for customization if you wish to adapt the plugin to your site's needs.

To configure SPS to retrieve the credentials used to login to the target host using a custom plugin

  1. Navigate to Policies > Credential Stores.

  2. Click and enter a name for the Credential Store.

  3. Select External Plugin, then select the plugin to use from the Plugin list.

  4. If your plugin supports configuration, then you can create multiple customized configuration instances of the plugin for your site. The Configuration textbox displays the example configuration of the plugin you selected. If you wish to create a customized configuration instance of the plugin for your site, then edit the configuration here.

    NOTE:

    Plugins created and issued before the release of SPS 5 F1 do not support configuration. If you create a configuration for a plugin that does not support this, the affected connection will stop with an error message.

  5. Click Commit.

  6. Navigate to the Connection policy where you want to use the Credential Store (for example, to SSH Control > Connections), select the Credential Store configuration instance to use in the Credential Store field, then click Commit.

Integrating external authentication and authorization systems

One Identity Safeguard for Privileged Sessions (SPS) provides a plugin framework to integrate SPS to external systems to authenticate or authorize the user before authenticating on the target server. Such plugins can also be used to request additional information from the users, for example, to perform multi-factor authentication.

You can use an Authentication and Authorization plugin (aa-plugin) in the following protocols:

  • Remote Desktop (RDP)

  • Secure Shell (SSH)

  • TELNET
