Unit: 1
Number of disk slots: 2 (internal only)
Redundant PSU: 0
Mainboard: X8SIL-F
Chipset: Intel 3420
NIC:
IPMI: Nuvoton WPCM450, SMT (Latest ver.: 3.16)
CPU: 1x Intel Xeon X3430 2.4GHz Quad
RAM: 2x 4GB Samsung DDR3-1600 ECC/Unbuffered STD
HDD: 2x Seagate Constellation ES.3 1TB SATA III
RAID: Software RAID
RAID type: RAID1
Chassis (H x W x D): 43mm x 426mm x 356mm (1U)
Chassis (H x W x D): 1,7" x 16,8" x 14,0" (1U)
Chassis: SuperChassis 512-200B
Weight: 7,7 kg / 17 lbs
Wattage IDLE: 50 Watt
Wattage LOAD: 243 Watt
System MTBF (h): 42216 hours
Electrical: 100 - 240V, 60-50Hz, 4 - 2 Amp
Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 70°C
Humidity range: 8% to 90%
Non-operating humidity: 5% to 95%
Compliant to: CE, cCSAus, FCC, VCCI-A
Link to manufacturer documentation
Unit: 1
Number of disk slots: 4
Redundant PSU: 1
Mainboard: X9SPU-F
Chipset: Intel C216 Express PCH
NIC
IPMI: Nuvoton WPCM450RA0BX, SMT (Latest ver.: 3.38)
CPU: 1x Intel Xeon E3-1275v2 3.5GHz Quad
RAM: 2x 4GB Samsung DDR3-1600 ECC/Unbuffered STD
HDD: 4x Seagate Constellation ES.3 2TB SATA III
RAID:
RAID type: RAID10
Chassis (H x W x D): 43mm x 437mm x 650mm
Chassis: (H x W x D) 1,7" x 17,2" x 25,6"
Chassis: SuperChassis 815TQ-R500UB
Weight: 16,5 kg / 38 lbs
Wattage IDLE: 60 Watt
Wattage LOAD: 547 Watt
System MTBF (h): 69667 hours
Electrical: 100 - 240V, 60-50Hz, 6.2 - 2.6 Amp
Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 70°C
Humidity range: 8% to 90%
Non-operating humidity: 5% to 95%
Compliant to: CE, cCSAus, FCC, VCCI-A
Link to manufacturer documentation
Unit: 2
Number of disk slots: 12
Redundant PSU: 1
Mainboard: X9DRW-7TPF+
Chipset: Intel® C602J
NIC:
IPMI: Nuvoton WPCM450 BMC, SMT (Latest ver.: 3.39)
CPU: 2x Intel Xeon E5-2630v2 2.6GHz
RAM: 8x 4GB Samsung DDR3-1600 ECC/Unbuffered STD
HDD: 13x Seagate Constellation.2 SAS 1TB 2.5"
RAID:
RAID type: RAID50
Chassis (H x W x D): 89mm x 437mm x 684mm
Chassis (H x W x D): 3,5" x 17,2" x 26,93"
Chassis: SuperChassis 219A-R920WB
Weight: 23,6 kg / 52 lbs
Wattage IDLE: 106 Watt
Wattage LOAD: 987 Watt
System MTBF (h): 36683 hours
Electrical: 100 - 240V, 50-60Hz, 11 - 4.5 Amp
Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 70°C
Humidity range: 8% to 90%
Non-operating humidity: 5% to 95%
Compliant to: CE, cCSAus, FCC, VCCI-A
Link to manufacturer documentation
Unit: 1 U
Drive Bays: 8 x 2.5
Redundant PSU: Yes
NIC: 4 x 1GBase-T Ethernet ports
IPMI: version 2.0
CPU: Intel Xeon E3-1275 v6 3.80GHz
Memory: 2x 16GB
HDD: 4x 2TB
RAID: LSI MegaRAID SAS 9361-4i
RAID Type: RAID 5
Usable Storage: 6TB
Chassis (W x H x D): 17.2" x 1.7" x 23.5" (437 x 43 x 650 mm)
Weight: 35 lbs (15.9kg)
Wattage IDLE / LOAD: N/A
Electrical: 500W Redundant AC-DC Power Supplies
Operating Temperature: 5°C to 35°C (41°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity Range: 8% to 90% (non-condensing)
Non-operating Humidity: 5% to 95% (non-condensing)
Compliant to: CE, cCSAus, FCC, VCCI-A
Link to manufacturer documentation
Redundant power supplies
Serial port
2x USB ports
2x USB ports
2x RJ45 GbE Ethernet ports
VGA port
4 x 1GBase-T Ethernet ports
Dedicated IPMI LAN port

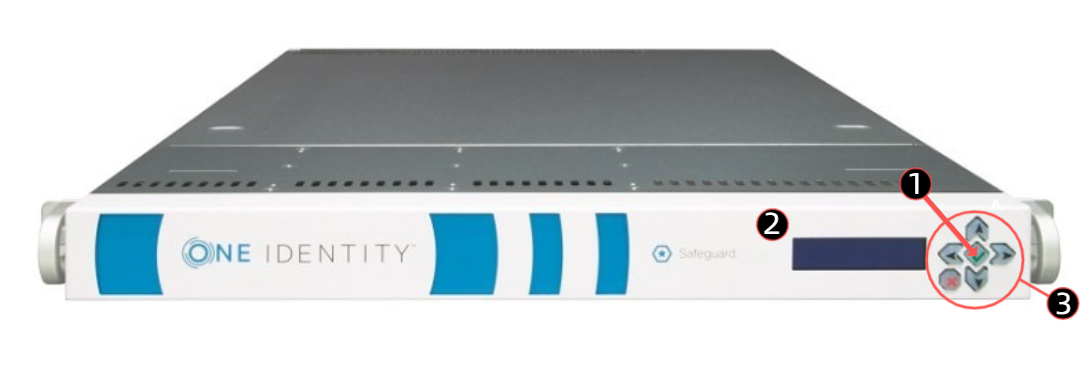

Power On/Off
No information is displayed on this LCD screen. If it lights up when the power is turned on, the device is working properly.
These buttons (with the exception of the Power button) have no function and are for display only on this device. If they light up when the power is turned on, the device is working properly.
