Configuring flow-control

For details on how flow-control works, see Managing incoming and outgoing messages with flow-control. The summary of the main points is as follows:

  • The syslog-ng application normally reads a maximum of log-fetch-limit() number of messages from a source.

  • From TCP and unix-stream sources, syslog-ng reads a maximum of log-fetch-limit() from every connection of the source. The number of connections to the source is set using the max-connections() parameter.

  • Every destination has an output buffer (log-fifo-size()).

  • Flow-control uses a control window to determine if there is free space in the output buffer for new messages. Every source has its own control window, the log-iw-size() parameter sets the size of the control window.

  • When a source accepts multiple connections, the size of the control window is divided by the value of the max-connections() parameter and this smaller control window is applied to each connection of the source.

  • The output buffer must be larger than the control window of every source that logs to the destination.

  • If the control window is full, syslog-ng stops reading messages from the source until some messages are successfully sent to the destination.

  • If the output buffer becomes full, and neither the disk-buffer option, nor flow-control is used, messages may be lost.

Caution:

If you modify the max-connections() or the log-fetch-limit() parameter, do not forget to adjust the log-iw-size() and log-fifo-size() parameters accordingly.

Example: Sizing parameters for flow-control

Suppose that syslog-ng has a source that must accept up to 300 parallel connections. Such situation can arise when a network source receives connections from many clients, or if many applications log to the same socket.

Set the max-connections() parameter of the source to 300. However, the log-fetch-limit() (default value: 10) parameter applies to every connection of the source individually, while the log-iw-size() (default value: 1000) parameter applies to the source. In a worst-case scenario, the destination does not accept any messages, while all 300 connections send at least log-fetch-limit() number of messages to the source during every poll loop. Therefore, the control window must accommodate at least max-connections()*log-fetch-limit() messages to be able to read every incoming message of a poll loop. In the current example this means that log-iw-size() should be greater than 300*10=3000. If the control window is smaller than this value, the control window might fill up with messages from the first connections — causing syslog-ng to read only one message of the last connections in every poll loop.

The output buffer of the destination must accommodate at least log-iw-size() messages, but use a greater value: in the current example 3000*10=30000 messages. That way all incoming messages of ten poll loops fit in the output buffer. If the output buffer is full, syslog-ng does not read any messages from the source until some messages are successfully sent to the destination.

source s_localhost {
            network(ip(127.0.0.1) port(1999) max-connections(300)); };
destination d_tcp {
            network("10.1.2.3" port(1999) localport(999) log-fifo-size(30000)); };
log { source(s_localhost); destination(d_tcp); flags(flow-control); };

If other sources send messages to this destination, than the output buffer must be further increased. For example, if a network host with maximum 100 connections also logs into the destination, than increase the log-fifo-size() by 10000.

source s_localhost {
            network(ip(127.0.0.1) port(1999) max-connections(300)); };
source s_tcp {
            network(ip(192.168.1.5) port(1999) max-connections(100)); };
destination d_tcp {
            network("10.1.2.3" port(1999) localport(999) log-fifo-size(40000)); };
log { source(s_localhost); destination(d_tcp); flags(flow-control); };

Using the disk-buffer option and memory buffering

The syslog-ng Premium Edition application can store messages on the local hard disk if the destination (for example, the central log server) or the network connection to the destination becomes unavailable. The syslog-ng PE application automatically sends the stored messages to the destination when the connection is reestablished. The disk-buffer file is used as a queue: when the connection to the destination is reestablished, syslog-ng PE sends the messages to the destination in the order they were received.

NOTE: The disk-buffer option can be used in conjunction with flow-control. For details on flow-control, see Managing incoming and outgoing messages with flow-control.

The following destination drivers can use the disk-buffer option: elasticsearch2(), file(), hdfs(), http(), kafka(), mongodb(), program(), riemann(), sentinel(), smtp(),sql(), unix-dgram(), and unix-stream(). The network(), syslog(), tcp(), and tcp6() destination drivers can also use the disk-buffer option, except when using the udp transport method. (The other destinations or protocols do not provide the necessary feedback mechanisms required for the disk-buffer option.)

Every such destination uses a separate disk-buffer file (similarly to the output buffers controlled by log-fifo-size()). The hard disk space is not pre-allocated, so ensure that there is always enough free space to store the disk-buffer files even when the disk buffers are full.

If syslog-ng PE is restarted (using the /etc/init.d/syslog-ng restart command, or another appropriate command on your platform), it automatically saves any unsent messages from the disk-buffer file and in-memory queues. After the restart, syslog-ng PE sends the saved messages to the destination. In other words, the disk-buffer file is persistent. The disk-buffer file is also resistant to syslog-ng PE crashes.

The syslog-ng PE application supports two types of disk-buffer options: reliable and normal. For details, see Enabling the reliable disk-buffer option and Enabling the normal disk-buffer option, respectively.

Message handling and the normal disk-buffer option

When you use the disk-buffer option, and the reliable() option is set to no, syslog-ng PE handles outgoing messages the following way:

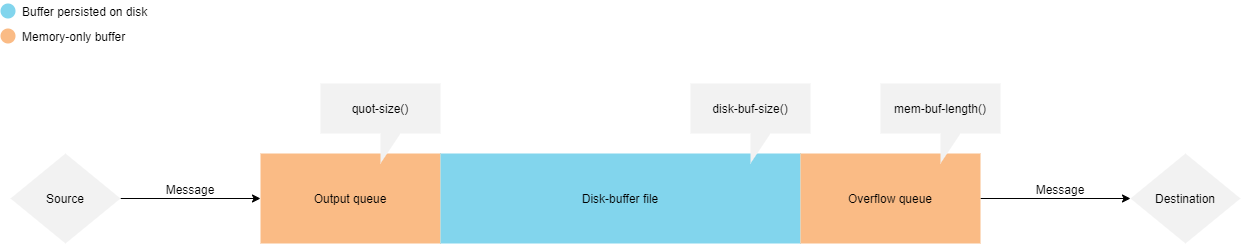

Figure 34: Handling outgoing messages in syslog-ng PE with the normal disk-buffer option

  • Output queue: In-memory queue. If there is space left in it, syslog-ng PE puts the message into this queue first . Messages stored here are processed faster, because syslog-ng PE can skip writing to, and reading from the disk, as well as serializing or deserializing the message, saving I/O and processor time as a result. The contents of the in-memory output queue are persisted to the disk-buffer file during syslog-ng PE reload, restart or stop, but they cannot be persisted if in the event of power failures, or if syslog-ng PE crashes. By default, the output queue can hold 1000 messages (you can adjust this number using the quot-size() option).

  • Disk-buffer file: Disk queue. If there is no space left in the output queue, the message is stored on the disk-buffer file. Messages stored here are persisted on the disk, even in case of power failures or if syslog-ng PE crashes. Using the disk-buffer file takes considerable amount of disk I/O and processor time. The size of this queue can be set with the disk-buf-size() option.

  • Overflow queue: In-memory queue. This queue is used to trigger flow-control if it is set. The contents of the in-memory overflow queue are persisted to the disk-buffer file in case of syslog-ng PE reload, restart or stop, but they are not persisted in case of power failures or if syslog-ng PE crashes. Setting the size of the overflow queue can be done with the mem-buf-length() option.

Caution:

Hazard of data loss!

In case of normal disk-buffers, the messages stored in the output queue and the overflow queue can be lost in case of power failures or if syslog-ng PE crashes.

Caution:

Hazard of data loss!

The syslog-ng PE application does not support storing the disk-buffer files on any kind of network share (that is, NFS, CIFS, and so on). To avoid crashes, data corruption, or data loss, One Identity does not recommend storing your disk-buffer files on network share.

NOTE: Using the disk-buffer option can significantly decrease performance.

Message handling and using the reliable disk-buffer option

When you use the disk-buffer option, and the reliable() option is set to yes, syslog-ng PE handles outgoing messages the following way.

The mem-buf-size() option determines when flow-control is triggered. After the size of the disk-buffer file reaches (disk-buf-size() minus mem-buf-size()), messages are written into both the disk-buffer file and the overflow queue, indicating that flow-control needs to slow down the message source. These messages are not taken out from the control window (governed by log-iw-size()), causing the control window to fill up.

If the control window is full, the flow-control completely stops reading incoming messages from the source. (As a result, mem-buf-size() must be at least as large as log-iw-size() times the average message size.)

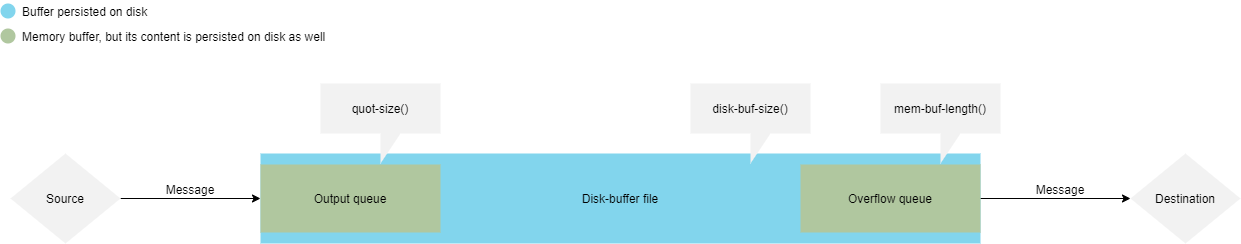

Figure 35: Handling outgoing messages in syslog-ng PE with the reliable disk-buffer option

  • Output queue: In-memory and disk queue. If there is space left in it, syslog-ng PE puts the message into this queue first. In case of reliable disk-buffer, in addition to storing the message in memory, it is stored directly in the disk-buffer file as well for safety reasons (see the next point). Messages stored here are processed faster, because syslog-ng PE can skip reading from the disk, and deserializing the message, saving I/O and processor time. By default, the output queue can hold 1000 messages (you can adjust it using the quot-size() option).

  • Disk-buffer file: Disk queue. If there is no space left in the output queue, the message is stored on the disk-buffer file. Messages stored here are persisted on the disk, and survive syslog-ng PE crash or power failure. Using the disk-buffer file takes considerable amount of disk I/O and processor time. The size of this queue can be set with the disk-buf-size() option.

  • Overflow queue: In-memory and disk queue. This queue is used to trigger flow-control if it is set. Similarly to the output queue, in case of reliable disk-buffer in addition to storing the message in memory, it is stored directly in the disk-buffer file as well for safety reasons. Setting the size of the overflow queue can be done with the mem-buf-size() option.

NOTE: When using reliable disk-buffering, the quot-size() option sets the number of messages stored in the memory in addition to storing them on the disk. For performance considerations, One Identity recommends that you keep this option set to the default value of 1000.

Enabling the reliable disk-buffer option

The following destination drivers can use the disk-buffer option: elasticsearch2(), file(), hdfs(), http(), kafka(), mongodb(), program(), riemann(), sentinel(), smtp(),sql(), unix-dgram(), and unix-stream(). The network(), syslog(), tcp(), and tcp6() destination drivers can also use the disk-buffer option, except when using the udp transport method. (The other destinations or protocols do not provide the necessary feedback mechanisms required for the disk-buffer option.)

To enable using the reliable disk-buffer option, use the disk-buffer(reliable(yes)) parameter in the destination. Use the reliable disk-buffer option if you do not want to lose logs in case of reload/restart, an unreachable destination or syslog-ng PE crash. This solution provides a slower, but reliable disk-buffer option. It is created and initialized at startup and gradually grows as new messages arrive. The filename of the reliable disk-buffer file is the following: <syslog-ng path>/var/syslog-ng-00000.rqf.

Example: Example for using the reliable disk-buffer option
destination d_BSD {
    network(
            "127.0.0.1"
            port(3333)
            disk-buffer(
                mem-buf-size(10000)
                disk-buf-size(2000000)
                reliable(yes)
            )
        );
};

For more details on the differences between the normal and the reliable disk-buffer options, see About disk queue files.

Enabling the normal disk-buffer option

The following destination drivers can use the disk-buffer option: elasticsearch2(), file(), hdfs(), http(), kafka(), mongodb(), program(), riemann(), sentinel(), smtp(),sql(), unix-dgram(), and unix-stream(). The network(), syslog(), tcp(), and tcp6() destination drivers can also use the disk-buffer option, except when using the udp transport method. (The other destinations or protocols do not provide the necessary feedback mechanisms required for the disk-buffer option.)

If the reliable() option is not set, by default a normal disk-buffer is created. To explicitly enable the normal disk-buffer option, use the disk-buffer(reliable(no)) parameter in the destination. Use the normal disk-buffer option if you want a solution that is faster than the reliable disk-buffer option. In this case, the process will be less reliable and it is possible to lose logs in case of syslog-ng PE crash. The filename of the normal disk-buffer file is the following: <syslog-ng path>/var/syslog-ng-00000.qf.

Example: Example for using the normal disk-buffer option

When using the plugin for the disk-buffer file

destination d_BSD {
    network(
            "127.0.0.1"
            port(3333)
            disk-buffer(
                mem-buf-length(10000)
                disk-buf-size(2000000)
                reliable(no)
            )
        );
        };

For more details on the differences between the normal and the reliable disk-buffer options, see About disk queue files.
