Not all system connectors provide a for creating a full configured . Therefore, you can also create a synchronization project manually. In this case, the project wizard sets up the system connection. All other synchronization configuration components must be configured after you have saved the synchronization project.
To manually set up synchronization of the One Identity Manager database with a target system
- Install and configure a synchronization server and declare the server as a in One Identity Manager.
- Create a new synchronization project.
- The project wizard sets up the system connection.
- On the Select project template page, select Create blank project.
-
Add mappings. Define property mapping rules and object matching rules.
-
Create synchronization workflows.
-
Create a start up configuration.
-
Define the synchronization scope.
-
Specify the base object of the synchronization.
-
Specify the extent of the synchronization log.
-
Run a consistency check.
-
Activate the synchronization project.
-
Save the new synchronization project in the database.
Detailed information about this topic
group together the rules used to map the schema properties of two connected systems. For this, a schema class is created for every schema type which requires mapping. A schema class limits the result list of a schema type through defined filer criteria. A mapping maps schema properties from exactly one target system schema class to the schema properties of exactly one schema class in the One Identity Manager schema. A schema class without a filter condition represents the schema type.
Property mapping rules describe how the target system schema properties are mapped in the One Identity Manager schema. Object matching rules assign schema properties through which system objects can be uniquely identified. For example, Active Directory groups can be uniquely identified by the schema properties DistinguishedName and ObjectGUID.
You specify in the mapping, which mapping direction is permitted for the connected schema classes. Furthermore, you can also specify the permitted mapping direction for individual property mapping rules.
Default mappings for are added if the was created with a default . You can edit or delete these mappings or create new mappings. If the synchronization project was created without a project template, no mappings are set up.

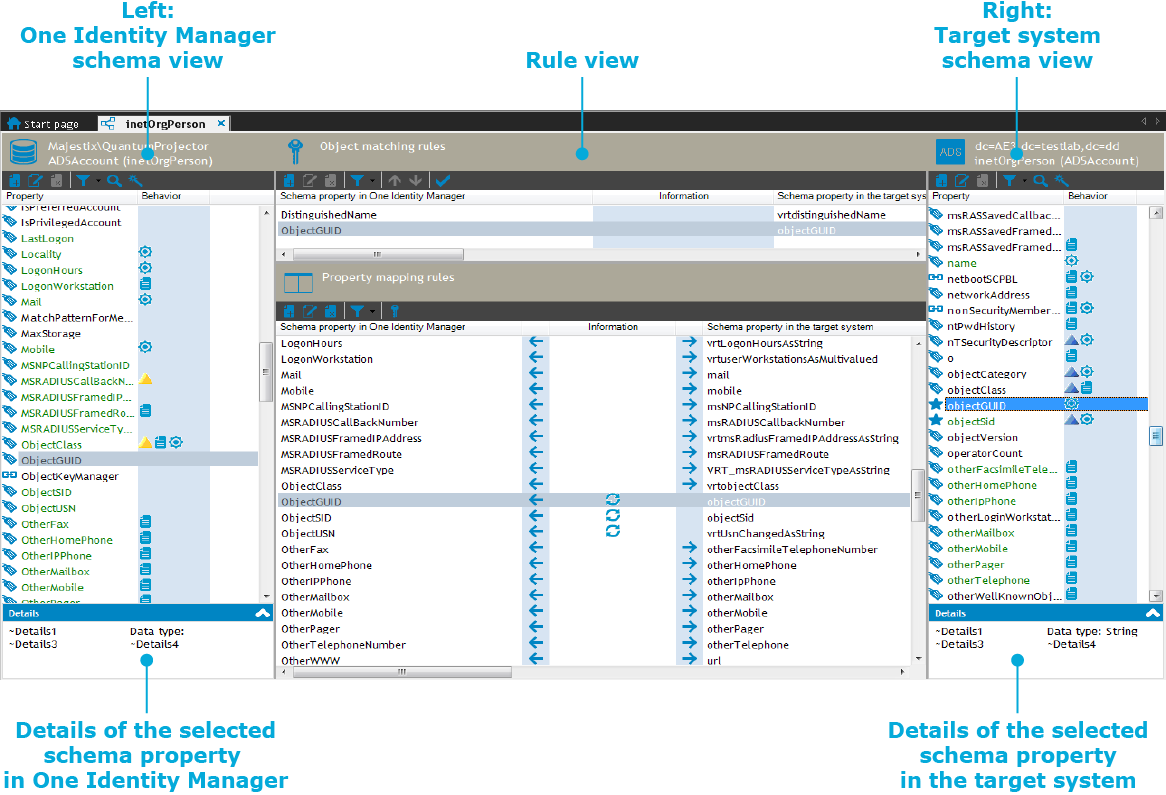

The schema property mapping is edited with the mapping editor.
Detailed information about this topic
