Configuring OneLogin Portal

You can use OneLogin Protect/OneLogin SMS to authenticate and get access to resources protected with Defender. To start using OneLogin Protect/OneLogin SMS, you need to download and install it. Lastly, activate it by importing an activation code from OneLogin portal.



Defender Side Configuration

  1. Program the OneLogin Defender Token: Program the OneLogin Token from ADUC for the user and do not activate it.

  2. Update User Properties: Update the below User Properties from the ADUC (Active Directory Users and Computers) to sync the users with the OneLogin:

    • First Name
    • Last Name
    • Display Name
    • Email (this email address will be used to login to OneLogin Portal with same AD Password)

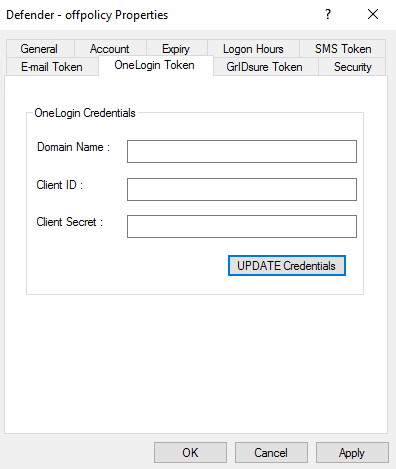

  3. Input OneLogin API credential in Policy properties Dialog: On install/Upgrade to Defender version 6.5.0, a new tab named OneLogin Token under policies Properties Dialog is visible. Admin needs to enter OneLogin API credentials to use OneLogin Push Notification with OneLogin protect app for that policy. Click Apply to save the credentials. To update credentials, click UPDATE credentials.

OneLogin Side Configuration - Creating a OneLogin Tenant account

Create a OneLogin Tenant account. After Tenant account creation, create new credentials:

  1. Login to the Admin OneLogin Portal.
  2. Go to Developers -> API Credentials.
  3. Create a new credential.

Synchronizing User Data

Follow the below steps to Sync the AD Users with OneLogin:

  1. Login using developers account credentials to the OneLogin portal using address: <subdomain>.onelogin.com.

  2. Go to Users->Directories, then select Active Directory and download “onelogin_ad_connector.msi”.

  3. Copy the token generated and use it to install the “OneLogin Connector” tool.
