Replacing a HA node in a One Identity Safeguard for Privileged Sessions (SPS) cluster

Caution:

Creating a High-availability (HA) node pair from different types of hardware is not possible. The primary and the secondary HA nodes have to run on the same type of hardware.

The following describes how to replace a unit in a One Identity Safeguard for Privileged Sessions (SPS) cluster with a new appliance.

To replace a unit in a SPS cluster with a new appliance

  1. Verify the HA status on the working node. Select Basic Settings > High Availability. If one of the nodes has broken down or is missing, the Status field displays DEGRADED.

  2. Note down the Gateway IP addresses, and the IP addresses of the Heartbeat and the Next hop monitoring interfaces.

  3. Perform a full system backup. Before replacing the node, create a complete system backup of the working node. For details, see Data and configuration backups.

  4. Check which firmware version is running on the working node. Select Basic Settings > System > Version details and write down the exact version numbers.

  5. Log in to your support portal and download the CD ISO for the same SPS version that is running on your working node.

  6. Without connecting the replacement unit to the network, install the replacement unit from the ISO file. Use the IPMI if needed.

  7. When the installation is finished, connect the two SPS units with an Ethernet cable via the Ethernet connectors labeled as 4 or HA.

  8. Reboot the replacement unit and wait until it finishes booting.

  9. Login to the working node and verify the HA state. Select Basic Settings > High Availability. The Status field should display HALF.

  10. Reconfigure the Gateway IP addresses, and the IP addresses of the Heartbeat and the Next hop monitoring interfaces. Click .

  11. Click Other node > Join HA.

  12. Click Other node > Reboot.

  13. The replacement unit will reboot and start synchronizing data from the working node. The Basic Settings > High Availability > Status field will display DEGRADED SYNC until the synchronization finishes. Depending on the size of the hard disks and the amount of data stored, this can take several hours.

  14. After the synchronization is finished, connect the other Ethernet cables to their respective interfaces (external to 1 or EXT, internal to 3 or INT, management to 2 or MGMT) as needed for your environment.

    Expected result

    A node of the SPS cluster is replaced with a new appliance.

Resolving an IP conflict between cluster nodes

The IP addresses of the HA interfaces connecting the two nodes are detected automatically, during boot. When a node comes online, it attempts to connect to the IP address 1.2.4.1. If no other node responds until timeout, then it sets the IP address of its HA interface to 1.2.4.1, otherwise (if there is a responding node on 1.2.4.1) it sets its own HA interface to 1.2.4.2.

Replaced nodes do not yet know the HA configuration (or any other HA settings), and will attempt to negotiate it automatically in the same way. If the network is, for any reason, too slow to connect the nodes on time, the replacement node boots with the IP address of 1.2.4.1, which can cause an IP conflict if the other node has also set its IP to that same address previously. In this case, the replacement node cannot join the HA cluster.

To manually assign the correct IP address to the HA interface of a node, perform the following steps:

  1. Log in to the node using the IPMI or the physical console.

    Configuration changes have not been synced to the new (replacement) node, as it could not join the HA cluster. Use the default password of the root user of One Identity Safeguard for Privileged Sessions (SPS), see Installing this hotfix in the Installation Guide.

  2. From the console menu, choose 10 HA address.

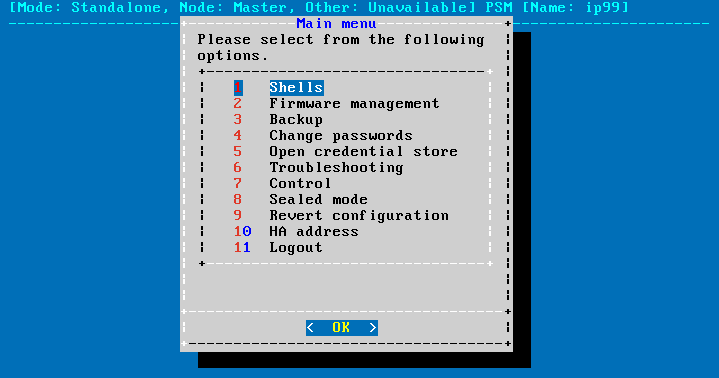

    Figure 377: The console menu

  3. Choose the IP address of the node.

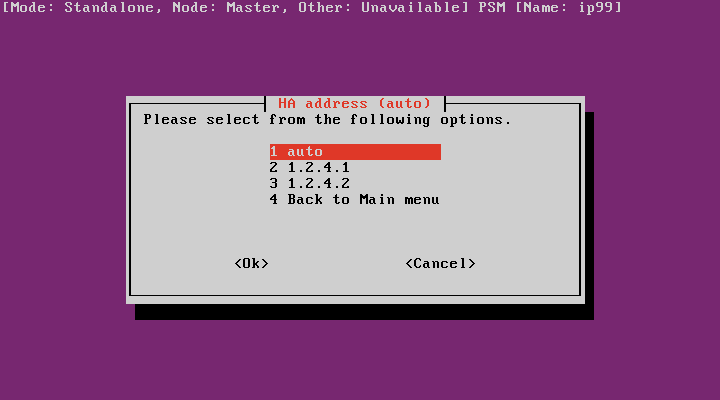

    Figure 378: The console menu

  4. Reboot the node.

Understanding One Identity Safeguard for Privileged Sessions (SPS) RAID status

This section explains the possible statuses of the One Identity Safeguard for Privileged Sessions (SPS) RAID device and the underlying hard disks. SPS displays this information on the Basic Settings > High Availability page. The following statuses can occur:

  • Optimal: The hard disks are working as expected.

  • Degraded: One or more hard disk has reported an error, and might have to be replaced. For assistance, contact our Support Team.

  • Failed stripes: One or more stripes of data failed on the RAID device. It is possible that data loss occurred, but unfortunately there is no way to find out the extent of the data loss (if any).

  • Offline: The RAID device is not functioning, probably because several disks have broken down. SPS cannot operate properly in this case. For assistance, contact our Support Team.

Restoring One Identity Safeguard for Privileged Sessions (SPS) configuration and data

This section describes the options for restoring the configuration and the data of One Identity Safeguard for Privileged Sessions (SPS).

CAUTION: Do not use the sps-<timestamp>.config configuration file to clone SPS appliances. Doing so will result in errors and it might compromise the security of the appliances that are cloned this way.

You have the following options to restore SPS:
