Active Roles 8.1.1 - Synchronization Service Administration Guide

Synchronization Service overview Deploying Synchronization Service Getting started Connections to external data systems
External data systems supported with built-in connectors
Working with Active Directory Working with an AD LDS (ADAM) instance Working with Skype for Business Server Working with Oracle Database Working with Oracle Database user accounts Working with Exchange Server Working with Active Roles Working with One Identity Manager Working with a delimited text file Working with Microsoft SQL Server Working with Micro Focus NetIQ Directory Working with Salesforce Working with ServiceNow Working with Oracle Unified Directory Working with an LDAP directory service Working with an OpenLDAP directory service Working with IBM DB2 Working with IBM AS/400 Working with IBM RACF Working with MySQL database Working with an OLE DB-compliant relational database Working with SharePoint Working with Microsoft 365 Working with Microsoft Azure Active Directory Configuring data synchronization with the SCIM Connector Configuring data synchronization with the Generic SCIM Connector Objects and operations supported by the SCIM Connector Example of using the Generic SCIM Connector for data synchronization
Using connectors installed remotely Creating a connection Renaming a connection Deleting a connection Modifying synchronization scope for a connection Using connection handlers Specifying password synchronization settings for a connection
Synchronizing identity data Mapping objects Automated password synchronization Synchronization history Scenarios of use Developing PowerShell scripts for attribute synchronization rules Using PowerShell script to transform passwords

Using value generation rules

To configure a list of rules for selecting an attribute value or generating a value, you can use the Configure Generation Rule dialog.

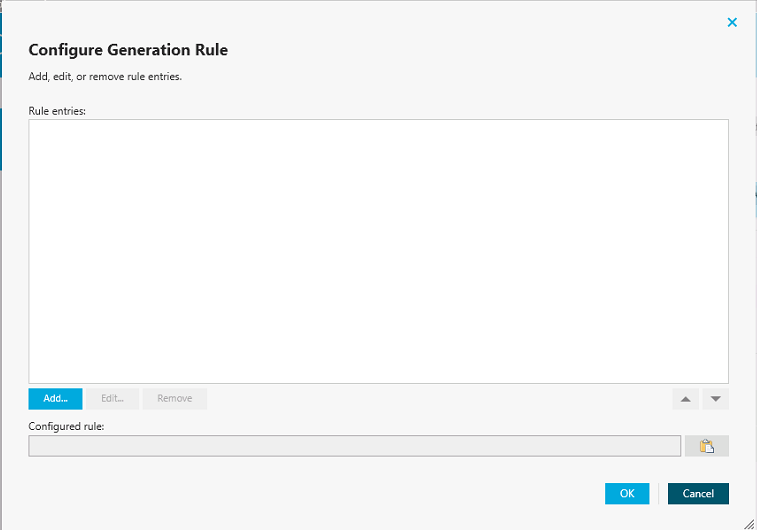

Figure 19: Configure Generation Rule

To add a new rule entry

  1. Click Add.

  2. Configure the rule entry as appropriate. For more information, see Configuring a rule entry.

To remove an existing rule entry

  • From the Rule entries list, select the entry you want to remove, and then click Remove.

To edit an existing rule entry

  1. From the Rule entries list, select the entry you want to modify, and then click Edit.

  2. Configure the rule entry as appropriate. For more information, see Configuring a rule entry.

Configuring a rule entry

This section provides instructions on how to configure a rule entry in the Define Entry dialog that looks similar to the following:

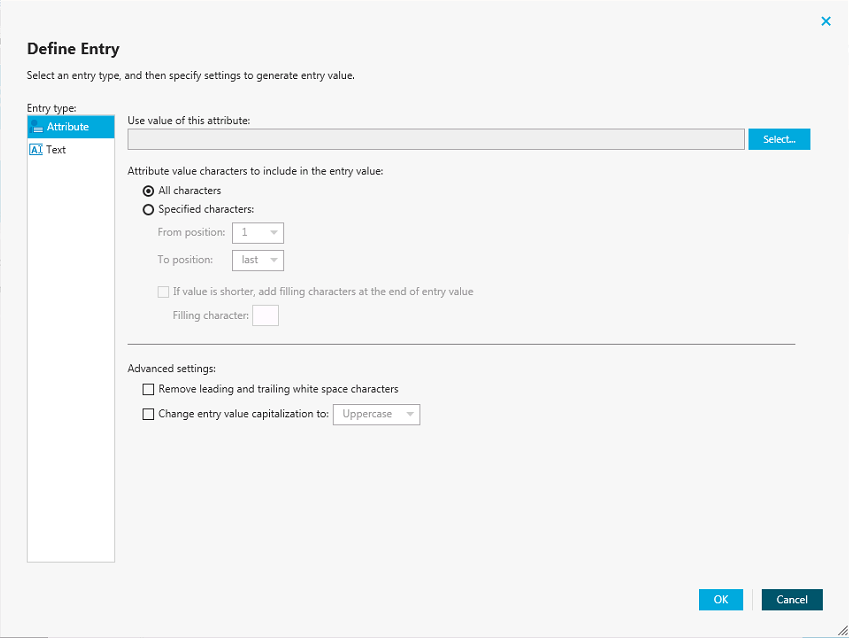

Figure 20: Define Entry

To configure a text entry

  1. Under Entry type, select Text.

  2. In the Text value box, type the value.

  3. Click OK.

To configure an attribute-based entry

  1. Under Entry type, select Attribute.

  2. Click Select to select the attribute whose value you want to use, and then click OK.

  3. If you want the entry to include the entire value of the attribute, select All characters. Otherwise, click Specified characters, then specify the characters to include in the entry.

  4. (Optional) To add additional characters to the entry, click If value is shorter, add filling characters at the end of entry value.

  5. (Optional) Specify Advanced settings.

  6. When finished, click OK.

Using sync workflow step handlers

Sync workflow step handlers allow you to automatically perform custom actions either before running a workflow step or after the workflow step run results have been committed (written) to the data system. Out of the box, Synchronization Service includes a single predefined handler type that can automatically run your custom PowerShell script and thus perform the desired action.

To create, modify, or delete handlers for a sync workflow step, you can use the Step Handlers tab in the sync workflow step properties.

To create a sync workflow step handler

  1. In the Synchronization Service Console, open the Sync Workflows tab.
  2. Click the name of the appropriate sync workflow.

  3. Click the name of the sync workflow step for which you want to create a handler, then click Step Handlers.

  4. Click Add handler, then follow the steps in the wizard to create your handler.

To modify a sync workflow step handler

  1. In the Synchronization Service Console, open the Sync Workflows tab.
  2. Click the name of the appropriate sync workflow.

  3. Click the name of the sync workflow step whose handler you want to modify, then click the Step Handlers tab.

  4. Click the name of the handler you want to modify.

  5. Modify the handler settings as necessary. When you are finished, click OK.

  6. You can also do the following:

    • Change the order in which handlers are activated: Synchronization Service activates handlers in the order in which they appear in the list. To move a handler in the list, use the Move up and Move down links below the handler.

    • Disable or enable the handler: You can enable or disable existing handlers. To do so, use the Enable or Disable link below the handler.

  7. When you are finished, click Save.

To delete a sync workflow step handler

  1. In the Synchronization Service Console, open the Sync Workflows tab.
  2. Click the name of the appropriate sync workflow.

  3. Click the name of the sync workflow step whose handler you want to delete, and then click Step Handlers.

  4. Click Delete below the handler you want to delete.

Example: Synchronizing group memberships

This example illustrates how to configure a creating step to synchronize group memberships from an Active Directory domain to an AD LDS (ADAM) instance. The example demonstrates how to create rules in the step to synchronize the value of the member attribute in the AD domain to the member attribute in AD LDS (ADAM).

To synchronize the member attribute

  1. Follow the procedure of the Adding a creating step section until you reach the Specify creation rules page.

  2. In the Initial Attribute Population Rules element, click the down arrow on the leftmost button below the list to select Forward Sync Rule.

  3. In the dialog that opens, add the following pair of attributes:

    • Source item: member attribute (Active Directory)

    • Target item: member attribute (AD LDS)

    For more information about the options in this dialog, see Configuring a forward sync rule.

  4. When you are finished, click OK.

  5. Follow the steps in the wizard to complete the creating step.
