One Identity Safeguard for Privileged Sessions 6.0.1 - Administration Guide

Interface

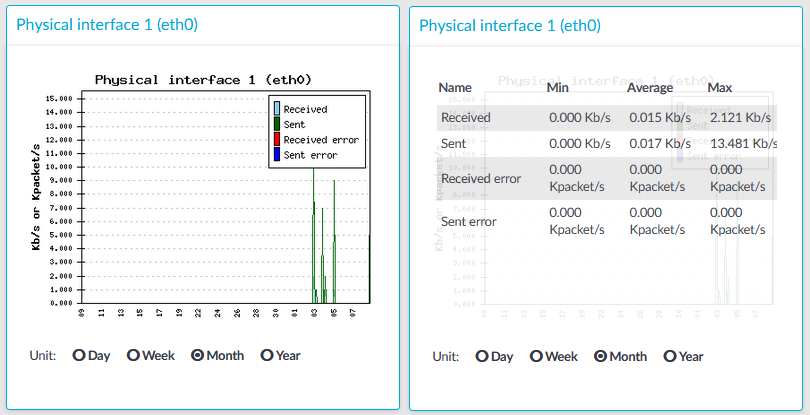

Figure 294: Basic Settings > Dashboard > Interface

The Interface module on the Dashboard is based on data provided by the Linux kernel (/proc and /sys directories). The standard Munin plugins query this information from these locations and they are displayed on the GUI.

Statistics

The memory types displayed are the following:

• Received: The network interface has received x Kilobytes per second.

• Sent: The network interface has sent x Kilobytes per second.

• Received error: The amount of errors, packet drops, and collisions on the network interface (in Kilopackets per second).

• Sent error: The amount of errors, packet drops, and collisions on the network interface (in Kilopackets per second).

Load average

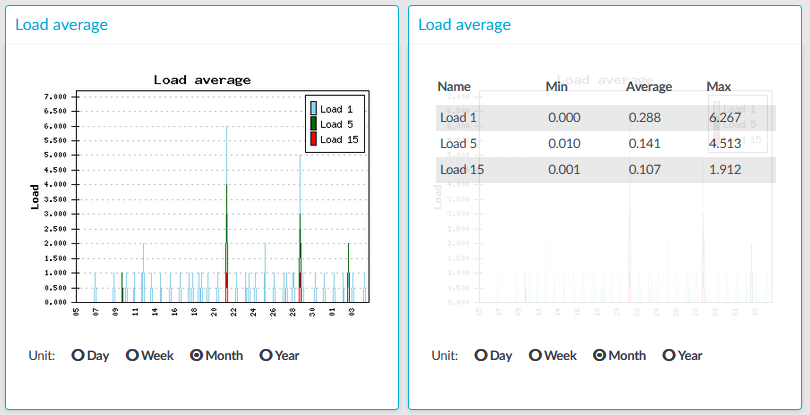

Figure 295: Basic Settings > Dashboard > Load average

The Load average module on the Dashboard is based on data provided by the Linux kernel (/proc and /sys directories). The standard Munin plugins query this information from these locations and they are displayed on the GUI.

A measure of the amount of computational work that a computer system performs. The load average represents the average system load over a period of time. It conventionally appears in the form of three numbers which represent the system load during the last one-, five-, and fifteen-minute periods.

Statistics

The load average types displayed are the following:

• Load 1: Average load in 1 minute.

• Load 5: Average load in 5 minute.

• Load 15: Average load in 15 minute.

Number of processes

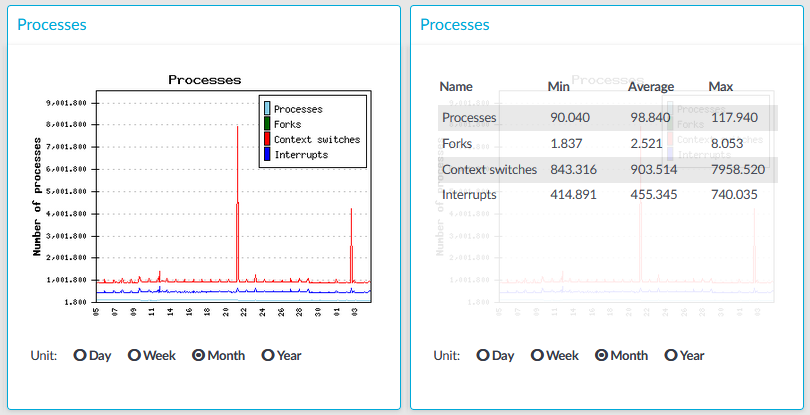

Figure 296: Basic Settings > Dashboard > Number of processes

The Number of processes module on the Dashboard is based on the output of the ps command.

Statistics

The process types displayed are the following:

• Processes: Number of running processes.

• Forks: Number of forks (system calls). It is an operation where a process creates a copy of itself.

• Context switches: Number of context switches. It is the switching of the CPU from one processor thread to another.

• Interrupts: Number of interrupts.

Displaying custom connection statistics

The following describes how to display statistics of a specific connection policy.

To display statistics of a specific connection policy

1. Navigate to Basic Settings > Dashboard > Connection statistics.

2. To display the statistics of a connection policy, enter the name of the policy into the Connection.

3. Select the time period to display from the Select resolution field.

4. Click View graph.
