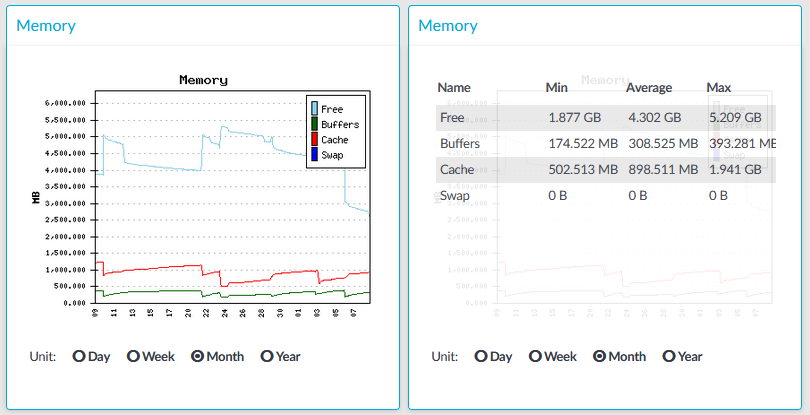

Figure 353: Basic Settings > Dashboard > Memory
The Memory module on the Dashboard is based on data provided by the Linux kernel (/proc and /sys directories). The standard Munin plugins query this information from these locations and they are displayed on the GUI.
The memory types displayed are the following:
Free: Free memory
Buffers: In-memory block I/O buffers.
Cache: Memory used for disk caching. This does not count as "used" memory, because it is freed when it is required.
Swap: Swap space usage (memory contents that have been temporarily moved to disk).This value might be high in case of lack of memory.

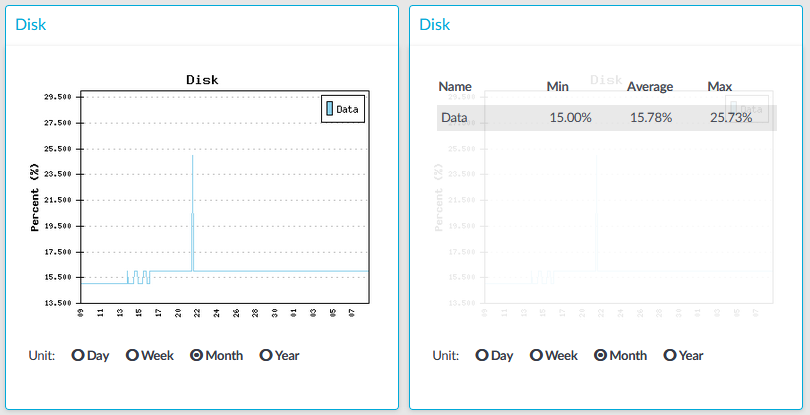

Figure 354: Basic Settings > Dashboard > Disk
The Disk module on the Dashboard is based on the output of the df command.
The information displayed is the following:
Data: The percent of disk that the core firmware uses.

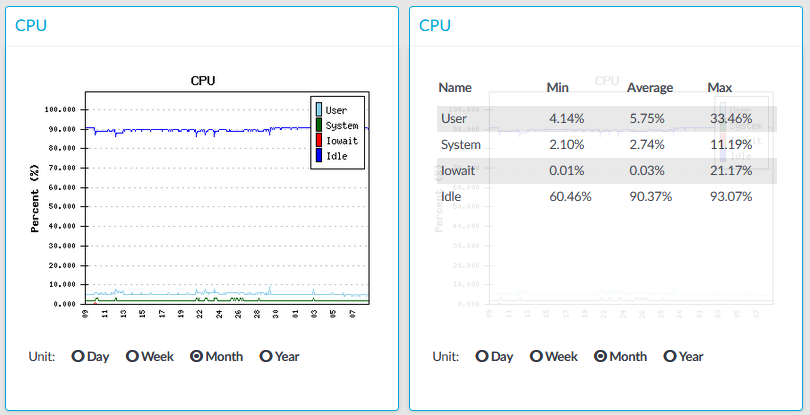

Figure 355: Basic Settings > Dashboard > CPU
The CPU module on the Dashboard is based on data provided by the Linux kernel (/proc and /sys directories). The standard Munin plugins query this information from these locations and they are displayed on the GUI.
The following details are displayed about CPU usage:
Idle: Idle time of the processors. If there are more than one processors, they all add up to x100%, for example in case of 2 processors it adds up to 200% maximum.
Iowait: Time spent receiving and handling hardware interrupts as a percentage of processor ticks. That is, waiting for IO.
System: Kernel CPU usage.
User: CPU usage of everything other than kernel.

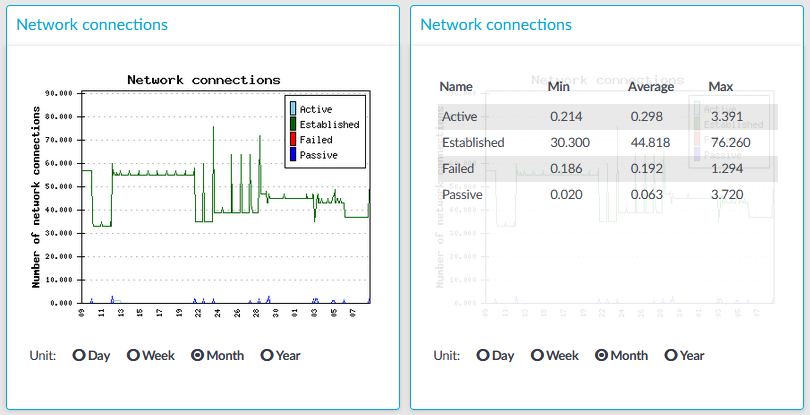

Figure 356: Basic Settings > Dashboard > Network connections
The Network connetion module on the Dashboard is based on the output of the netstat -s command. This command generates statistical information from all interfaces of all TCP connections. This means that in addition to the high-level proxy-service protocols (SSH, RDP, VNC, ICA, and so on), but all types of TCP connections are counted as well. The standard Munin plugins query this information and then it is displayed on the GUI. The graph itself displays the TCP activity of all network interfaces combined.
The connection types displayed can be the following:
Active: The number of active TCP openings per second.
Established: The number of currently open connections.
Failed: The number of failed TCP connection attempts per second.
Passive: The number of passive TCP openings per second.
Resets: The number of TCP connection resets.
The Min, Average and Max values are displayed as a whole number if the value is constant for the statistics interval (the statistics are stored every 5 minutes). If minor changes occur in the actual values (for example, new connections are established), these changes can be displayed as fractions.
To determine the maximum values that the system can handle, consider the following:
The type of machine that you run One Identity Safeguard for Privileged Sessions (SPS) on.
The type of connections that are established and the content of these connections. For example:
If the users of RDP or ICA connections are watching videos, that can greatly reduce the amount of parallel connections that can pass through without experiencing speed reduction.
If the users mostly generate text-based content (for example, Excel, Word), then more connections can be used.
If a connection is not used actively, then it has minimal impact on SPS: only the memory allocation remains. In case of RDP, if the RDP client window is minimized, there is no network traffic at all.
