The following describes how to configure One Identity Safeguard for Privileged Sessions (SPS) to retrieve the credentials used to login to the target host using a custom plugin.
Prerequisites
-
To use a custom Credential Store plugin, you have to upload a working Credential Store plugin to SPS. This plugin is a script that can be used to access an external Credential Store or Password Manager. If you want to create such a custom Credential Store plugin, contact our Support Team or see Introduction in the Creating Custom Credential Store Plugins.
For more information on uploading plugins, see Uploading plugins.
NOTE: Users accessing connections that use Credential Stores to authenticate on the target server must authenticate on SPS using gateway authentication. Therefore, gateway authentication must be configured for these connections. For details, see Configuring gateway authentication.
-
Verify the integrity of the plugin.
For more information on verifying the integrity of plugins, see Verifying the integrity of a plugin.
To configure SPS to retrieve the credentials used to login to the target host using a custom plugin
-
Navigate to Policies > Credential Stores.
-
Click
and enter a name for the Credential Store.
-
Select External Plugin, then select the plugin to use from the Plugin list.
-
If your plugin supports configuration, then you can create multiple customized configuration instances of the plugin for your site. The Configuration textbox displays the example configuration of the plugin you selected. If you wish to create a customized configuration instance of the plugin for your site, then edit the configuration here.
NOTE: Plugins created and issued before the release of SPS 5.1 do not support configuration. If you create a configuration for a plugin that does not support this, the affected connection will stop with an error message.
-
Click
.
-
Navigate to the Connection policy where you want to use the Credential Store (for example, to Traffic Controls > SSH > Connections), select the Credential Store configuration instance to use in the Credential Store field, then click .
One Identity Safeguard for Privileged Sessions (SPS) provides a plugin framework to integrate SPS to external systems to authenticate or authorize the user before authenticating on the target server. Such plugins can also be used to request additional information from the users, for example, to perform multi-factor authentication.
You can use an Authentication and Authorization plugin (AA plugin) in the following protocols:
-
MSSQL
-
Remote Desktop (RDP)
-
Secure Shell (SSH)
-
TELNET
To request a plugin that interoperates with your authentication or authorization system, contact our Support Team.
For details on configuring SPS to use a plugin, see Using a custom Authentication and Authorization plugin to authenticate on the target hosts.
Detailed information about this topic
If a Connection Policy has an Authentication and Authorization plugin (AA plugin) configured, One Identity Safeguard for Privileged Sessions (SPS) runs the plugin as the last step of the connection authorization phase. SPS can request the client to perform other types of authentication before running the plugin. Using an AA plugin in a Connection Policy is treated as gateway authentication if:
-
the plugin authenticates the user
-
authentication is successful
-
the plugin returns the gateway_user and gateway_groups elements, identifying the user it has authenticated
Other types of gateway authentication will come before authentication by the AA plugin, so information from any other type of gateway authentication (for example, the username and usergroups of this authentication) will already be available and therefore can be used by the plugin. If the Authentication and Authorization plugin does perform gateway authentication, you can use a Credential Store as well.
However, for technical reasons, the web-based gateway authentication (that is, authenticating on the SPS web interface if the Require Gatweay Authentication on the SPS Web Interface option is selected in the Connection Policy) is performed after the AA plugin, so using AA plugin and ticking Require Gateway Authentication on the SPS Web Interface at the same time is not a valid configuration.
The plugin can interactively request additional information from the client in the SSH, Telnet, and RDP protocols.
NOTE: In SPS 5.8, a user's group membership is determined by querying only the relevant groups configured for the connection from the LDAP/AD server, instead of retrieving all groups of a given user.
This may cause problems when using AD/LDAP-based gateway authentication together with an AA plugin. The AA plugin authorize() hook may be called with only a subset of groups as group membership lookup does not consider groups referenced in the AA plugin code.
Consider that only groups queried by SPS are affected. Gateway groups returned by the AA plugin authenticate() hook are passed to the authorize() hook unchanged.
SPS runs the authorize method after the authentication method and any inband gateway authentication or inband destination selection steps. As a result, the authorize method already has access to the IP address of the target server and the remote username (the username used in the server-side connection).
Optionally, the plugin can return the gateway_user and gateway_groups values. SPS will only update the gateway username and gateway groups fields in the connection database if the plugin returns the gateway_user and gateway_groups values. The returned gateway_user and gateway_groups values override any such attributes already available on SPS about the connection (that means that channel policy evaluations will be affected), so make sure that the plugin uses the original values appropriately.
If the plugin returns the gateway_user and gateway_groups values, you may have to configure an appropriate Usermapping policy in the Connection Policy. If the plugin returns a gateway_user that is different from the remote user, the connection will fail without a usermapping policy. For details on usermapping policies, see Configuring usermapping policies in the Administration Guide.
Prerequisites
- SPS supports Authentication and Authorization plugins in the RDP, SSH, and TELNET protocols.
- In RDP, using an AA plugin together with Network Level Authentication in a Connection Policy has the same limitations as using Network Level Authentication without domain membership.
- In RDP, using an AA plugin requires TLS-encrypted RDP connections. For details, see Enabling TLS-encryption for RDP connections in the Administration Guide.
The following describes how to configure One Identity Safeguard for Privileged Sessions (SPS) to use an Authentication and Authorization plugin (AA plugin) before accessing the target host.
Prerequisites
-
To use a custom plugin, you need to upload a working AA plugin to SPS. This plugin is a script that uses the SPS API to access an external system. If you want to create such a plugin, contact our Support Team for details and instructions or see Creating Custom Authentication and Authorization Plugins.
For more information on uploading plugins, see Uploading plugins.
-
Verify the integrity of the plugin.
For more information on verifying the integrity of plugins, see Verifying the integrity of a plugin.
-
SPS supports AA plugins in the MSSQL, RDP, SSH, and Telnet protocols.
-
In RDP, using an AA plugin together with Network Level Authentication in a Connection Policy has the same limitations as using Network Level Authentication without domain membership.
-
In RDP, using an AA plugin requires TLS-encrypted RDP connections. For details, see Enabling TLS-encryption for RDP connections in the Administration Guide.
To configure SPS to use an Authentication and Authorization plugin before accessing the target host
-
If your plugin supports configuration, then you can create multiple customized configuration instances of the plugin for your site. Create an instance by completing the following steps:
-
Navigate to Policies > AA Plugin Configurations. Select the plugin to use from the Plugin list.
-
The Configuration textbox displays the example configuration of the plugin you selected. You can edit the configuration here if you wish to create a customized instance of the plugin.
NOTE: Plugins created and issued before the release of SPS 5.1 do not support configuration. If you create a configuration for a plugin that does not support this, the affected connection will stop with an error message.

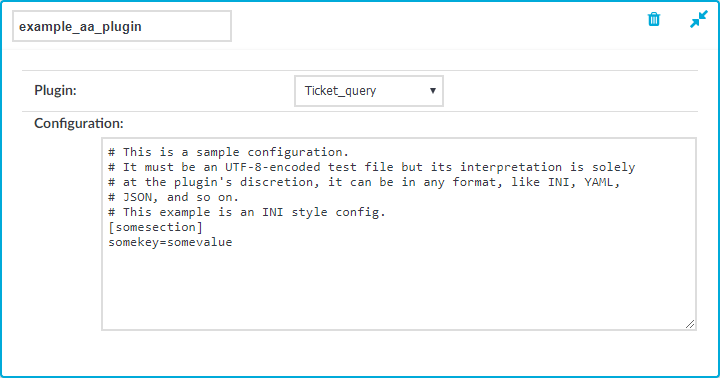

Figure 311: Policies > AA Plugin Configurations — Creating a customized plugin configuration instance
-
Navigate to the Connection policy where you want to use the plugin (for example, to Traffic Controls > RDP > Connections), select the plugin configuration instance to use in the AA plugin field, then click .
-
If the plugin sets or overrides the gateway username of the connection, configure a Usermapping policy and use it in the Connection policy. For details, see Configuring usermapping policies in the Administration Guide.
-
Verify that the configuration works properly: try to establish a test connection. For details, see Performing authentication with AA plugin in Remote Desktop connections in the Administration Guide. If the plugin is configured to store any metadata about the connection, these data will be available in the Additional metadata field of the SPS Search interface.
