The following describes how to prevent disk space from filling up.
NOTE: One Identity highly recommends this if One Identity Safeguard for Privileged Sessions (SPS) is hosted in a virtual environment.
To prevent disk space from filling up
-
Navigate to Basic Settings > Management > Disk space fill-up prevention.

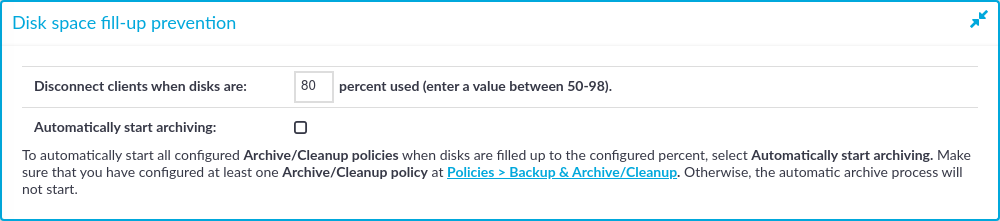

Figure 56: Basic Settings > Management > Disk space fill-up prevention — Preventing disk space fill-up
-
Enter the limit of maximum disk utilization in percents in the Disconnect clients when disks are: x percent used field. Make sure to enter a value between 50-98 percent. When disk space is used above the configured limit, SPS disconnects all clients. The default value is 80.
-
(Optional) To automatically start all configured archiving/cleanup jobs when disk usage goes over the limit, select the Automatically start archiving option.
For more information on configuring an archiving policy, see Archiving.
NOTE: If there is no archiving policy configured, selecting this option will not trigger automatic archiving.
-
Click
.
-
Navigate to Basic Settings > Alerting & Monitoring > Health monitoring and enable alert Disk utilization maximum.
-
Click .
SPS can send the following system related alerts in e-mail or as SNMP trap. To configure these alerts, see Configuring e-mail alerts and Configuring SNMP alerts.
NOTE:
Configure Disk space fill-up prevention, and configure SPS to send an alert if the free space on the disks of SPS is low. For details, see Preventing disk space fill-up in the Administration Guide.
Configure SPS to send an alert if a user fails to login to SPS. For details, see the Login failed alert in System related traps in the Administration Guide.

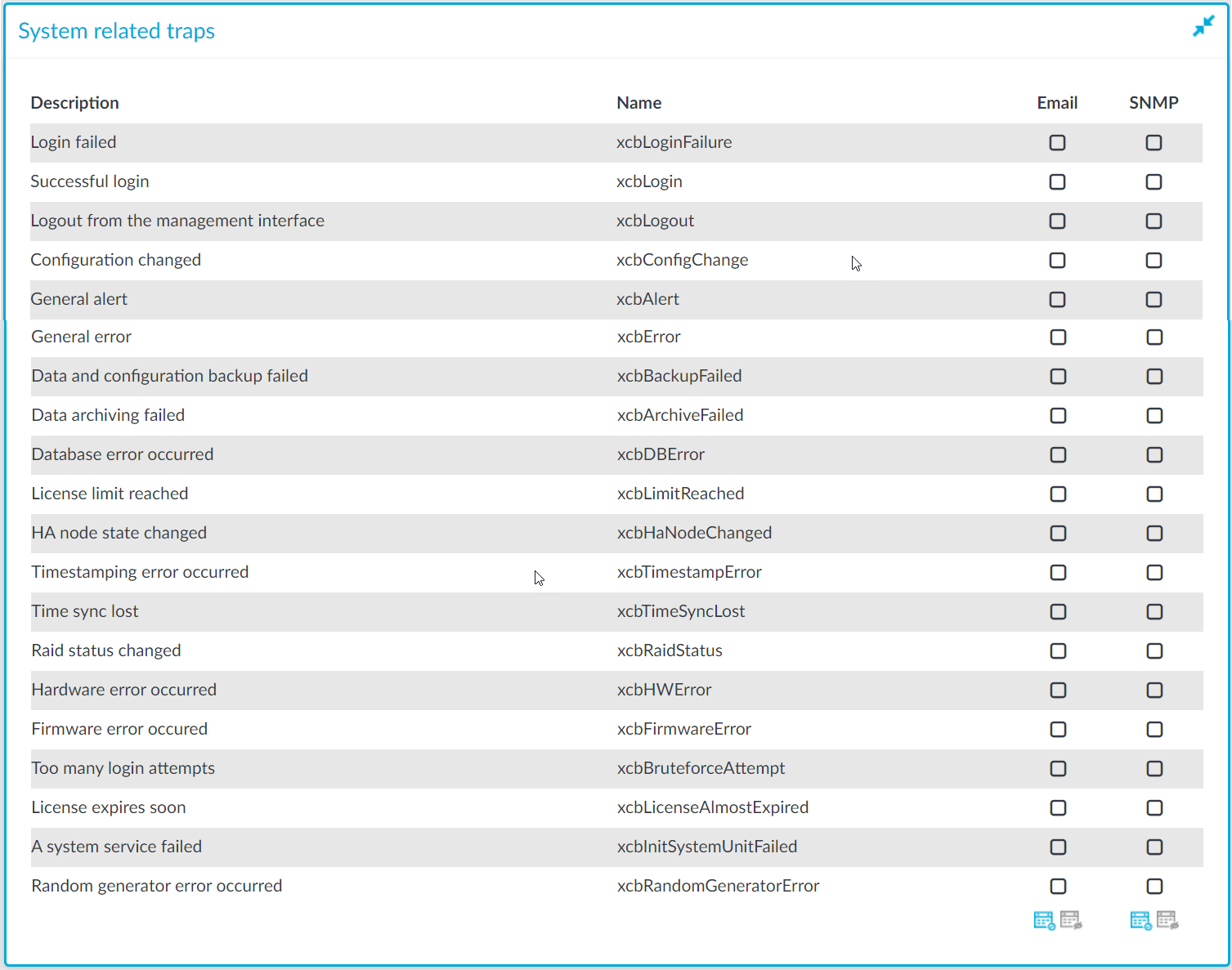

Figure 57: Basic Settings > Alerting & Monitoring — health monitoring
Table 1: System related traps
| Login failed |
xcbLoginFailure |
Failed login attempts from SPS web interface. |
| Successful login |
xcbLogin |
Successful login attempts into SPS web interface. |
| Logout from the management interface |
xcbLogout |
Logouts from SPS web interface. |
| Configuration changed |
xcbConfigChange |
Any modification of SPS's configuration. |
| General alert |
xcbAlert |
General alerts and error messages occurring on SPS.
Note that alerts on general alerts and errors are sent whenever there is an alert or error level message in the SPS system log. These messages are very verbose and mainly useful only for debugging purposes.
Enabling these alerts may result in multiple e-mails or SNMP traps sent about the same event.
|
| General error |
xcbError |
| Data and configuration backup failed |
xcbBackupFailed |
Alerts if the backup procedure is unsuccessful. |
| Data archiving failed |
xcbArchiveFailed |
Alerts if the archiving procedure is unsuccessful. |
| Database error occurred |
xcbDBError |
An error occurred in the database where SPS stores the connection metadata. For assistance, contact our Support Team. |
| License limit reached |
xcbLimitReached |
The number of protected servers (or concurrent sessions) reached the limit set in the SPS license. Clients cannot connect to new servers using SPS. |
| HA node state changed |
xcbHaNodeChanged |
A node of the SPS cluster changed its state (for example, a takeover occurred). |
| Timestamping error occurred |
xcbTimestampError |
An error occurred during the timestaming process (for example, the timestamping server did not respond). |
| Time sync lost |
xcbTimeSyncLost |
The system time became out of sync. |
| Raid status changed |
xcbRaidStatus |
The status of the node's RAID device changed its state. |
| Hardware error occurred |
xcbHWError |
SPS detected a hardware error. |
| Firmware error occured |
xcbFirmwareError |
SPS detected a firmware error, which can be as follows:
- Corrupted: The firmware integrity check failed. If a firmware is shown as corrupted, contact our Support Team.
- Tainted: It indicates that you have modified a file of the firmware locally. If you have modified a local file unintentionally, contact our Support Team.
|
| Too many login attempts |
xcbBruteforceAttempt |
SPS has detected a possible brute-force attack. |
| License expires soon |
xcbLicenseAlmostExpired |
Your SPS license will expire within 60 days. |
| A system service failed |
xcbInitSystemUnitFailed |
A system service has failed.
Note that one alert is sent for each failed service. |
| Random generator error occurred |
xcbRandomGeneratorError |
The random generator repeatedly created the same byte sequence. To fix this issue, you can restart your SPS. If the error persists, contact our Support Team. |
SPS can send the following traffic related alerts in e-mail or as SNMP trap. To configure these alerts, see Configuring e-mail alerts and Configuring SNMP alerts.

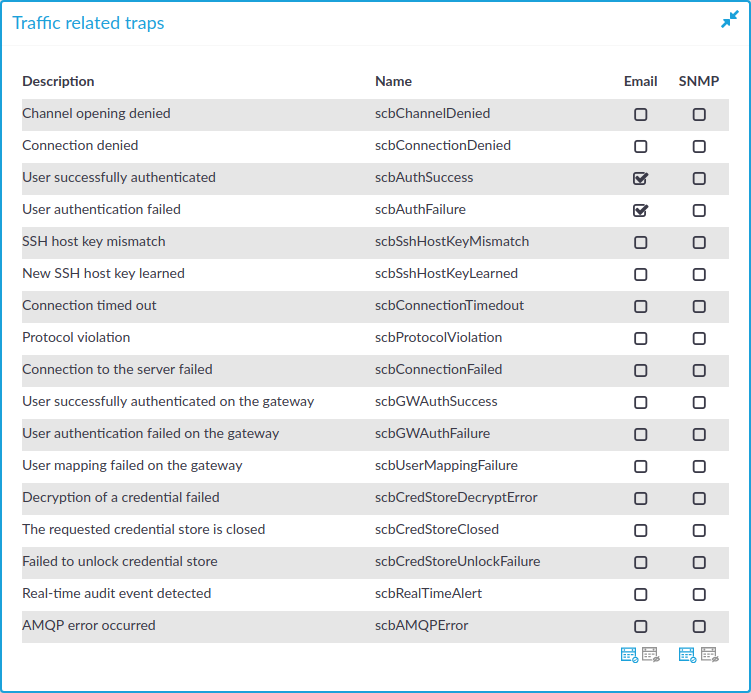

Figure 58: Basic Settings > Alerting & Monitoring — health monitoring
Table 2: Traffic related traps
| Channel opening denied |
scbChannelDenied |
A user attempted to open a channel not permitted by the channel policy. |
| Connection denied |
scbConnectionDenied |
A user attempted to connect a server not permitted in the connection policies. |
| User successfully authenticated |
scbAuthSuccess |
A user successfully authenticated on a protected server. |
| User authentication failed |
scbAuthFailure |
A user failed to complete the authentication on a protected server. |
| SSH host key mismatch |
scbSshHostKeyMismatch |
The SSH host key of a server did not match the key stored on SPS. |
| New SSH host key learned |
scbHostKeyLearned |
SPS learned a new SSH host key. |
| Connection timed out |
scbConnectionTimedout |
A connection to a protected server timed out. |
| Protocol violation |
scbProtocolViolation |
A connection violated the protocol as specified in the RFC or protocol documentation. This may have been caused by an incompatible application or a deliberate attack. |
| Connection to the server failed |
scbConnectionFailed |
A connection to a protected server failed. |
| User successfully authenticated on the gateway |
scbGWAuthSuccess |
A user has successfully authenticated a connection on SPS as part of a gateway-authentication process. |
| User authentication failed on the gateway |
scbGWAuthFailure |
The gateway-authentication of a connection has failed. |
| User mapping failed on the gateway |
scbUserMappingFailure |
A usermapping policy did not find a suitable mapping for the connection. |
| Decryption of a credential store failed |
scbCredStoreDecrpytError |
SPS could not unlock a password-protected Credential Store. Navigate to User menu > Unlock Credential Store and enter the password(s) to open the Credential Store. |
| The requested credential store is closed |
scbCredStoreClosed |
A user attempted to access a connection policy that uses a password-protected Credential Store, and the Credential Store has not been unlocked. Navigate to User menu > Unlock Credential Store and enter the password(s) to open the Credential Store. |
| Failed to unlock credential store |
scbCredStoreUnlockFailure |
A user attempted to unlock a password-protected Credential Store with an incorrect password. Navigate to User menu > Unlock Credential Store and enter the correct password(s) to open the Credential Store. |
| Real time audit event detected |
scbRealTimeAlert |
A real-time audit event has occurred. |
| AMQP error occurred |
scbAMQPError |
An error occurred in the event queue where SPS forwards session data. contact our Support Team. |
Backups create a snapshot of the configuration of One Identity Safeguard for Privileged Sessions (SPS) or the data which can be used for recovery in case of errors. SPS can create automatic backups of its configuration and the stored audit-trails to a remote server.
Configuring backups is a two-step process:
-
Create a backup policy.
-
Assign that policy to the system or a connection — depending on what it is that you wish to back up, SPS's configuration or a connection.
Creating a backup policy
Backup policies define the address of the backup server, which protocol to use to access it, and other parameters. SPS can be configured to use the Rsync, SMB/CIFS, and NFS protocols to access the backup server:
The different backup protocols assign different file ownerships to the files saved on the backup server. The owners of the backup files created using the different protocols are the following:
-
Rsync: The user provided on the web interface.
-
SMB/CIFS: The user provided on the web interface.
-
NFS: root with no-root-squash, nobody otherwise.
|
|
Caution:
SPS cannot modify the ownership of a file that already exists on the remote server. If you change the backup protocol but you use the same directory of the remote server to store the backups, make sure to adjust the ownership of the existing files according to the new protocol. Otherwise SPS cannot overwrite the files and the backup procedure fails. |
Assigning a backup policy
Once you have configured a backup policy, set it as a system backup policy (for configuration backups) or data backup policy (for connections backups):
