Managing room mailboxes

Room mailbox is a type of Exchange Online resource mailbox assigned to a physical location, such as a meeting room. Using room mailboxes that an administrator creates, users can reserve rooms by adding room mailboxes to meeting requests as an attendee or location.

In the Active Roles Web Interface, you can create, manage or delete room mailboxes in Directory Management > Tree> Azure > Resource Mailboxes. Room mailboxes created in the Active Roles Web Interface are synchronized to the Exchange admin center (admin.exchange.microsoft.com), where you can find them in Home > Resources.

For more information about room mailboxes, see Manage resource mailboxes in Exchange Online in the Microsoft Exchange Online documentation.

Creating a new room mailbox

To create a new room mailbox in the Active Roles Web Interface, follow the steps.

To create a new room mailbox

  1. In the Active Roles Web Interface, navigate to Directory Management > Tree> Azure > Resource Mailboxes.

    The list of resource mailboxes of the selected tenant is displayed.

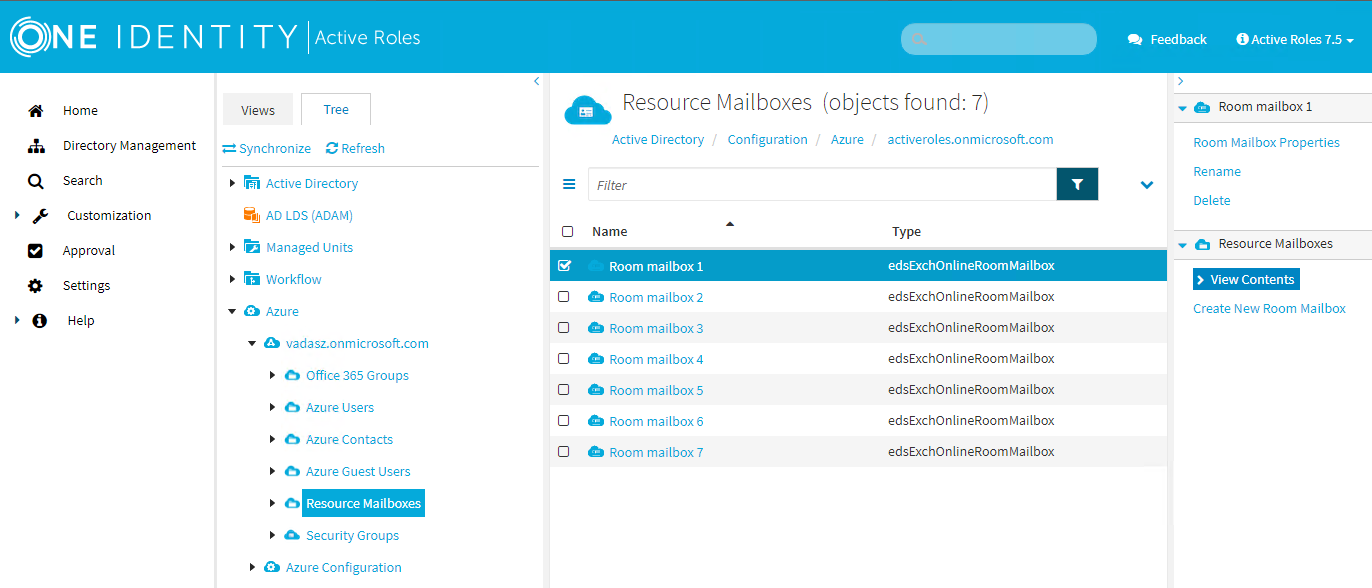

    Figure 244: Directory Management > Tree View > Azure > Resource Mailboxes — Listing the resource mailboxes in the tenant

  2. In the right pane, click Create New Room Mailbox.

    The Create New Room Mailbox window opens.

  3. On the General tab, set the following general details of the room:

    • (Optional) Display name

    • Name: Enter a name for the room.

      NOTE: If you enter a name that is already used, you will receive an error message and Exchange Online will not allow you creating the new room mailbox. To create a new room mailbox, enter a different name.

      NOTE: To change the name of an existing room mailbox:

      1. In the right pane, click Rename.

      2. Display name: Enter a new display name for the room.

      3. Name: Enter a new name for the room.

      4. Click Finish.

    • (Optional) Primary SMTP Address (leave blank for default value)

      To specify the domain, use the drop-down.

      The default value of the Primary SMTP Address is the name and the domain name of the room mailbox. For example, roommailbox1@activeroles.onmicrosoft.com, where roommailbox1 is the name and activeroles.onmicrosoft.com is the domain name.

    • (Optional) Capacity

    • (Optional) Hide from global address lists

      Select this check box if you do not want the room mailbox to appear in the address book and other address lists defined in your Exchange organization.

      By default, this check box is not selected.

  4. (Optional) On the Calendar Processing tab, set the following optional details of the room:

    • Maximum duration (hours)

    • Booking window (days)

    • Allow repeating meetings

      By default, this check box is selected.

    • Allow scheduling only during work hours

      By default, this check box is selected.

  5. (Optional) On the Location tab, set the following optional details of the company:

    • Department

    • Company Name

    • Street Address

    • City

    • State or Province

    • Zip or Postal Code

    • Country: You must enter a valid country code or country name, for example: US or United States of America (the).

  6. Click Finish.

If the operation is successful, the newly-created room mailbox appears in the list of Resource Mailboxes.

The newly-created room mailbox also appears in the Exchange admin center, in Home > Resources.

Viewing or modifying a room mailbox

To view or modify the properties of a room mailbox in the Active Roles Web Interface, follow the steps.

To view or modify the properties of a room mailbox

  1. In the Active Roles Web Interface, navigate to Directory Management > Tree> Azure > Resource Mailboxes.

    The list of resource mailboxes of the selected tenant is displayed.

    Figure 245: Directory Management > Tree View > Azure > Resource Mailboxes — Listing the resource mailboxes in the tenant

  2. Select the room mailbox you want to view or modify.

    In the right pane, the name of the room mailbox appears with the following available actions:

    • Room Mailbox Properties

    • Rename

    • Delete

  3. In the right pane, click Room Mailbox Properties.

    The Room Mailbox Properties window opens.

  4. On the General tab, view or modify the following general details of the room:

    • Display name

      NOTE: To change the name of an existing room mailbox:

      1. In the right pane, click Rename.

      2. Display name: Enter a new display name for the room.

      3. Name: Enter a new name for the room.

      4. Click Finish.

    • Object GUID: The Exchange Online GUID of the mailbox object in the Exchange Cloud. By default, this check box is not selected.

    • External directory ID: The Azure Active Directory (Azure AD) object of the user object connected to the mailbox object in Azure AD. You cannot modify this value because it is filled automatically.

    • User Principal Name: The room mailbox address in User Principal Name (UPN) format. By default, this check box is not selected.

    • Primary SMTP Address: By default, this check box is not selected.

    • Capacity

    • Hide from global address lists

      Select this check box if you do not want the room mailbox to appear in the address book and other address lists defined in your Exchange organization.

      By default, this check box is not selected.

  5. On the Calendar Processing tab, view or modify the following optional details of the room:

    • Maximum duration (hours)

    • Booking window (days)

    • Allow repeating meetings

      By default, this check box is selected.

    • Allow scheduling only during work hours

      By default, this check box is selected.

  6. On the Location tab, view or modify the following optional details of the company:

    • Department

    • Company Name

    • Street Address

    • City

    • State or Province

    • Zip or Postal Code

    • Country: You must enter a valid country code or country name, for example: US or United States of America (the).

  7. To close the Room Mailbox Properties window:

    1. To update the properties of the room mailbox, click Save.

    2. To close the window without saving the changes, click Cancel.

Deleting a room mailbox

To delete a room mailbox in the Active Roles Web Interface, follow the steps.

To delete a room mailbox

  1. In the Active Roles Web Interface, navigate to Directory Management > Tree> Azure > Resource Mailboxes.

    The list of resource mailboxes of the selected tenant is displayed.

    Figure 246: Directory Management > Tree View > Azure > Resource Mailboxes — Listing the resource mailboxes in the tenant

  2. Select the room mailbox that you want to delete.

    In the right pane, the name of the room mailbox appears with the following available actions:

    • Room Mailbox Properties

    • Rename

    • Delete

  3. Click Delete.

    The following dialog appears:

    Are you sure you want to delete <room mailbox>?
  4. Click Yes.

If the operation has been successful, the room mailbox is deleted and it disappears both from the Resource Mailboxes list in the Active Roles Web Interface, and from the Resources list in the Exchange admin center.
